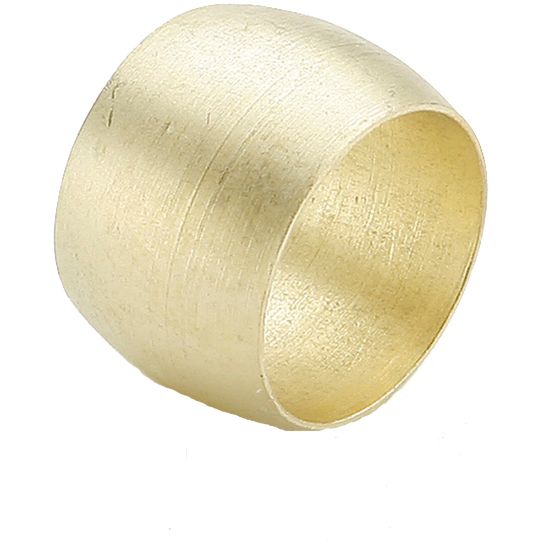

Parker 60AB-4 - Air Brake D.O.T. compression style fittings, AB

Name: Parker 60AB-4 - Air Brake D.O.T. compression style fittings, AB
SKU: 60AB-4
Price: 0.61 USD
Availability: InStock

Parker's air brake AB fittings are economical compression style fittings for copper air brake lines. AB fittings meet the functional requirements of SAE J246 and the performance requirements of D.O.T. FMVSS571.106.

Availability:

149 In Stock

Jacksonville, FL	101
Norfolk, VA	34
Johnson City, TN	6
Knoxville, TN	5
Ashland, VA	3

Partner Available:

201 In Stock

Brand Parker

Part No. 60AB-4

$0.61

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Specifications Met	DOT FMVSS 571.106, SAE J246
Nut Material	Brass	Application	Air Brake
Minimum Operating Temperature	-65 °F	Maximum Operating Pressure	400 psi
Sleeve Material	Brass	Thread Sealant Material	Vibra-Seal 516
Tube Material	Annealed Copper	Division	Fluid System Connectors Division
Body Material	Brass	Maximum Operating Temperature	250 °F
Style	Tube	Connection 2 Tube O.D. (inch)	na
Connection 2 Thread Size (inch)	na	Connection 2 Style	na
Connection 1 Tube O.D. (inch)	1/4	Connection 1 Style	Compression
Shape	Sleeve
