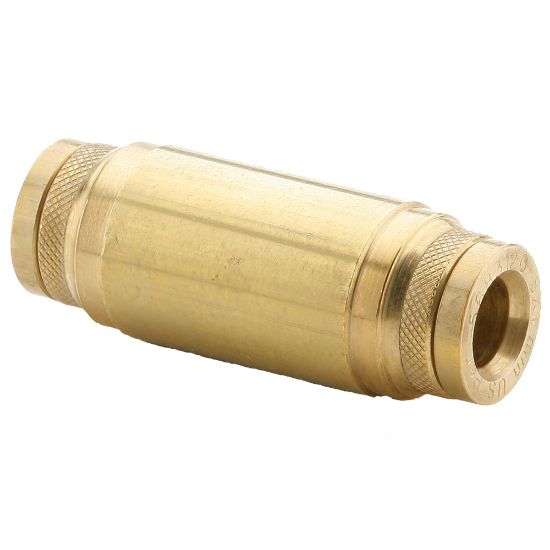

Parker HPMTB8 - Brass Prestomatic Push to Connect DOT Fittings

Parker's Metric Prestomatic brass fittings meet SAE and DOT specifications.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. HPMTB8

$56.61

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Tube Material	Stainless Steel
Connection 1 Type	Push-to-Connect	Connection 2 Size	8 mm Tube O.D.
Maximum Operating Pressure	250 psi	Division	Fluid System Connectors Division
Connection 2 Type	Push-to-Connect	Shape	Union
Maximum Operating Temperature	93 °C	Connection 1 Size	n/a
Connection 3 Size	N/A	Seal Material	Buna N (O-Ring)
Specifications Met	DIN 74324	Brand	Parker
Division	Fluid System Connectors Division	Application	Accessories
Technology	Fluid & Gas Handling	Materials of Construction	Brass (Collet)
Minimum Operating Temperature	-40 °C	Configuration	Tube to Tube
Body Material	Brass	Connection 3 Type	N/A
Product Style	Tube to Tube	Shape	Union
Connection 1 Size	8 mm	Connection 2 Type	Push-to-Connect
Connection 2 Size	8 mm	Connection 3 Size	N/A
Connection 1 Type	Push-to-Connect

Product resources

Compliance, Certifications & Safety

Literature and Reference Materials

Compliance, Certifications & Safety, Literature and Reference Materials

FSC REACH Product Declaration (PDF)
