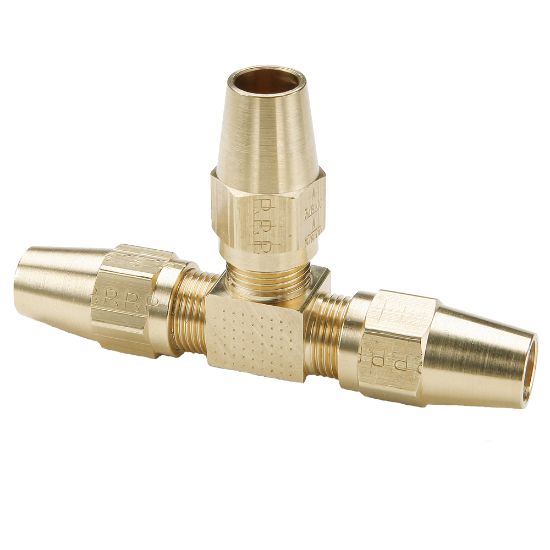

Parker 264AB-4 - Air Brake D.O.T. compression style fittings, AB

Name: Parker 264AB-4 - Air Brake D.O.T. compression style fittings, AB
SKU: 264AB-4
Price: 23.80 USD
Availability: InStock

Parker's air brake AB fittings are economical compression style fittings for copper air brake lines. AB fittings meet the functional requirements of SAE J246 and the performance requirements of D.O.T. FMVSS571.106.

AFP Availability:

9 In Stock

Richmond, VA

Partner Available:

19 In Stock

Quantities sourced from Partner Network may incur an upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

Brand Parker

Part No. 264AB-4

$23.80/each

Qty:

Products specifications

Attribute name	Attribute value
Division	Fluid System Connectors Division	Thread Sealant Material	Vibra-Seal 516
Nut Material	Brass	Maximum Operating Temperature	250 °F
Application	Air Brake	Sleeve Material	Brass
Body Material	Brass	Minimum Operating Temperature	-53 °C
Maximum Operating Pressure	27 bar	Tube Material	Annealed Copper
Specifications Met	DOT FMVSS 571.106, SAE J246	Shape	Tee
Connection 2 Thread Size (inch)	na	Connection 1 Style	Compression
Style	Tube to Tube	Connection 2 Style	Compression
Connection 1 Tube O.D. (inch)	1/4	Connection 2 Tube O.D. (inch)	1/4
