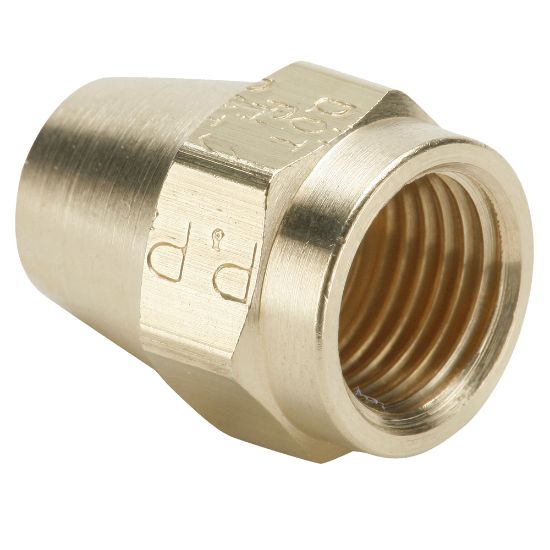

Parker 61AB-10 - Air Brake D.O.T. compression style fittings, AB

Name: Parker 61AB-10 - Air Brake D.O.T. compression style fittings, AB
SKU: 61AB-10
Price: 9.92 USD
Availability: InStock

Parker's air brake AB fittings are economical compression style fittings for copper air brake lines. AB fittings meet the functional requirements of SAE J246 and the performance requirements of D.O.T. FMVSS571.106.

AFP Availability:

33 In Stock

West Knoxville, TN	13
North Chesterfield, VA	8
Sumter, SC	8
Richmond, VA	2 (Pickup only)
Ashland, VA	1 (Pickup only)
Johnson City, TN	1 (Pickup only)

Partner Available:

102 In Stock

Quantities sourced from Partner Network may incur an upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

Brand Parker

Part No. 61AB-10

$9.92/each

Qty:

Products specifications

Attribute name	Attribute value
UOM	EA	Thread Sealant Material	Vibra-Seal 516
Maximum Operating Pressure	400 psi	Maximum Operating Temperature	250 °F
Division	Fluid System Connectors Division	Body Material	Brass
Nut Material	Brass	Specifications Met	DOT FMVSS 571.106, SAE J246
Tube Material	Annealed Copper	Sleeve Material	Brass
Minimum Operating Temperature	-53 °C	Application	Air Brake
Connection 2 Style	na	Connection 2 Thread Size (inch)	na
Shape	Nut	Connection 1 Tube O.D. (inch)	5/8
Connection 2 Tube O.D. (inch)	na	Connection 1 Style	Compression
Style	Tube
