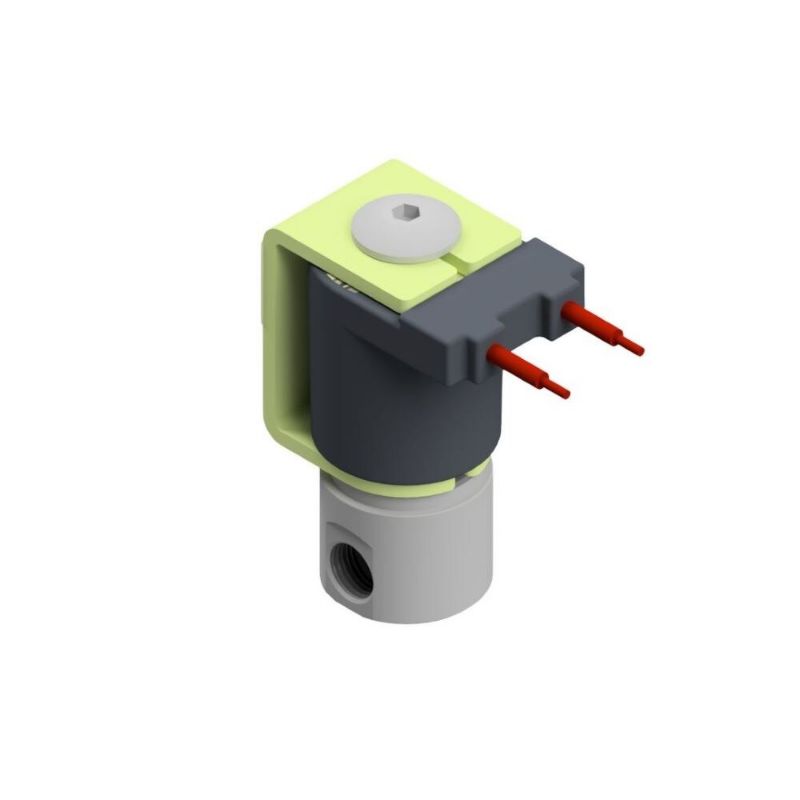

Parker 20CC02PV4L2E - G4 Series Miniature Solenoid Valves

2-Way and 3-Way miniature solenoid valves for industrial and commerical equipment available in both round-body and cartridge-mount variants

AFP Availability:	Quote Required
Partner Available:	21 In Stock

Brand Parker

Part No. 20CC02PV4L2E

$92.26/each

Products specifications

Attribute name	Attribute value
UOM	EA	Input Voltage	24/60
Minimum Pressure Differential	0 psi	Port Size	1/8 inch
Main Flow Coefficient	0.32 Cv	Body Material	Stainless Steel 303
Power Consumption	8.5 W	Installation	IOM 204
Seal Material	FKM	Actuation Type	Direct Acting
Port Type	NPT	Orifice Size	1/8 inch
Maximum Fluid Temperature	240 °F	Specifications Met	CE
Maximum Pressure Differential	175 psi	Function	Normally Closed (NC)
Valve Type	2-Way	Configuration	All Ports in Body
Preventive Maintenance Kit	4R001	Media	General Purpose
Maximum Ambient Temperature	135 °F	Division	Fluid Control Division
Coil Type	Open Frame, 18" Leads	Insulation Class	F (155°C)
