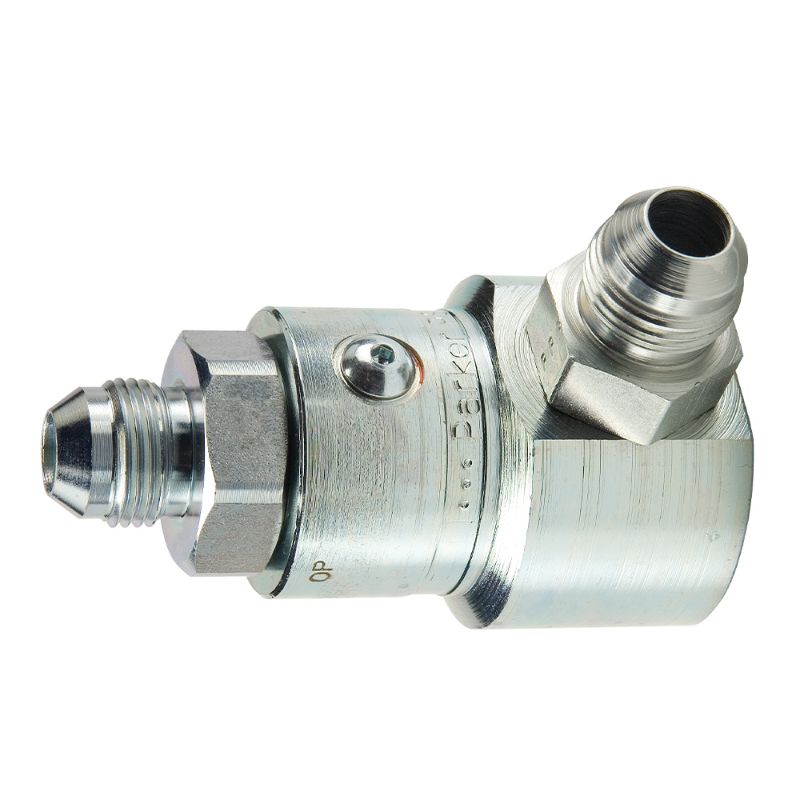

Parker PS890303-8-8 - High Pressure, Inline Hydraulic Swivels - PS Series

Parker's swivels are designed to eliminate hose twist and torque that may contribute to premature hose failure.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. PS890303-8-8

$182.27

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Plating Type	Zinc with clear trivalent chromate
Maximum Operating Temperature	250 °F	Body Material	Steel
Configuration	90 degree	Division	Quick Coupling Division
Minimum Operating Temperature	-40 °F	Housing Connection Style	Male JIC 37 degree
Housing Connection Thread Size (inch)	3/4 - 16 UNF	Shaft Connection Style	Male JIC 37 degree
Seal Material	Nitrile	Maximum Working Pressure (psi)	5000
Shaft Connection Thread Size (inch)	3/4 - 16 UNF	Body Size (inch)	1/2
Configuration	90 degree
