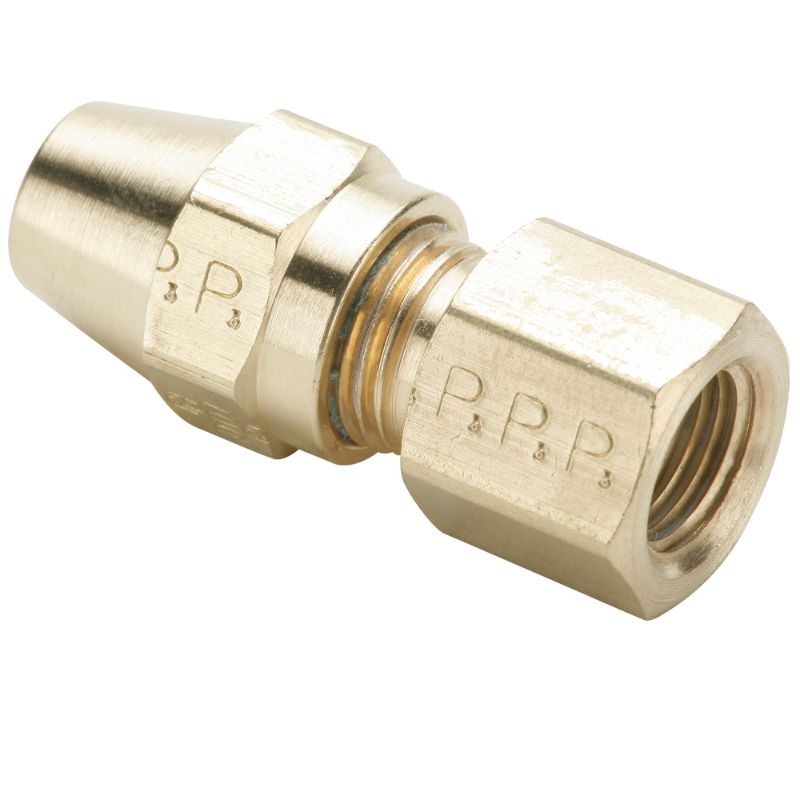

Parker 66AB-10-8 - Air Brake D.O.T. compression style fittings, AB

Parker's air brake AB fittings are economical compression style fittings for copper air brake lines. AB fittings meet the functional requirements of SAE J246 and the performance requirements of D.O.T. FMVSS571.106.

AFP Availability:	Quote Required
Partner Available:	5 In Stock

Brand Parker

Part No. 66AB-10-8

$55.04/each

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Operating Pressure	27 bar
Maximum Operating Temperature	121 °C	Division	Fluid System Connectors Division
Thread Sealant Material	Vibra-Seal 516	Body Material	Brass
Nut Material	Brass	Sleeve Material	Brass
Specifications Met	DOT FMVSS 571.106, SAE J246	Tube Material	Annealed Copper
Application	Air Brake	Minimum Operating Temperature	-65 °F
Connection 1 Tube O.D. (inch)	5/8	Connection 2 Tube O.D. (inch)	na
Shape	Connector	Connection 1 Style	Compression
Connection 2 Thread Size (inch)	1/2	Connection 2 Style	Female Pipe
Style	Tube to Female Pipe
