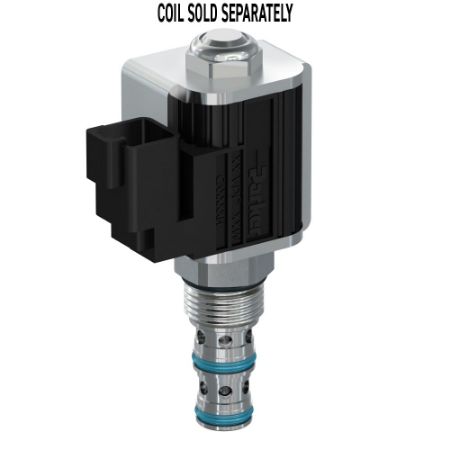

3 Way Solenoid Valves for High Pressure Hydraulic Applications
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker’s direct acting 3-way, 2-position spool-type solenoid valves feature a proven design that ensures reliable and predictable performance with low pressure drop and minimal hysteresis. These valves can operate with hydraulic system flows as high as 57 lpm (15 gpm) and pressures up to 350 bar (5000 psi) with normally-open, normally closed, or selector configurations available. Parker’s 3-way, 2-position spool-type solenoid valves are ideal for switching or unloading applications that don’t necessarily require low poppet style leakage, but instead easy solenoid driven directional controls. These valves can be used on a wide range of machinery within the mobile, industrial, or manufacturing markets.
Markets:
• Aerial
• Agriculture
• Construction
• Material Handling
• Miscellaneous Industrial
• Miscellaneous Manufacturing
• Miscellaneous Mobile
Features/Benefits:
• Replaceable one-piece coils with low amp draw
• High flow capacity
• Manual override options
• Standard bodies and cavities
• No dynamic seals
• Low hysteresis
• All external parts zinc plated
Applications:
• Switching applications
• Unloading applications
• Diverter applications
Additional Technical Insight:
Direct acting spool valves are fast to respond to coil voltage and will allow flow passage between 2 ports while blocking the remaining port. Some leakage will be present due to spool clearances.
Read More...Markets:
• Aerial
• Agriculture
• Construction
• Material Handling
• Miscellaneous Industrial
• Miscellaneous Manufacturing
• Miscellaneous Mobile
Features/Benefits:
• Replaceable one-piece coils with low amp draw
• High flow capacity
• Manual override options
• Standard bodies and cavities
• No dynamic seals
• Low hysteresis
• All external parts zinc plated
Applications:
• Switching applications
• Unloading applications
• Diverter applications
Additional Technical Insight:
Direct acting spool valves are fast to respond to coil voltage and will allow flow passage between 2 ports while blocking the remaining port. Some leakage will be present due to spool clearances.
| Action | Part No. | Availability | Partner Available | Price | UOM | Maximum Operating Pressure | Seal Material | Body Material | Division | Maximum Kinematic Viscosity | Installation Torque | Function | Minimum Operating Temperature | Coil Nut Tightening Torque | Cavity Size | Maximum Inlet Pressure Rating | Maximum Operating Temperature | Actuation Type | For Fluid Type | Operation Type | Valve Material | Operating Temperature | Filter Efficiency Rating | Mounting Type | Weight | Maximum Flow Rate | Coil Type | Flow Rate | Leak Rate | Configuration | Input Voltage | Response Time | Override Functionality | Flow Direction | Seal Material | Maximum Inlet Pressure Rating | Actuation Type | Flow Rate | Configuration | Flow Direction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DS163 | Quote Required | $228.38 | EA | 3000 psi | Nitrile | n/a | Hydraulic Systems Division | 45-2000 SSU (6 to 420 cSt) | 54 Nm | 3-Way | -34 °C | 4.1 Nm | C16-3 | 210 bar | +250 °F | Electrical, Manual | Mineral-based or synthetic hydraulic fluids | Solenoid operated, Manually operated | All parts steel. All operating parts hardened steel | -30 to +250 °F | ISO 4406 18/16/13, SAE Class 4 | Screw in cartridge valve | 0.59 kg | 49.2 L/min | 1" DS Coil | 11, 12, 13 Gal/min | 82 @ 3000 PSI (210 BAR) cm3/min | Normally Closed, Normally Open, Selector | 85% of rated voltage at 72°F (20°C) min | 90-100 ms | Push Type | 2-1 De-energized, 3-1 Energized | Nitrile | 3000 PSI, 210 BAR | Electrical, Manual | 11, 12, 13 GAL/MIN, 41.6, 45.4, 49.2 L/MIN | Normally Closed, Normally Open, Selector | 2-1 De-energized, 3-1 Energized | ||
| DS163B | 1 Limited Stock | 37 In Stock | $228.38 | EA | 3000 psi | Nitrile | n/a | Hydraulic Systems Division | 45-2000 SSU (6 to 420 cSt) | 40 lb-ft | 3-Way | -34 °C | 4.1 Nm | C16-3 | 3000 psi | +121 °C | Electrical, Manual | Mineral-based or synthetic hydraulic fluids | Solenoid operated, Manually operated | All parts steel. All operating parts hardened steel | -30 to +250 °F | ISO 4406 18/16/13, SAE Class 4 | Screw in cartridge valve | 0.59 kg | 15 Gal/min | 1" DS Coil | 26.5, 53, 56.8 L/min | 82 @ 3000 PSI (210 BAR) cm3/min | Normally Closed, Normally Open, Selector | 85% of rated voltage at 72°F (20°C) min | 90-100 ms | Push Type | 2-1 De-energized, 2-3 Energized | Nitrile | 3000 PSI, 210 BAR | Electrical, Manual | 7, 14, 15 GAL/MIN, 26.5, 53, 56.8 L/MIN | Normally Closed, Normally Open, Selector | 2-1 De-energized, 2-3 Energized | |
| DS163BV | Quote Required | $237.19 | EA | 3000 psi | Fluorocarbon | n/a | Hydraulic Systems Division | 45-2000 SSU (6 to 420 cSt) | 54 Nm | 3-Way | -26 °C | 3 lb-ft | C16-3 | 3000 psi | +204 °C | Electrical, Manual | Mineral-based or synthetic hydraulic fluids | Solenoid operated, Manually operated | All parts steel. All operating parts hardened steel | -26 to +204 °C | ISO 4406 18/16/13, SAE Class 4 | Screw in cartridge valve | 1.3 lb | 15 Gal/min | 1" DS Coil | 26.5, 53, 56.8 L/min | 82 @ 3000 PSI (210 BAR) cm3/min | Normally Closed, Normally Open, Selector | 85% of rated voltage at 72°F (20°C) min | 90-100 ms | Push Type | 2-1 De-energized, 2-3 Energized | Fluorocarbon | 3000 PSI, 210 BAR | Electrical, Manual | 7, 14, 15 GAL/MIN, 26.5, 53, 56.8 L/MIN | Normally Closed, Normally Open, Selector | 2-1 De-energized, 2-3 Energized | ||
| DS163V | Quote Required | TBD | 210 bar | Fluorocarbon | n/a | Hydraulic Systems Division | 45-2000 SSU (6 to 420 cSt) | 40 lb-ft | 3-Way | -26 °C | 4.1 Nm | C16-3 | 3000 psi | +204 °C | Electrical, Manual | Mineral-based or synthetic hydraulic fluids | Solenoid operated, Manually operated | All parts steel. All operating parts hardened steel | -15 to +400 °F | ISO 4406 18/16/13, SAE Class 4 | Screw in cartridge valve | 0.59 kg | 13 Gal/min | 1" DS Coil | 41.6, 45.4, 49.2 L/min | 82 @ 3000 PSI (210 BAR) cm3/min | Normally Closed, Normally Open, Selector | 85% of rated voltage at 72°F (20°C) min | 90-100 ms | Push Type | 2-1 De-energized, 3-1 Energized | Fluorocarbon | 3000 PSI, 210 BAR | Electrical, Manual | 11, 12, 13 GAL/MIN, 41.6, 45.4, 49.2 L/MIN | Normally Closed, Normally Open, Selector | 2-1 De-energized, 3-1 Energized | |||
| DSH083A | Quote Required | 10 In Stock | $66.19 | EA | 350 bar | D-Ring (Standard) | n/a | Hydraulic Systems Division | 45-2000 SSU (6 to 420 cSt) | 43-49 Nm | 3-Way | -37 °C | 5-7 lb-ft | C08-3 | 5000 psi | +200 °F | Electrical | Mineral-based or synthetic hydraulic fluids | Solenoid Operated | All parts steel. All operating parts hardened steel | -37 to +93 °C | ISO 4406 18/16/13, SAE Class 4 | Screw in cartridge valve | 0.28 lb | 3 Gal/min | 1/2" Super Coil | 2, 3 Gal/min | 160 @ 5000 PSI (350 BAR) cm3/min | Normally Closed, Normally Open, Selector | 85% of rated voltage at 72°F (20°C) min | 50 ms | n/a | 2-1 De-energized, 3-1 Energized | D-Ring (Standard) | 5000 PSI, 350 BAR | Electrical | 2, 3 GAL/MIN, 7.5, 11.3 L/MIN | Normally Closed, Normally Open, Selector | 2-1 De-energized, 3-1 Energized | |
| DSH083AN | Quote Required | TBD | 5000 psi | Nitrile | n/a | Hydraulic Systems Division | 45-2000 SSU (6 to 420 cSt) | 43-49 Nm | 3-Way | -34 °C | 5-7 lb-ft | C08-3 | 5000 psi | +121 °C | Electrical | Mineral-based or synthetic hydraulic fluids | Solenoid Operated | All parts steel. All operating parts hardened steel | -34 to +121 °C | ISO 4406 18/16/13, SAE Class 4 | Screw in cartridge valve | 0.13 kg | 3 Gal/min | 1/2" Super Coil | 7.5, 11.3 L/min | 160 @ 5000 PSI (350 BAR) cm3/min | Normally Closed, Normally Open, Selector | 85% of rated voltage at 72°F (20°C) min | 50 ms | n/a | 2-1 De-energized, 3-1 Energized | Nitrile | 5000 PSI, 350 BAR | Electrical | 2, 3 GAL/MIN, 7.5, 11.3 L/MIN | Normally Closed, Normally Open, Selector | 2-1 De-energized, 3-1 Energized | |||
| DSH083AT | Quote Required | TBD | 350 bar | D-Ring (Standard) | n/a | Hydraulic Systems Division | 45-2000 SSU (6 to 420 cSt) | 32-36 lb-ft | 3-Way | -37 °C | 5-7 lb-ft | C08-3 | 350 bar | +93 °C | Electrical, Manual | Mineral-based or synthetic hydraulic fluids | Solenoid operated, Manually operated | All parts steel. All operating parts hardened steel | -35 to +200 °F | ISO 4406 18/16/13, SAE Class 4 | Screw in cartridge valve | 0.13 kg | 3 Gal/min | 1/2" Super Coil | 7.5, 11.3 L/min | 160 @ 5000 PSI (350 BAR) cm3/min | Normally Closed, Normally Open, Selector | 85% of rated voltage at 72°F (20°C) min | 50 ms | Push and Twist | 2-1 De-energized, 3-1 Energized | D-Ring (Standard) | 5000 PSI, 350 BAR | Electrical, Manual | 2, 3 GAL/MIN, 7.5, 11.3 L/MIN | Normally Closed, Normally Open, Selector | 2-1 De-energized, 3-1 Energized | |||
| DSH083ATN | Quote Required | TBD | 5000 psi | Nitrile | n/a | Hydraulic Systems Division | 45-2000 SSU (6 to 420 cSt) | 43-49 Nm | 3-Way | -34 °C | 5-7 lb-ft | C08-3 | 5000 psi | +250 °F | Electrical, Manual | Mineral-based or synthetic hydraulic fluids | Solenoid operated, Manually operated | All parts steel. All operating parts hardened steel | -34 to +121 °C | ISO 4406 18/16/13, SAE Class 4 | Screw in cartridge valve | 0.13 kg | 11.3 L/min | 1/2" Super Coil | 7.5, 11.3 L/min | 160 @ 5000 PSI (350 BAR) cm3/min | Normally Closed, Normally Open, Selector | 85% of rated voltage at 72°F (20°C) min | 50 ms | Push and Twist | 2-1 De-energized, 3-1 Energized | Nitrile | 5000 PSI, 350 BAR | Electrical, Manual | 2, 3 GAL/MIN, 7.5, 11.3 L/MIN | Normally Closed, Normally Open, Selector | 2-1 De-energized, 3-1 Energized | |||
| DSH083ATV | Quote Required | TBD | 5000 psi | Fluorocarbon | n/a | Hydraulic Systems Division | 45-2000 SSU (6 to 420 cSt) | 43-49 Nm | 3-Way | -15 °F | 7-10 Nm | C08-3 | 350 bar | +400 °F | Electrical, Manual | Mineral-based or synthetic hydraulic fluids | Solenoid operated, Manually operated | All parts steel. All operating parts hardened steel | -15 to +400 °F | ISO 4406 18/16/13, SAE Class 4 | Screw in cartridge valve | 0.13 kg | 3 Gal/min | 1/2" Super Coil | 2, 3 Gal/min | 160 @ 5000 PSI (350 BAR) cm3/min | Normally Closed, Normally Open, Selector | 85% of rated voltage at 72°F (20°C) min | 50 ms | Push and Twist | 2-1 De-energized, 3-1 Energized | Fluorocarbon | 5000 PSI, 350 BAR | Electrical, Manual | 2, 3 GAL/MIN, 7.5, 11.3 L/MIN | Normally Closed, Normally Open, Selector | 2-1 De-energized, 3-1 Energized | |||
| DSH083AV | Quote Required | $72.19 | EA | 5000 psi | Fluorocarbon | n/a | Hydraulic Systems Division | 45-2000 SSU (6 to 420 cSt) | 32-36 lb-ft | 3-Way | -26 °C | 7-10 Nm | C08-3 | 350 bar | +400 °F | Electrical | Mineral-based or synthetic hydraulic fluids | Solenoid Operated | All parts steel. All operating parts hardened steel | -15 to +400 °F | ISO 4406 18/16/13, SAE Class 4 | Screw in cartridge valve | 0.13 kg | 11.3 L/min | 1/2" Super Coil | 7.5, 11.3 L/min | 160 @ 5000 PSI (350 BAR) cm3/min | Normally Closed, Normally Open, Selector | 85% of rated voltage at 72°F (20°C) min | 50 ms | n/a | 2-1 De-energized, 3-1 Energized | Fluorocarbon | 5000 PSI, 350 BAR | Electrical | 2, 3 GAL/MIN, 7.5, 11.3 L/MIN | Normally Closed, Normally Open, Selector | 2-1 De-energized, 3-1 Energized | ||
| DSH083B | Quote Required | 19 In Stock | $66.19 | EA | 350 bar | D-Ring (Standard) | n/a | Hydraulic Systems Division | 45-2000 SSU (6 to 420 cSt) | 32-36 lb-ft | 3-Way | -37 °C | 5-7 lb-ft | C08-3 | 350 bar | +93 °C | Electrical | Mineral-based or synthetic hydraulic fluids | Solenoid Operated | All parts steel. All operating parts hardened steel | -35 to +200 °F | ISO 4406 18/16/13, SAE Class 4 | Screw in cartridge valve | 0.13 kg | 4 Gal/min | 1/2" Super Coil | 4 Gal/min | 250 @ 5000 PSI (350 BAR) cm3/min | Normally Closed, Selector | 85% of rated voltage at 72°F (20°C) min | 50 ms | n/a | 2-1 De-energized, 2-3 Energized | D-Ring (Standard) | 5000 PSI, 350 BAR | Electrical | 4 GAL/MIN, 15 L/MIN | Normally Closed, Selector | 2-1 De-energized, 2-3 Energized | |
| DSH083BN | Quote Required | TBD | 5000 psi | Nitrile | n/a | Hydraulic Systems Division | 45-2000 SSU (6 to 420 cSt) | 32-36 lb-ft | 3-Way | -34 °C | 7-10 Nm | C08-3 | 350 bar | +250 °F | Electrical | Mineral-based or synthetic hydraulic fluids | Solenoid Operated | All parts steel. All operating parts hardened steel | -30 to +250 °F | ISO 4406 18/16/13, SAE Class 4 | Screw in cartridge valve | 0.13 kg | 4 Gal/min | 1/2" Super Coil | 15 L/min | 250 @ 5000 PSI (350 BAR) cm3/min | Normally Closed, Selector | 85% of rated voltage at 72°F (20°C) min | 50 ms | n/a | 2-1 De-energized, 2-3 Energized | Nitrile | 5000 PSI, 350 BAR | Electrical | 4 GAL/MIN, 15 L/MIN | Normally Closed, Selector | 2-1 De-energized, 2-3 Energized | |||
| DSH083BT | Quote Required | 1 Limited Stock | $99.00 | EA | 350 bar | D-Ring (Standard) | n/a | Hydraulic Systems Division | 45-2000 SSU (6 to 420 cSt) | 43-49 Nm | 3-Way | -35 °F | 5-7 lb-ft | C08-3 | 5000 psi | +93 °C | Electrical, Manual | Mineral-based or synthetic hydraulic fluids | Solenoid operated, Manually operated | All parts steel. All operating parts hardened steel | -37 to +93 °C | ISO 4406 18/16/13, SAE Class 4 | Screw in cartridge valve | 0.28 lb | 4 Gal/min | 1/2" Super Coil | 15 L/min | 250 @ 5000 PSI (350 BAR) cm3/min | Normally Closed, Selector | 85% of rated voltage at 72°F (20°C) min | 50 ms | Push and Twist | 2-1 De-energized, 2-3 Energized | D-Ring (Standard) | 5000 PSI, 350 BAR | Electrical, Manual | 4 GAL/MIN, 15 L/MIN | Normally Closed, Selector | 2-1 De-energized, 2-3 Energized | |
| DSH083BTN | 1 Limited Stock | Quote Required | $203.29 | EA | 350 bar | Nitrile | n/a | Hydraulic Systems Division | 45-2000 SSU (6 to 420 cSt) | 43-49 Nm | 3-Way | -30 °F | 5-7 lb-ft | C08-3 | 5000 psi | +250 °F | Electrical, Manual | Mineral-based or synthetic hydraulic fluids | Solenoid operated, Manually operated | All parts steel. All operating parts hardened steel | -34 to +121 °C | ISO 4406 18/16/13, SAE Class 4 | Screw in cartridge valve | 0.28 lb | 4 Gal/min | 1/2" Super Coil | 15 L/min | 250 @ 5000 PSI (350 BAR) cm3/min | Normally Closed, Selector | 85% of rated voltage at 72°F (20°C) min | 50 ms | Push and Twist | 2-1 De-energized, 2-3 Energized | Nitrile | 5000 PSI, 350 BAR | Electrical, Manual | 4 GAL/MIN, 15 L/MIN | Normally Closed, Selector | 2-1 De-energized, 2-3 Energized | |
| DSH083BTV | Quote Required | TBD | 350 bar | Fluorocarbon | n/a | Hydraulic Systems Division | 45-2000 SSU (6 to 420 cSt) | 43-49 Nm | 3-Way | -26 °C | 5-7 lb-ft | C08-3 | 5000 psi | +204 °C | Electrical, Manual | Mineral-based or synthetic hydraulic fluids | Solenoid operated, Manually operated | All parts steel. All operating parts hardened steel | -26 to +204 °C | ISO 4406 18/16/13, SAE Class 4 | Screw in cartridge valve | 0.28 lb | 4 Gal/min | 1/2" Super Coil | 15 L/min | 250 @ 5000 PSI (350 BAR) cm3/min | Normally Closed, Selector | 85% of rated voltage at 72°F (20°C) min | 50 ms | Push and Twist | 2-1 De-energized, 2-3 Energized | Fluorocarbon | 5000 PSI, 350 BAR | Electrical, Manual | 4 GAL/MIN, 15 L/MIN | Normally Closed, Selector | 2-1 De-energized, 2-3 Energized | |||
| DSH083BV | Quote Required | TBD | 350 bar | Fluorocarbon | n/a | Hydraulic Systems Division | 45-2000 SSU (6 to 420 cSt) | 32-36 lb-ft | 3-Way | -15 °F | 7-10 Nm | C08-3 | 350 bar | +204 °C | Electrical | Mineral-based or synthetic hydraulic fluids | Solenoid Operated | All parts steel. All operating parts hardened steel | -15 to +400 °F | ISO 4406 18/16/13, SAE Class 4 | Screw in cartridge valve | 0.28 lb | 4 Gal/min | 1/2" Super Coil | 4 Gal/min | 250 @ 5000 PSI (350 BAR) cm3/min | Normally Closed, Selector | 85% of rated voltage at 72°F (20°C) min | 50 ms | n/a | 2-1 De-energized, 2-3 Energized | Fluorocarbon | 5000 PSI, 350 BAR | Electrical | 4 GAL/MIN, 15 L/MIN | Normally Closed, Selector | 2-1 De-energized, 2-3 Energized | |||
| DSH083C | Quote Required | TBD | 350 bar | D-Ring (Standard) | n/a | Hydraulic Systems Division | 45-2000 SSU (6 to 420 cSt) | 32-36 lb-ft | 3-Way | -35 °F | 5-7 lb-ft | C08-3 | 5000 psi | +93 °C | Electrical | Mineral-based or synthetic hydraulic fluids | Solenoid Operated | All parts steel. All operating parts hardened steel | -37 to +93 °C | ISO 4406 18/16/13, SAE Class 4 | Screw in cartridge valve | 0.28 lb | 15 L/min | 1/2" Super Coil | 4 Gal/min | 160 @ 5000 PSI (350 BAR) cm3/min | Normally Open | 85% of rated voltage at 72°F (20°C) min | 50 ms | n/a | 3-1 De-energized, 2-1 Energized | D-Ring (Standard) | 5000 PSI, 350 BAR | Electrical | 4 GAL/MIN, 15 L/MIN | Normally Open | 3-1 De-energized, 2-1 Energized | |||
| DSH083CN | Quote Required | TBD | 5000 psi | Nitrile | n/a | Hydraulic Systems Division | 45-2000 SSU (6 to 420 cSt) | 32-36 lb-ft | 3-Way | -30 °F | 5-7 lb-ft | C08-3 | 350 bar | +121 °C | Electrical | Mineral-based or synthetic hydraulic fluids | Solenoid Operated | All parts steel. All operating parts hardened steel | -34 to +121 °C | ISO 4406 18/16/13, SAE Class 4 | Screw in cartridge valve | 0.13 kg | 4 Gal/min | 1/2" Super Coil | 4 Gal/min | 160 @ 5000 PSI (350 BAR) cm3/min | Normally Open | 85% of rated voltage at 72°F (20°C) min | 50 ms | n/a | 3-1 De-energized, 2-1 Energized | Nitrile | 5000 PSI, 350 BAR | Electrical | 4 GAL/MIN, 15 L/MIN | Normally Open | 3-1 De-energized, 2-1 Energized | |||
| DSH083CT | Quote Required | TBD | 5000 | D-Ring (Standard) | n/a | Hydraulic Systems Division | 45-2000 SSU (6 to 420 cSt) | 32-36 | 3-Way | -35 | 5-7 | C08-3 | 5000 | +200 | Electrical, Manual | Mineral-based or synthetic hydraulic fluids | Solenoid operated, Manually operated | All parts steel. All operating parts hardened steel | -37 to +93 | ISO 4406 18/16/13, SAE Class 4 | Screw in cartridge valve | 0.28 | 4 | 1/2" Super Coil | 4 | 160 @ 5000 PSI (350 BAR) | Normally Open | 85% of rated voltage at 72°F (20°C) | 50 | Push and Twist | 3-1 De-energized, 2-1 Energized | D-Ring (Standard) | 5000 PSI, 350 BAR | Electrical, Manual | 4 GAL/MIN, 15 L/MIN | Normally Open | 3-1 De-energized, 2-1 Energized | |||
| DSH083CTN | Quote Required | TBD | 5000 | Nitrile | n/a | Hydraulic Systems Division | 45-2000 SSU (6 to 420 cSt) | 32-36 | 3-Way | -30 | 5-7 | C08-3 | 5000 | +250 | Electrical, Manual | Mineral-based or synthetic hydraulic fluids | Solenoid operated, Manually operated | All parts steel. All operating parts hardened steel | -34 to +121 | ISO 4406 18/16/13, SAE Class 4 | Screw in cartridge valve | 0.28 | 4 | 1/2" Super Coil | 4 | 160 @ 5000 PSI (350 BAR) | Normally Open | 85% of rated voltage at 72°F (20°C) | 50 | Push and Twist | 3-1 De-energized, 2-1 Energized | Nitrile | 5000 PSI, 350 BAR | Electrical, Manual | 4 GAL/MIN, 15 L/MIN | Normally Open | 3-1 De-energized, 2-1 Energized |
