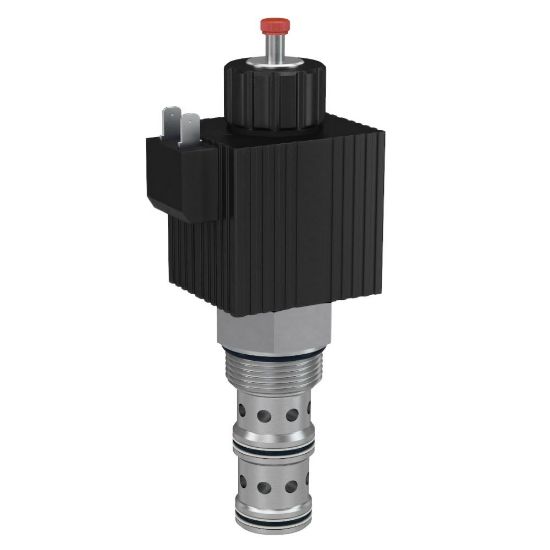

Parker DS163B - 3 Way Solenoid Valves for High Pressure Hydraulic Applications

REGIONAL - Parker's direct acting 3-way, 2-position spool-type to cover a wide range of flows up to 57 lpm (15 gpm) and pressures as high as 350 bar (5000 psi). These screw-in cartridge valves are fast to respond to coil voltage.
AFP Availability:
Quote Required
Partner Available:31 In Stock
Brand Parker
Part No. DS163B
$378.96/each
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEACoil Nut Tightening Torque4.1 Nm
Weight0.59 kgResponse Time90-100 ms
Maximum Operating Pressure3000 psiActuation TypeElectrical, Manual
Seal MaterialNitrileValve MaterialAll parts steel. All operating parts hardened steel
Flow Direction2-1 De-energized, 2-3 EnergizedMaximum Inlet Pressure Rating3000 psi
Maximum Kinematic Viscosity45-2000 SSU (6 to 420 cSt)Filter Efficiency RatingISO 4406 18/16/13, SAE Class 4
ConfigurationNormally Closed, Normally Open, SelectorFunction3-way
For Fluid TypeMineral-based or synthetic hydraulic fluidsOverride FunctionalityPush Type
Maximum Operating Temperature+121 °CCoil Type1" DS Coil
Cavity SizeC16-3Leak Rate82 @ 3000 PSI (210 BAR) cm3/min
Operation TypeSolenoid operated, Manually operatedBody MaterialN/A
Input Voltage85% of rated voltage at 72°F (20°C) minMounting TypeScrew in cartridge valve
Maximum Flow Rate15 Gal/minInstallation Torque40 lb-ft
Operating Temperature-30 to +250 °FDivisionHydraulic Systems Division
Minimum Operating Temperature-34 °CFlow Rate26.5, 53, 56.8 L/min
Seal MaterialNitrileMaximum Inlet Pressure Rating3000 PSI, 210 BAR
Actuation TypeElectrical, ManualFlow Rate7, 14, 15 GAL/MIN, 26.5, 53, 56.8 L/MIN
ConfigurationNormally Closed, Normally Open, SelectorFlow Direction2-1 De-energized, 2-3 Energized
