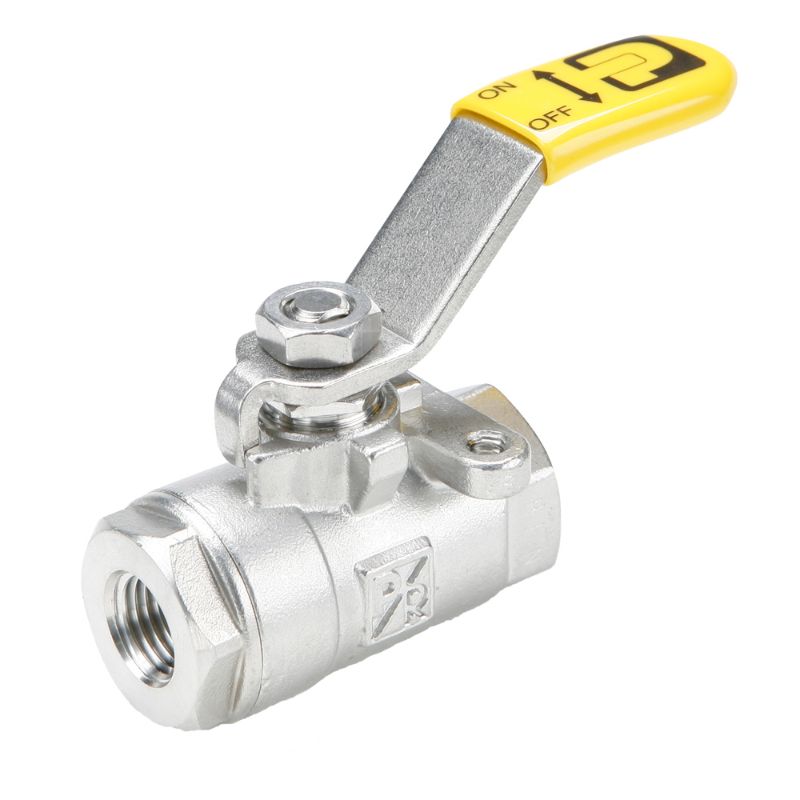

Parker V502SS-4-20 - Industrial Ball Valves - Stainless Steel

Parker's stainless steel ball valves meet the material requirements of NACE MR-01-75.

Availability:	Quote Required
Partner Available:	1 Limited Stock

Brand Parker

Part No. V502SS-4-20

$130.97

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Division	Fluid System Connectors Division
Vacuum Pressure Rating	28	Minimum Operating Temperature	0
Seal Material	PTFE	Connection Type	NPT
Maximum Operating Temperature	400	Connection Size	1/4
Function	2-Way	Actuation Type	Manual
Seat Material	PTFE	Maximum Operating Pressure	2000
Product Type	Ball Valve	Operation Type	n/a
Maximum Flow Rate	4	Orifice Size	.38
Mounting Type	Panel	Body Material	CF-8M Stainless Steel
Shape	Panel Mount	Ball Material	PTFE
Specifications Met	NACE MR-01-75	Handle Type	Short
Configuration	Female NPT	Connection 2 Thread Size (inch)	1/4
Locking Mechanism	Non-Locking	Connection 1 Thread Size (inch)	1/4
Style	Female Pipe Ends	Connection 1 Thread Style	Female Pipe
Connection 2 Thread Style	Female Pipe	Shape	Panel mount
Handle	Short Stainless Steel
