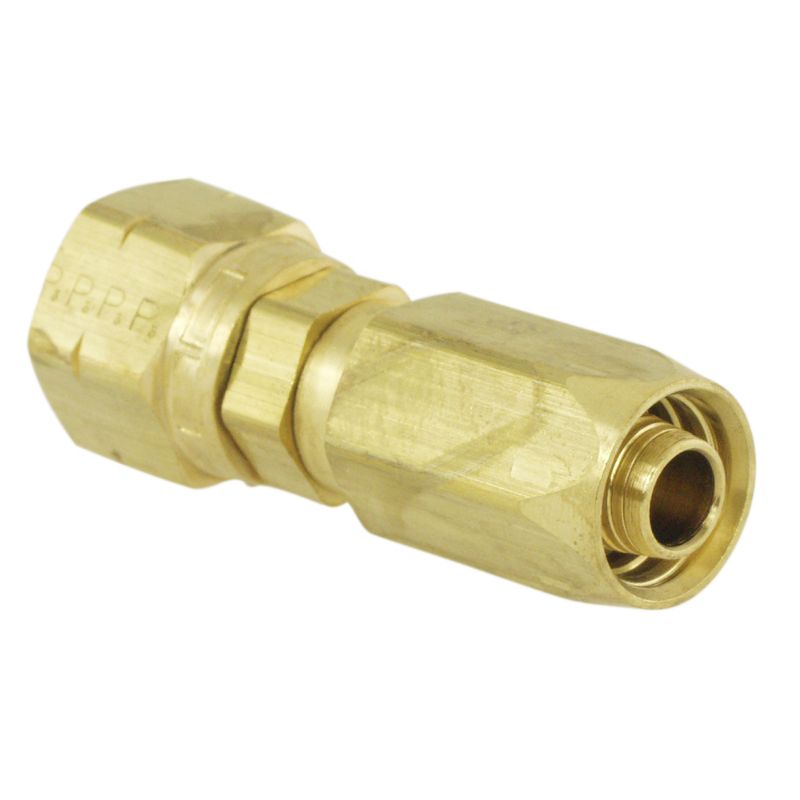

Parker 208MS-6-6B - Marine Hose Fittings – MS Series

MS series are available in both permanent crimp and field attachable brass constructions for corrosion resistance in marine steering applications.

AFP Availability:	Quote Required
Partner Available:	7 In Stock

Brand Parker

Part No. 208MS-6-6B

$29.42/each

Products specifications

Attribute name	Attribute value
Division	Parflex Division	Technology	Fluid & Gas Handling
For Fluid Type	Lubricants (Oils)	Connection 2 Size	5/8"-18 inch Thread
Fitting Length	2.37 inch	Configuration	Hose to Port
Connection 2 Type	Field Attachable	Connection Length	37 mm
Hex Size	13/16 inch (see drawing legend H)	Body Material	Brass
Coating	n/a	Connection 1 Size	3/8 inch Hose I.D.
Connection 1 Type	Hose	Specifications Met	n/a
Hex Size 1	5/8 inch (see drawing legend J)	Product Type	Hose Fittings
Application	Marine	Hex Size 2	5/8 inch (see drawing legend W)
Shape	Straight	Division	Parflex Division
Brand	Parker	Industry	Marine
Maximum Operating Pressure	103 bar	Shape	Straight
Body Material	BRASS	Connection 2 Size	5/8"-18
Connection 1 Hose Inside Diameter	3/8 (I.D.)	Connection 2 Type	Field Attachable, Female SAE 45° - Swivel
