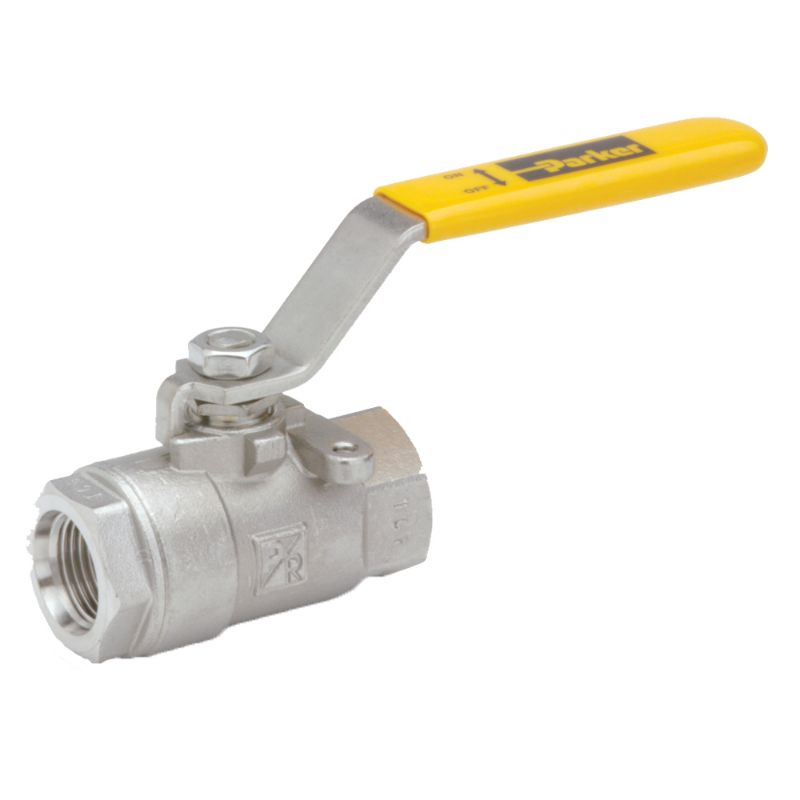

Parker V502SS-12 - Industrial Ball Valves - Stainless Steel

Name: Parker V502SS-12 - Industrial Ball Valves - Stainless Steel
SKU: V502SS-12
Price: 183.50 USD
Availability: LimitedAvailability

Parker's stainless steel ball valves meet the material requirements of NACE MR-01-75.

Availability:

1 Limited Stock

Norfolk, VA

Partner Available:

13 In Stock

Brand Parker

Part No. V502SS-12

$183.50

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Division	Fluid System Connectors Division
Vacuum Pressure Rating	28	Minimum Operating Temperature	0
Seal Material	PTFE	Connection Type	NPT
Maximum Operating Temperature	400	Connection Size	3/4
Function	2-Way	Actuation Type	Manual
Maximum Operating Pressure	2000	Product Type	Ball Valve
Handle Type	Lever	Maximum Flow Rate	35
Seat Material	Stainless Steel	Operation Type	n/a
Mounting Type	Panel	Body Material	CF-8M Stainless Steel
Shape	Panel Mount	Ball Material	PTFE
Specifications Met	NACE MR-01-75	Orifice Size	.787
Configuration	Female NPT	Connection 1 Thread Size (inch)	3/4
Connection 2 Thread Size (inch)	3/4	Locking Mechanism	Non-Locking
Style	Female Pipe Ends	Connection 1 Thread Style	Female Pipe
Connection 2 Thread Style	Female Pipe	Shape	Panel mount
Handle	Stainless Steel Lever

Product resources

Compliance, Certifications & Safety

Literature and Reference Materials

Compliance, Certifications & Safety, Literature and Reference Materials

FSC REACH Product Declaration (PDF)
