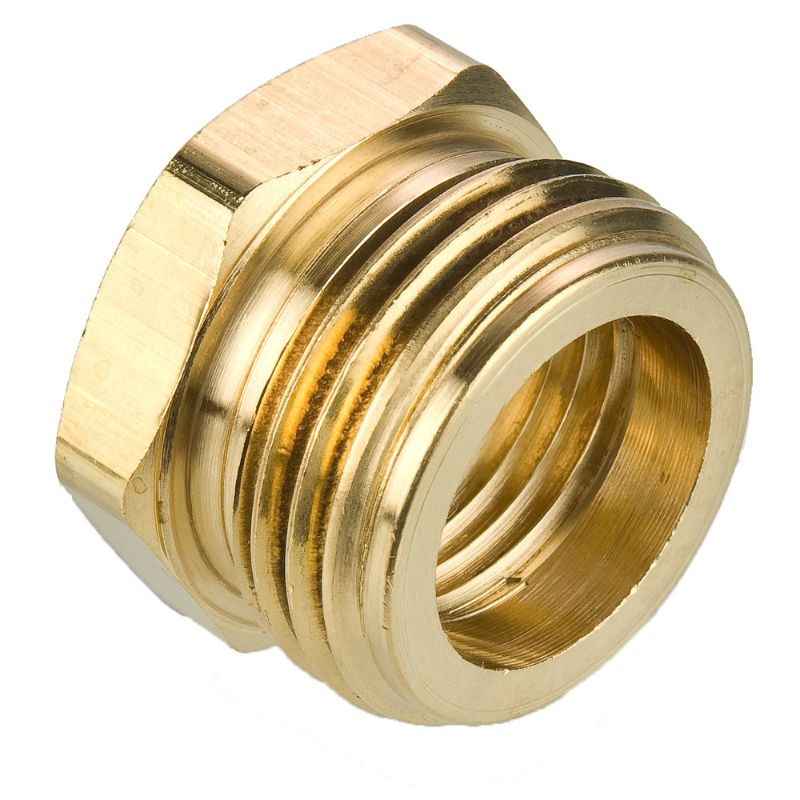

Parker 78GH-12-4 - Brass Garden Hose Fittings

Parker's Garden Hose fittings and high flow quick couplers are solid brass with 3/4" garden hose thread.

AFP Availability:	Quote Required
Partner Available:	186 In Stock

Brand Parker

Part No. 78GH-12-4

$13.35/each

Products specifications

Attribute name	Attribute value
Maximum Operating Pressure	150 psi	Tube Material	Garden Hose, Tubing, Pipe
Division	Fluid System Connectors Division	Maximum Operating Temperature	100 °F
Dimensional Weight	0.2870503597122302 lb	Body Material	Brass
Washer Material	Rubber	Minimum Operating Temperature	2 °C
Connection 1 Tube O.D. (inch)	na	Shape	Connector
Connection 1 Style	Hose Thread	Connection 1 Hose I.D. (inch)	na
Connection 2 Hose I.D. (inch)	na	Connection 1 Thread Size (inch)	3/4
Connection 2 Thread Size (inch)	1/4	Connection 2 Style	Female Pipe
Style	Male Hose to Female Pipe
