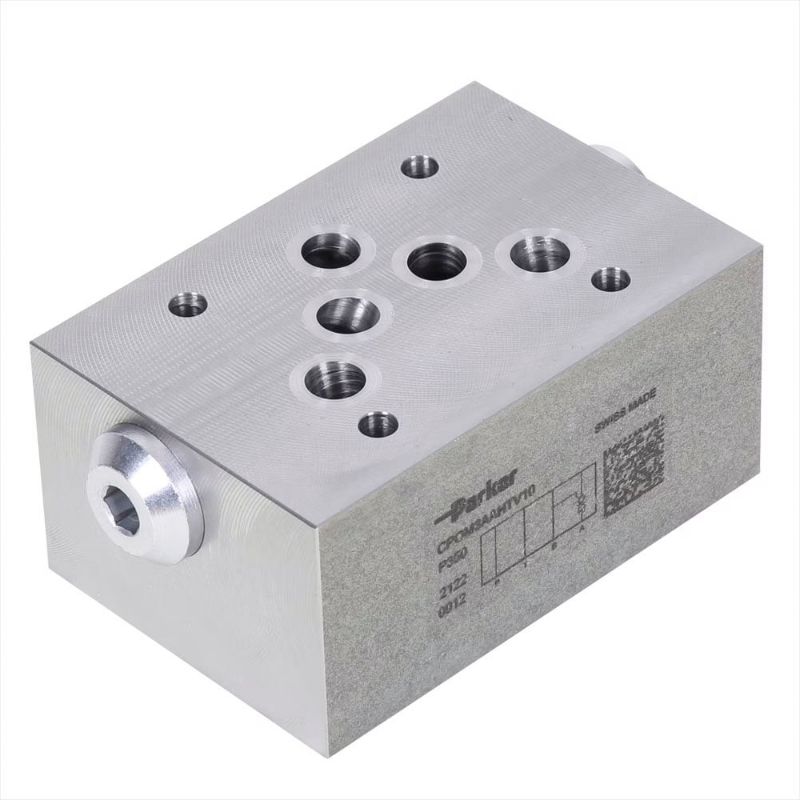

Parker CPOM3AAV - Pilot Operated Check Valve - Series CPOM (N.A.)

Parker's pilot operated check valves series CPOM in sandwich design ensure an easy configuration of stack systems and provide a very good price-performance ratio.

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. CPOM3AAV

$855.75/each

Products specifications

Attribute name	Attribute value
Connection Type	N/A	Maximum Operating Temperature	158
Division	Hydraulic Valve Systems Division	Opening Pressure Ratio	3:1
Operation Type	Pilot	Body Material	Steel
Mounting Type	Subplate	Maximum Flow Rate	20
Poppet Style	A port only	Division	Hydraulic Valve Systems Division
Minimum Operating Temperature	-4	Flow Direction	N/A
Product Series	Check valve	Cracking Pressure	5
Weight	9.6	Connection Size	CETOP 05 (NG10)
Maximum Operating Pressure	5000	Actuation Type	Hydraulic Pressure
Seal Material	Fluorocarbon	Poppet Style	A port only
Connection Size	CETOP 03 (NG06)	Cracking Pressure	5 PSI (0.3 BAR)
Maximum Flow Rate	20 GAL/MIN (76 L/MIN)	Maximum Operating Pressure	5000 PSI (345 BAR)

Product resources

Literature and Reference Materials

MSG14-2500/US Industrial Hydraulic Valves (PDF)
