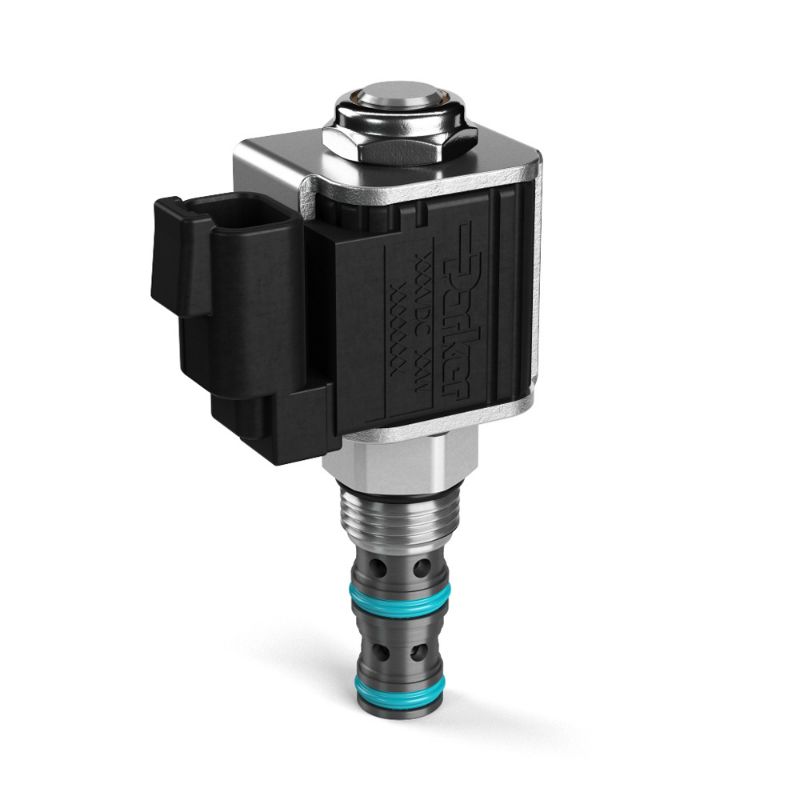

Parker DSL083CT - 3 Way Solenoid Valves for High Pressure Hydraulic Applications

High pressure solenoid valves are direct acting 3-way, 2-position spool-type to cover a wide range of flows up to 57 lpm (15 gpm) and pressures as high as 350 bar (5000 psi). These screw-in cartridge valves are fast to respond to coil voltage.

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. DSL083CT

$123.50/each

Products specifications

Attribute name	Attribute value
UOM	EA	Leak Rate	120 @ 3600 PSI (250 BAR) cm3/min
Operation Type	Solenoid operated, Manually operated	Body Material	N/A
Input Voltage	85% of rated voltage at 72°F (20°C) min	Mounting Type	Screw in cartridge valve
Maximum Flow Rate	15 L/min	Installation Torque	23-27 lb-ft
Operating Temperature	-37 to +93 °C	Division	Hydraulic Systems Division
Minimum Operating Temperature	-37 °C	Flow Rate	4 Gal/min
Coil Nut Tightening Torque	5-7 lb-ft	Weight	0.13 kg
Response Time	50 ms	Maximum Operating Pressure	3600 psi
Seal Material	D-Ring (Standard)	Actuation Type	Electrical, Manual
Valve Material	All parts steel. All operating parts hardened steel	Flow Direction	3-1 De-energized, 2-1 Energized
Maximum Inlet Pressure Rating	250 bar	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Configuration	Normally Open
Function	3-way	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Override Functionality	Push and Twist	Maximum Operating Temperature	+93 °C
Coil Type	1/2" Super Coil	Cavity Size	C08-3
Configuration	Normally Open	Seal Material	D-Ring (Standard)
Actuation Type	Electrical, Manual	Flow Rate	4 GAL/MIN, 15 L/MIN
Flow Direction	3-1 De-energized, 2-1 Energized	Maximum Inlet Pressure Rating	3600 PSI, 250 BAR
