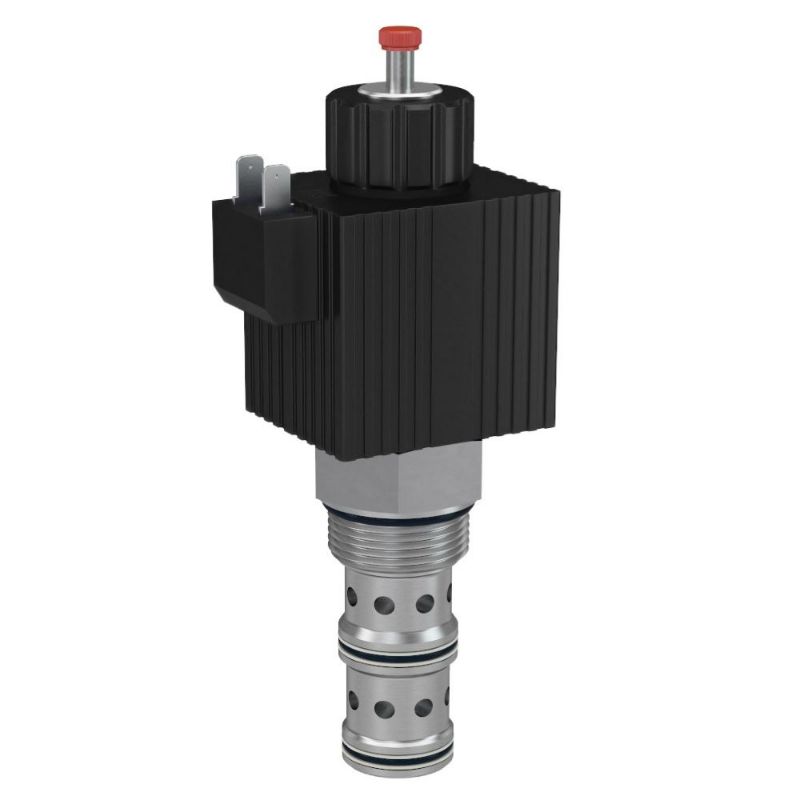

Parker DS163 - 3 Way Solenoid Valves for High Pressure Hydraulic Applications

REGIONAL - Parker's direct acting 3-way, 2-position spool-type to cover a wide range of flows up to 57 lpm (15 gpm) and pressures as high as 350 bar (5000 psi). These screw-in cartridge valves are fast to respond to coil voltage.
AFP Availability:
Partner Available:Quote Required
Brand Parker
Part No. DS163
$310.50/each
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEAMounting TypeScrew in cartridge valve
Input Voltage85% of rated voltage at 72°F (20°C) minLeak Rate82 @ 3000 PSI (210 BAR) cm3/min
Body MaterialN/AOperating Temperature-30 to +250 °F
Operation TypeSolenoid operated, Manually operatedMaximum Flow Rate49.2 L/min
Minimum Operating Temperature-34 °CDivisionHydraulic Systems Division
Flow Rate11, 12, 13 Gal/minInstallation Torque54 Nm
Seal MaterialNitrileActuation TypeElectrical, Manual
Coil Nut Tightening Torque4.1 NmResponse Time90-100 ms
Filter Efficiency RatingISO 4406 18/16/13, SAE Class 4Maximum Kinematic Viscosity45-2000 SSU (6 to 420 cSt)
Maximum Inlet Pressure Rating210 barWeight0.59 kg
Valve MaterialAll parts steel. All operating parts hardened steelFlow Direction2-1 De-energized, 3-1 Energized
Maximum Operating Pressure3000 psiFunction3-way
ConfigurationNormally Closed, Normally Open, SelectorFor Fluid TypeMineral-based or synthetic hydraulic fluids
Cavity SizeC16-3Override FunctionalityPush Type
Maximum Operating Temperature+250 °FCoil Type1" DS Coil
Seal MaterialNitrileMaximum Inlet Pressure Rating3000 PSI, 210 BAR
Actuation TypeElectrical, ManualFlow Rate11, 12, 13 GAL/MIN, 41.6, 45.4, 49.2 L/MIN
ConfigurationNormally Closed, Normally Open, SelectorFlow Direction2-1 De-energized, 3-1 Energized
