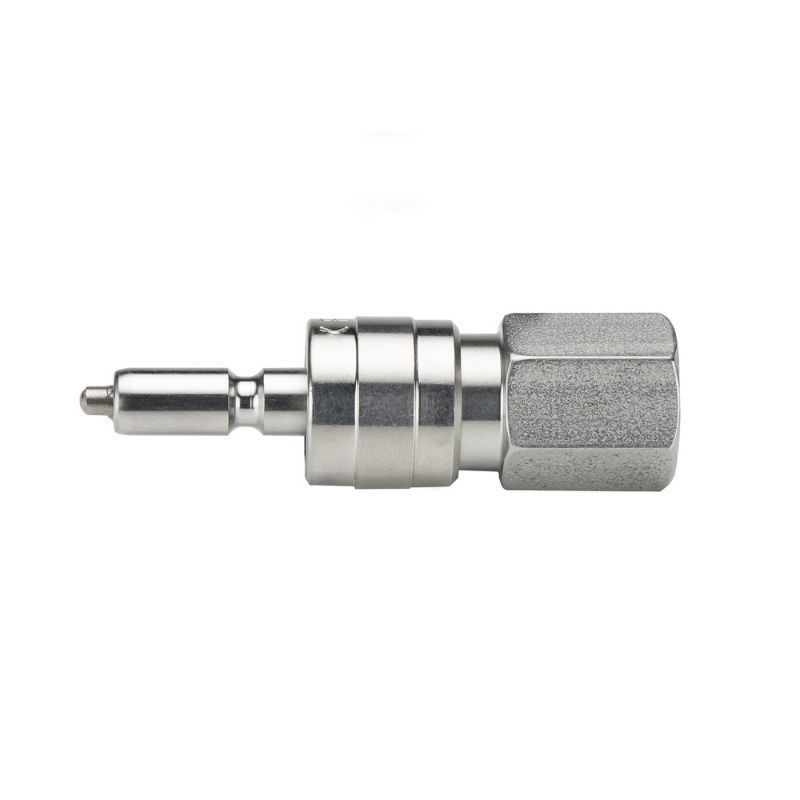

Parker 4F-Q4P-SS - Stainless Steel, Instrumentation Quick Couplings - CPI Series

Parker's stainless steel instrumentation quick couplers and nipples are ideal for vacuum or pressure applications where fluid or gas lines require fast and easy connection and disconnection.

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 4F-Q4P-SS

$197.48/each

Products specifications

Attribute name	Attribute value
UOM	EA	Division	Quick Coupling Division
Maximum Operating Pressure	3000 psi	Maximum Operating Temperature	400 °F
Application	Instrumentation	Body Material	316 Stainless Steel
Valve Type	Unvalved	Hose Inside Diameter	na
Minimum Operating Temperature	-15 °F	Product Type	Push-to-Connect
Seal Material	na	Vacuum Pressure Rating	0.05 mm-Hg
Coupling Half	Male Nipple	Body Size (inch)	1/4
Connection Thread Size (inch)	1/4 - 18	Maximum Operating Pressure	3000
Connection Type	Female NPT	Tube Size (inch)	na
