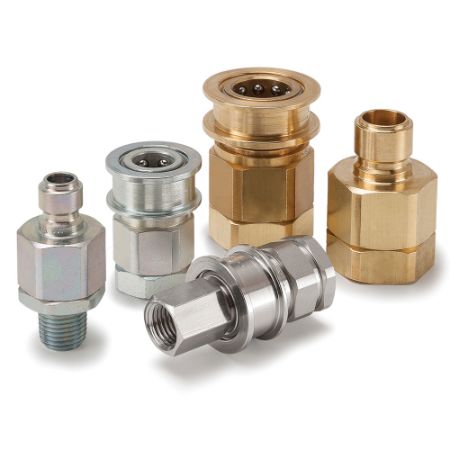

Vacuum and Medium Pressure Quick Couplings - EA Series
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
EA Series Couplers, (hydraulic, water, gas) vacuum up to 3,000 psi, connect with EA Series Nipples.
Parker's EA Series are available as single shut-off, double shut-off, or unvalved straight through quick couplings specifically designed for vacuum and medium pressure applications. Dependable vacuum service down to 29.72" Hg. Couplers and nipples are available in a range of sizes and variety of materials including brass, steel and 316 stainless steel.
Technical Characteristics:
• Sizes: 1/4” - 3/4”
• Materials: Steel, Brass, 316 Stainless Steel
• Port Ends: Female NPTF, Male NPT
• Seal Options: Nitrile, Fluorocarbon, Ethylene Propylene
• Other options include: aluminum material, sizes up to 4", and additional port end configuration options
Markets:
• Industrial
• Construction
• Molding
• Testing
Features/Benefits:
• Multi-purpose coupling with vacuum capability
• Valved and unvalved configurations can be used in any combination to make a straight through, double shut off, or single shut off connection
• Male and female port options
Applications:
• Test lab equipment
• Autoclave applications
• Aircraft fabrication
• Plastic molding
• Horizontal boring and dewatering
Read More...Parker's EA Series are available as single shut-off, double shut-off, or unvalved straight through quick couplings specifically designed for vacuum and medium pressure applications. Dependable vacuum service down to 29.72" Hg. Couplers and nipples are available in a range of sizes and variety of materials including brass, steel and 316 stainless steel.
Technical Characteristics:
• Sizes: 1/4” - 3/4”
• Materials: Steel, Brass, 316 Stainless Steel
• Port Ends: Female NPTF, Male NPT
• Seal Options: Nitrile, Fluorocarbon, Ethylene Propylene
• Other options include: aluminum material, sizes up to 4", and additional port end configuration options
Markets:
• Industrial
• Construction
• Molding
• Testing
Features/Benefits:
• Multi-purpose coupling with vacuum capability
• Valved and unvalved configurations can be used in any combination to make a straight through, double shut off, or single shut off connection
• Male and female port options
Applications:
• Test lab equipment
• Autoclave applications
• Aircraft fabrication
• Plastic molding
• Horizontal boring and dewatering
| Action | Part No. | Availability | Partner Available | Price | Plating Type | Division | Application | Minimum Operating Temperature | Seal Material | Maximum Operating Temperature | Vacuum Pressure Rating | Valve Type | Product Type | Hex Size | Body Material | Connection Type | Body Material | Maximum Operating Pressure | Connection Thread Size (inch) | Body Size (inch) | Coupling Half |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BPEAC12-12F | Quote Required | TBD | na | Quick Coupling Division | Vacuum and medium pressure hydraulics | -40 °F | Nitrile | 250 °F | 29.7 Inch-Hg | Unvalved | Manual Connect | 1.5 inch | Brass | Female NPTF | BRASS | 1500 | 3/4 - 14 | 3/4 | Female Coupler | ||
| BPEAC4-4F | Quote Required | TBD | na | Quick Coupling Division | Vacuum and medium pressure hydraulics | -40 °F | Nitrile | 250 °F | 29.7 Inch-Hg | Unvalved | Manual Connect | 0.88 inch | Brass | Female NPTF | BRASS | 1500 | 1/4 - 18 | 1/4 | Female Coupler | ||
| BPEAC6-6F | Quote Required | TBD | na | Quick Coupling Division | Vacuum and medium pressure hydraulics | -40 | Nitrile | 250 | 29.7 | Unvalved | Manual Connect | 1.0 | Brass | Female NPTF | BRASS | 1500 | 3/8 - 18 | 3/8 | Female Coupler | ||
| BPEAC8-8F | Quote Required | TBD | na | Quick Coupling Division | Vacuum and medium pressure hydraulics | -40 °F | Nitrile | 250 °F | 29.7 Inch-Hg | Unvalved | Manual Connect | 1.19 inch | Brass | Female NPTF | BRASS | 1500 | 1/2 - 14 | 1/2 | Female Coupler | ||
| BPEAN12-12F | Quote Required | TBD | na | Quick Coupling Division | Vacuum and medium pressure hydraulics | -40 °F | na | 250 °F | 3/4 Inch-Hg | Unvalved | Manual Connect | 1.19 inch | Brass | Female NPTF | BRASS | 1500 | 3/4 - 14 | 3/4 | Male Nipple | ||
| BPEAN4-4F | Quote Required | TBD | na | Quick Coupling Division | Vacuum and medium pressure hydraulics | -40 °F | na | 250 °F | 1/4 Inch-Hg | Unvalved | Manual Connect | 0.62 inch | Brass | Female NPTF | BRASS | 1500 | 1/4 - 18 | 1/4 | Male Nipple | ||
| BPEAN6-6F | Quote Required | TBD | na | Quick Coupling Division | Vacuum and medium pressure hydraulics | -40 °F | na | 250 °F | 3/8 Inch-Hg | Unvalved | Manual Connect | 0.81 inch | Brass | Female NPTF | BRASS | 1500 | 3/8 - 18 | 3/8 | Male Nipple | ||
| BPEAN8-8F | Quote Required | TBD | na | Quick Coupling Division | Vacuum and medium pressure hydraulics | -40 °F | na | 250 °F | 1/2 Inch-Hg | Unvalved | Manual Connect | 1.0 inch | Brass | Female NPTF | BRASS | 1500 | 1/2 - 14 | 1/2 | Male Nipple | ||
| BVEAC12-12F | Quote Required | TBD | na | Quick Coupling Division | Vacuum and medium pressure hydraulics | -40 °F | Nitrile | 250 °F | 29.7 Inch-Hg | Poppet | Manual Connect | 1.5 inch | Brass | Female NPTF | BRASS | 1500 | 3/4 - 14 | 3/4 | Female Coupler | ||
| BVEAC12-12M | Quote Required | TBD | na | Quick Coupling Division | Vacuum and medium pressure hydraulics | -40 °F | Nitrile | 250 °F | 29.7 Inch-Hg | Poppet | Manual Connect | 1.5 inch | Brass | Male NPTF | BRASS | 1500 | 3/4 - 14 | 3/4 | Female Coupler | ||
| BVEAC4-4F | Quote Required | TBD | na | Quick Coupling Division | Vacuum and medium pressure hydraulics | -40 °F | Nitrile | 250 °F | 29.7 Inch-Hg | Poppet | Manual Connect | 0.88 inch | Brass | Female NPTF | BRASS | 1500 | 1/4 - 18 | 1/4 | Female Coupler | ||
| BVEAC6-6F | Quote Required | TBD | na | Quick Coupling Division | Vacuum and medium pressure hydraulics | -40 °F | Nitrile | 250 °F | 29.7 Inch-Hg | Poppet | Manual Connect | 1.0 inch | Brass | Female NPTF | BRASS | 1500 | 3/8 - 18 | 3/8 | Female Coupler | ||
| BVEAC6-6FE | Quote Required | TBD | n/a | Quick Coupling Division | Medium Pressure Hydraulics | -65 °F | Ethylene Propylene | 300 °F | 29.7 Inch-Hg | Poppet | Manual Connect | 1 inch | Brass | Female NPTF | BRASS | 1500 | 3/8 - 18 | 3/8 | Female Coupler | ||
| BVEAC6-6M | Quote Required | TBD | na | Quick Coupling Division | Vacuum and medium pressure hydraulics | -40 °F | Nitrile | 250 °F | 29.7 Inch-Hg | Poppet | Manual Connect | 1.0 inch | Brass | Male NPTF | BRASS | 1500 | 3/8 - 18 | 3/8 | Female Coupler | ||
| BVEAC8-8F | Quote Required | TBD | na | Quick Coupling Division | Vacuum and medium pressure hydraulics | -40 °F | Nitrile | 250 °F | 29.7 Inch-Hg | Poppet | Manual Connect | 1.19 inch | Brass | Female NPTF | BRASS | 1500 | 1/2 - 14 | 1/2 | Female Coupler | ||
| BVEAC8-8M | Quote Required | TBD | na | Quick Coupling Division | Vacuum and medium pressure hydraulics | -40 °F | Nitrile | 250 °F | 29.7 Inch-Hg | Poppet | Manual Connect | 1.19 inch | Brass | Male NPTF | BRASS | 1500 | 1/2 - 14 | 1/2 | Female Coupler | ||
| BVEAN12-12F | Quote Required | TBD | na | Quick Coupling Division | Vacuum and medium pressure hydraulics | -40 °F | Nitrile | 250 °F | 3/4 Inch-Hg | Poppet | Manual Connect | 1.5 inch | Brass | Female NPTF | BRASS | 1500 | 3/4 - 14 | 3/4 | Male Nipple | ||
| BVEAN12-12M | Quote Required | TBD | na | Quick Coupling Division | Vacuum and medium pressure hydraulics | -40 °F | Nitrile | 250 °F | 3/4 Inch-Hg | Poppet | Manual Connect | 1.5 inch | Brass | Male NPTF | BRASS | 1500 | 3/4 - 14 | 3/4 | Male Nipple | ||
| BVEAN6-6F | Quote Required | TBD | na | Quick Coupling Division | Vacuum and medium pressure hydraulics | -40 °F | Nitrile | 250 °F | 3/8 Inch-Hg | Poppet | Manual Connect | 1.0 inch | Brass | Female NPTF | BRASS | 1500 | 3/8 - 18 | 3/8 | Male Nipple | ||
| BVEAN6-6FE | Quote Required | TBD | n/a | Quick Coupling Division | Vacuum | -65 °F | Ethylene Propylene | 300 °F | 3/8 Inch-Hg | Poppet | Manual Connect | 1 inch | Brass | Female NPTF | BRASS | 1500 | 3/8 - 18 | 3/8 | Male Nipple |
