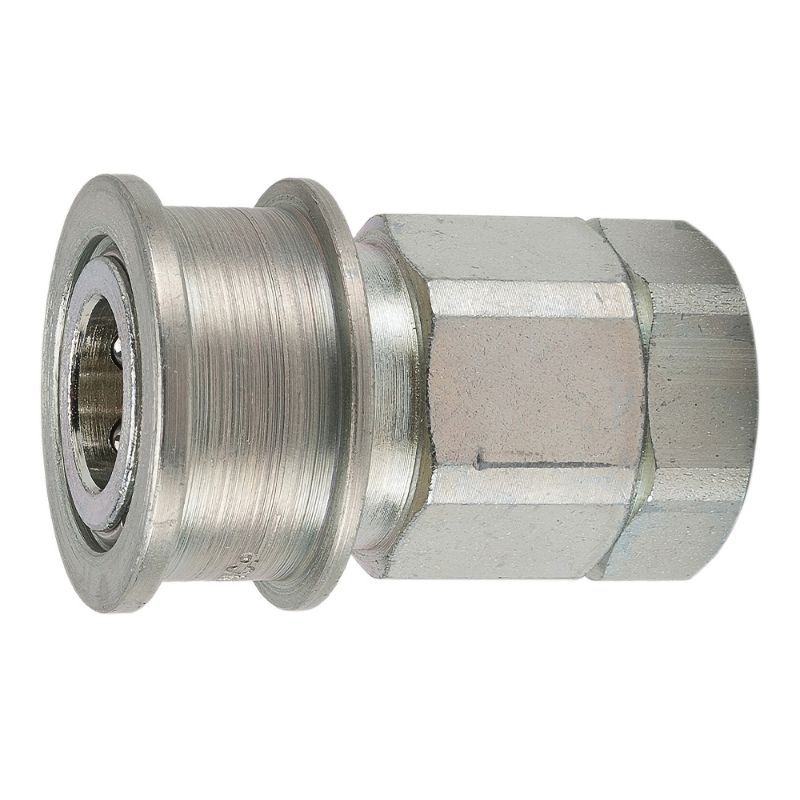

Parker VEAC12-12F - Vacuum and Medium Pressure Quick Couplings - EA Series

Parker's multi-purpose quick couplers and nipples are ideal for use in vacuum and medium pressure applications where fluid or gas lines require fast and easy connection and disconnection.

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. VEAC12-12F

$90.36/each

Products specifications

Attribute name	Attribute value
UOM	EA	Hex Size	1.5 inch
Body Material	Steel	Application	Vacuum and medium pressure hydraulics
Minimum Operating Temperature	-40 °F	Plating Type	Zinc with clear trivalent chromate
Product Type	Manual Connect	Seal Material	Nitrile
Division	Quick Coupling Division	Maximum Operating Temperature	250 °F
Vacuum Pressure Rating	29.7 Inch-Hg	Valve Type	Poppet
Coupling Half	Female Coupler	Body Size (inch)	3/4
Maximum Operating Pressure	2000	Connection Type	Female NPTF
Body Material	Steel	Connection Thread Size (inch)	3/4 - 14
