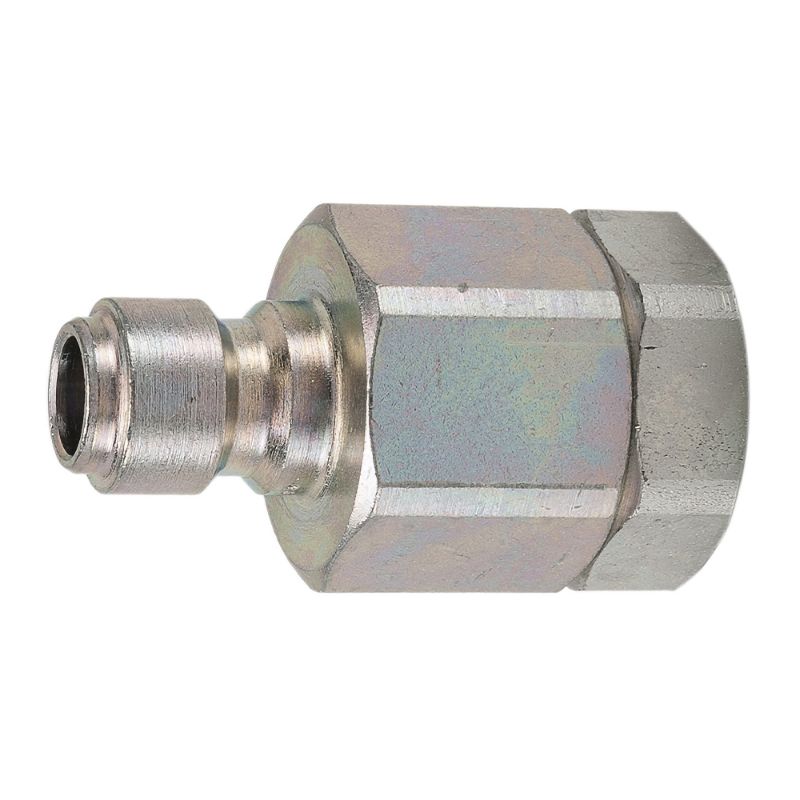

Parker VEAN12-12F - Vacuum and Medium Pressure Quick Couplings - EA Series

Parker's multi-purpose quick couplers and nipples are ideal for use in vacuum and medium pressure applications where fluid or gas lines require fast and easy connection and disconnection.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. VEAN12-12F

$60.75

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Product Type	Manual Connect
Hex Size	1.5 inch	Valve Type	Poppet
Application	Vacuum and medium pressure hydraulics	Division	Quick Coupling Division
Minimum Operating Temperature	-40 °F	Seal Material	Nitrile
Maximum Operating Temperature	250 °F	Plating Type	Zinc with clear trivalent chromate
Vacuum Pressure Rating	3/4 Inch-Hg	Body Material	Steel
Body Material	Steel	Connection Thread Size (inch)	3/4 - 14
Coupling Half	Male Nipple	Maximum Operating Pressure	2000
Body Size (inch)	3/4	Connection Type	Female NPTF

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
