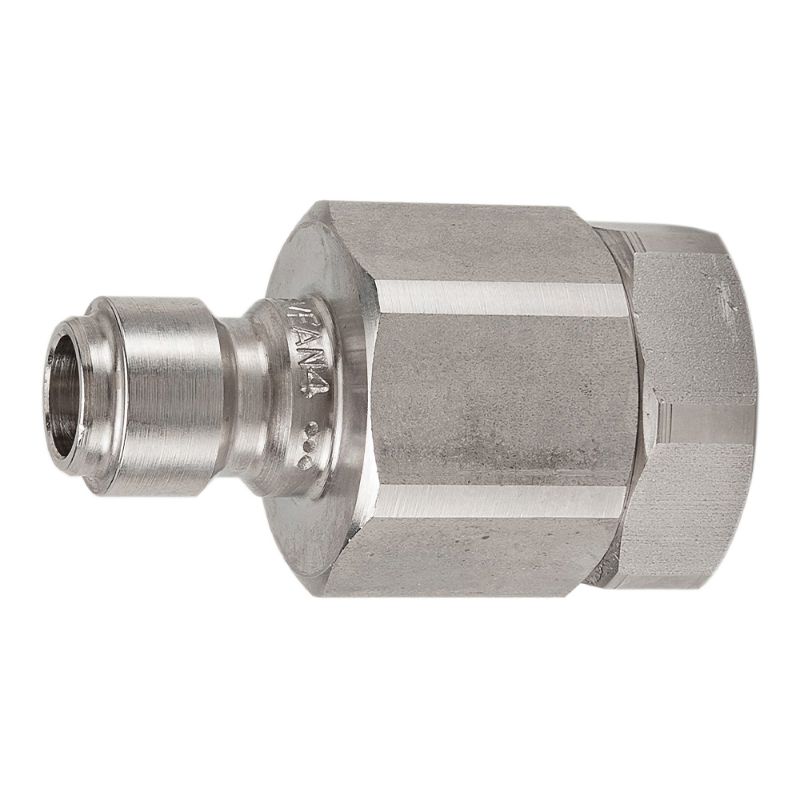

Parker SVEAN4-4F - Vacuum and Medium Pressure Quick Couplings - EA Series

Parker's multi-purpose quick couplers and nipples are ideal for use in vacuum and medium pressure applications where fluid or gas lines require fast and easy connection and disconnection.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. SVEAN4-4F

$97.28

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Minimum Operating Temperature	-40 °F
Division	Quick Coupling Division	Seal Material	Nitrile
Maximum Operating Temperature	250 °F	Product Type	Manual Connect
Valve Type	Poppet	Hex Size	0.88 inch
Plating Type	na	Vacuum Pressure Rating	1/4 Inch-Hg
Application	Vacuum and medium pressure hydraulics	Body Material	Stainless Steel
Body Material	Stainless Steel	Coupling Half	Male Nipple
Body Size (inch)	1/4	Connection Thread Size (inch)	1/4 - 18
Maximum Operating Pressure	3000	Connection Type	Female NPSF

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
