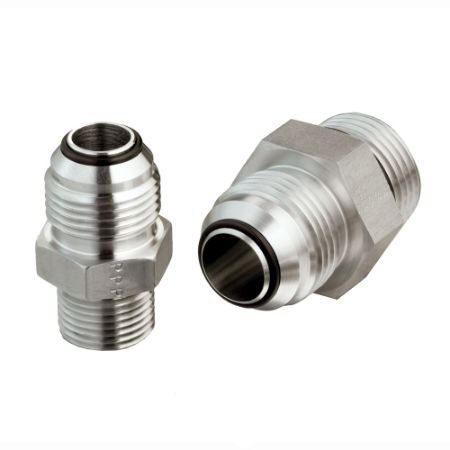

Triple-Lok® 2 Soft Seal 37° Flare JIC Tube Fittings and Adapters

Parker's soft seal 37° flare JIC tube fittings and adapters, Triple-Lok 2, offer the versatility of the popular metal to metal seal with the added advantage of an elastomeric seal in the nose of the 37° flare. This design creates superior sealing performance in metal-to-metal seal applications with working pressures up to 20% more than standard stainless steel metal to metal 37° flare JIC tube fittings and adapters.

Markets:
• Oil and Gas
• Unmanned Submarines
• Marine
• Power Generation
• Pulp and Paper
• Semiconductor

Features/Benefits:
• Specifically engineered groove design that prevents nose collapse.
• Easily adaptable to inch tube, metric tube and hose giving it worldwide acceptance.
• Interchangeable with standard 37° flared fittings and features a replaceable standard O-ring seal.
• Exceeds all performance requirements of SAE J514.
• Vast selection of port end options, including SAE Straight Thread O-ring Boss (ORB), NPTF, BSPP-ED, BSPP-O-ring Retaining Ring (ORR), BSPP, BSPT, ISO 6149, Metric-O-ring Retaining Ring (ORR), and Metric-ED.
• Parker's Robust Port Stud on adjustable ports is manufactured with a longer locknut virtually eliminating washer damage and potential leaks, as well as making assembly mistake-proof.
• Available in stainless steel in sizes ¼“through 2” with working pressures up to 9000 psi.

Applications:
• Hydraulic fluid and gas handling connections
