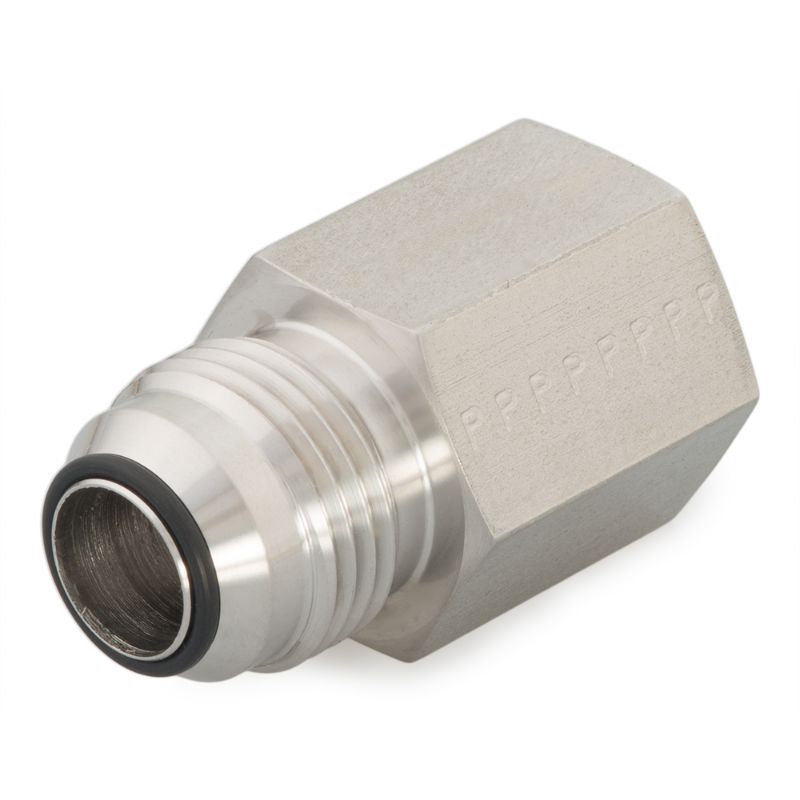

Parker 16 GTXO-SS - Triple-Lok® 2 Soft Seal 37° Flare JIC Tube Fittings and Adapters

Parker's Triple-Lok 2 soft seal 37° flare JIC tube fittings and adapters offer the unique and added benefit of an elastomeric seal in the nose, creating superior sealing performance in metal to metal seal applications.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 16 GTXO-SS

$175.56

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Division	Tube Fittings Division
Body Material	Stainless Steel	Maximum Dynamic Pressure	3600 psi
O-Ring Material	90 Durometer Nitrile	Specifications Met	SAE J514
Connection 3 Tube Outside Diameter	na	Connection 3 Size	na
Connection Type	Soft Seal Stainless Steel 37° Flare	Shape	Straight
Connection 2 Thread Size (inch)	1-11 1/2	Connection 2 Style	Female NPT/NPTF
Connection 2 Tube O.D. (inch)	na	Connection 1 Style	Male 37° Flare with O-ring Seal on Nose
Connection 1 Tube O.D. (inch)	1
