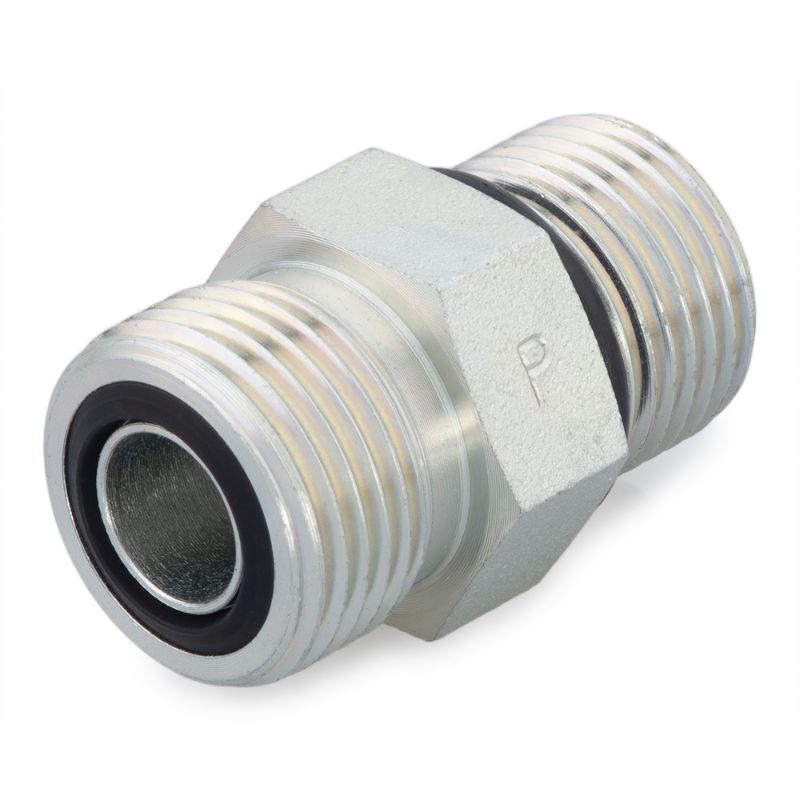

Parker 10 F5OLO-S - Seal-Lok O-Ring Face Seal Tube Fittings and Adapters

Name: Parker 10 F5OLO-S - Seal-Lok O-Ring Face Seal Tube Fittings and Adapters
SKU: 10 F5OLO-S
Price: 8.63 USD
Availability: InStock

Parker's Seal-Lok O-Ring Face Seal fitting design provides leak-free connections in applications with high-pressure, vibration and impulse environments. Using the new FastSeal nut, ORFS tube connections can be made in minutes without flanging or brazing.

AFP Availability:

65 In Stock

Richmond, VA	16
Grovetown, GA	10
Knoxville, TN	9
Fayetteville, NC	6
Norfolk, VA	5
Knoxville, TN	5
Johnson City, TN	3 (Pickup only)
Richmond, VA	2 (Pickup only)
Ashland, VA	2 (Pickup only)
Jacksonville, FL	2
Summerville, SC	2
Mooresville, NC	2
Sumter, SC	1

Partner Available:

905 In Stock

Brand Parker

Part No. 10 F5OLO-S

$8.63/each

Qty:

Products specifications

Attribute name	Attribute value
UOM	EA	Division	Tube Fittings Division
Maximum Dynamic Pressure	6000 psi	Shape	Straight
Body Material	Steel	O-Ring Material	90 Durometer Nitrile
Specifications Met	SAE J1453	Connection Type	O-ring Face Seal
Connection 1 Type	Male O-Ring Face Seal	Connection 2 Type	Male SAE-ORB
Connection 3 Type	na	Connection 4 Type	na
Connection 2 Thread Size	7/8-14 inch	Connection 3 Thread Size	na
Connection 1 Tube Outside Diameter	14, 15, 16 mm	Connection 2 Tube Outside Diameter	na
Connection 3 Tube Outside Diameter	na	Connection 4 Tube Outside Diameter	na
Dimensional Weight	0.047448291366906474 lb

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Lloyds Register Zertifikat LR2382861TA-O-Lok (PDF)
