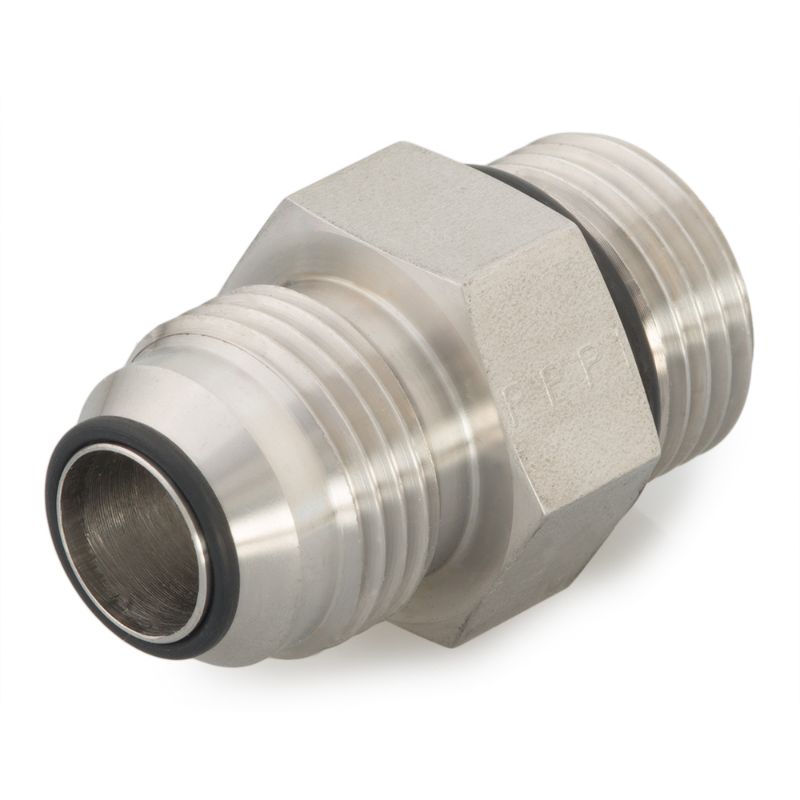

Parker 12 F5OXO-SS - Triple-Lok® 2 Soft Seal 37° Flare JIC Tube Fittings and Adapters

Parker's Triple-Lok 2 soft seal 37° flare JIC tube fittings and adapters offer the unique and added benefit of an elastomeric seal in the nose, creating superior sealing performance in metal to metal seal applications.

AFP Availability:	Quote Required
Partner Available:	1 Limited Stock

Brand Parker

Part No. 12 F5OXO-SS

$92.11/each

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Dynamic Pressure	6000 psi
Connection 3 Tube Outside Diameter	na	Specifications Met	SAE J514
Connection 3 Size	na	Body Material	Stainless Steel
O-Ring Material	90 Durometer Nitrile	Connection Type	Soft Seal Stainless Steel 37° Flare
Division	Tube Fittings Division	Shape	Straight
Connection 2 Thread Size (inch)	1 1/16-12	Connection 2 Style	Male SAE-ORB
Connection 2 Tube O.D. (inch)	na	Connection 1 Style	Male 37° Flare with O-ring Seal on Nose
Connection 1 Tube O.D. (inch)	3/4

Product resources

Compliance, Certifications & Safety

Lloyds Register Zertifikat LR2382868TA-Triple-Lok (PDF)

Literature and Reference Materials

Industrial Tube Fittings, Adapters and Equipment - Cat. 4300 (PDF)
