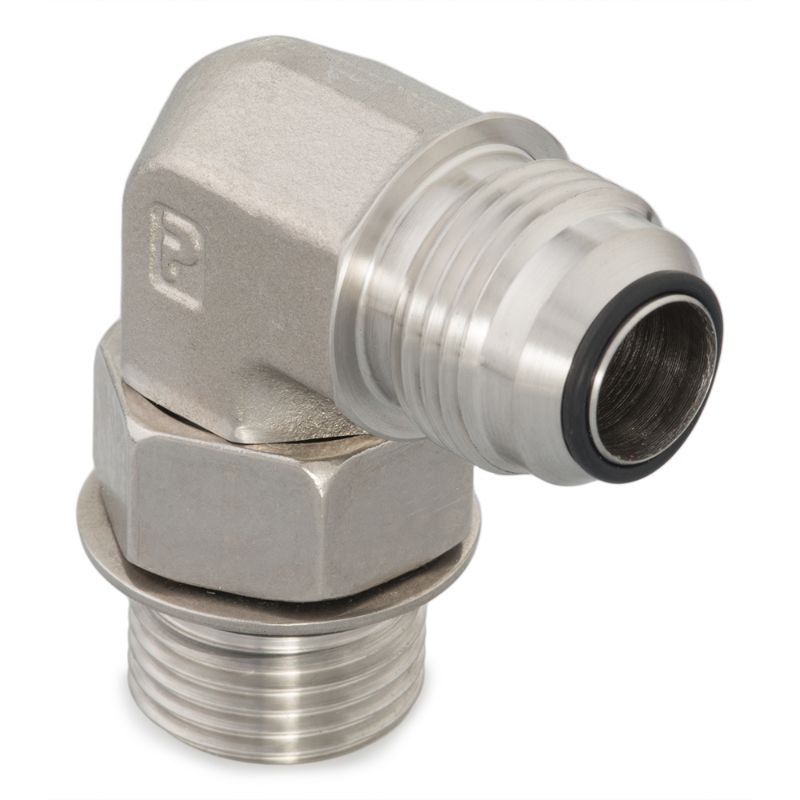

Parker 12 C5OXO-SS - Triple-Lok® 2 Soft Seal 37° Flare JIC Tube Fittings and Adapters

Parker's Triple-Lok 2 soft seal 37° flare JIC tube fittings and adapters offer the unique and added benefit of an elastomeric seal in the nose, creating superior sealing performance in metal to metal seal applications.

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 12 C5OXO-SS

$277.10/each

Products specifications

Attribute name	Attribute value
Connection Type	Soft Seal Stainless Steel 37° Flare	Division	Tube Fittings Division
O-Ring Material	90 Durometer Nitrile	Connection 3 Tube Outside Diameter	na
Connection 3 Size	na	Specifications Met	SAE J514
Maximum Dynamic Pressure	5400 psi	Body Material	Stainless Steel
Shape	90° Elbow	Connection 2 Thread Size (inch)	7/8-14
Connection 2 Style	Male SAE-ORB	Connection 2 Tube O.D. (inch)	na
Connection 1 Style	Male 37° Flare with O-ring Seal on Nose	Connection 1 Tube O.D. (inch)	3/4
