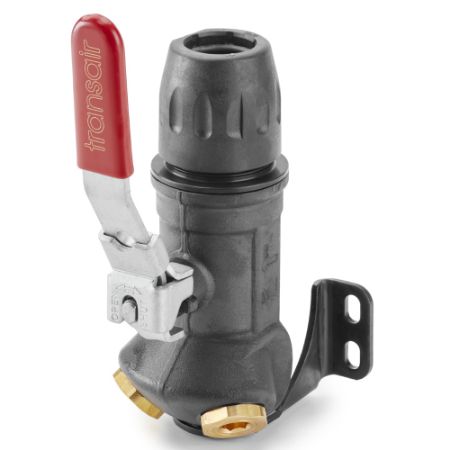

Transair® Wall Brackets for Aluminum Pipe

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Transair Wall Brackets make connecting machinery or tools to the supply line quick and easy. These brackets are rated for use in compressed air as well as industrial/inert gas applications. To match the needs/constraints of the environment, Parker offers a one (1), two (2), or three (3) port options. For extra control and safety over the media flow, we offer select wall brackets with an integrated ball valve. All wall brackets are equipped with a drain outlet for easy air or moisture drainage.

The “full bore” design of Transair wall brackets paired with the low coefficient of friction in the aluminum pipe ensures optimal flow throughout the compressed air system. All wall brackets are 100% recyclable, silicone free, and made from materials with no propagation of flame. All wall brackets conform to the UL94HB standard. Parker Hannifin warrants all Transair components to be free of defects in material and workmanship for 10 years from the date of installation.

Markets:
• Automotive Assembly
• Food & Beverage
• Packaging
• Industrial Plants
• Aerospace

Features / Benefits:
• Quick connection technology
• Modular and reusable
• Corrosion resistant
• Full-bore design
• Optimum flow rate
• 100% recyclable
• Faster installation
• Lower installation costs
• Immediate pressurization
• Lightweight
• 10-year Warranty

Applications:
• Compressed Air
• Vacuum
• Industrial/Inert Gasses (i.e. Argon, Nitrogen, Carbon Dioxide)

Maximum Working Pressure:
• 1/2” to 4”: 232psi (15,9bar) when the system is operated between -4 to +113 F (-20 to +46.1 C)
• 6”: 188psi (12,9 bar) when the system is operated between -4 to +140 F (-20 to + 60 C)

Maximum Working Temperature (1/2” to 4”):
• 185°F when system is operated at 101psi or lower
• 158°F when the system is operated at 145psi or lower
• 140°F when the system is operated at 188psi or lower
• 115°F when the system is operated at 232psi or lower

View as Grid List

Sort by

Display per page

Part No.	Availability	Partner Available	Price	UOM	Brand	Division	Division	Assembly Time	Shape	Minimum Operating Temperature	Industry	Technology	Assembly	Seal Material	Application	Configuration	Specifications Met	Maximum Operating Temperature	For Fluid Type	Quantity per Box	Connection 2 Type	Body Material	Weight	Product Type	Connection 1 Size	Connection 1 Type	Connection 2 Size	Maximum Operating Pressure	Connection 3 Size	Connection 3 Type	Pipe O.D. (mm)	Pipe O.D. (inch)	Connection Thread Size (inch)	Shape	Connection Type	Pipe Outside Diameter
6635 27 21	Quote Required	Quote Required	TBD		Transair	Low Pressure Connectors Europe Division	Fluid System Connectors Division	0.15 Hours	Straight	-20 °C	General Industrial	Fluid & Gas Handling	n/a	NBR	Inert Gases	Port to Port	EN 573.3	185 °F	Industrial Gas	1	Female BSPP	Treated Brass	1,653 lb	Wall Brackets	G 3/4 inch	Female BSPP	G 1/2 inch	232 psi 232 PSI (-4°F to +113°F)/16 bar (-20°C to 45°C) up to 100 mm 188 PSI (-4° to +140°F)/13 bar (-20°C to 60°C) up to 168 mm 101 PSI (-4° to +185°F)/7 bar ( -20°C to 85°C) up to 168 mm For Canada, Please refer to https://www.parker.com/c	G 1/4 inch	Female BSPP	N/A	N/A	3/4	Threaded 3 Port Wall Bracket BSP	Female Threaded BSP
6637 25 21	Quote Required	Quote Required	TBD		Parker	Low Pressure Connectors Europe Division	Low Pressure Connectors Europe Division	0.15 Hours	Straight	-4 °F	General Industrial	Fluid & Gas Handling	n/a	NBR	Inert Gases	Pipe to Port	ASME B31.1 - 31.9	185 °F	Air	2	Female BSPP	Technical Polymer	3,816 lb	Wall Brackets	25 mm	Pipe	G 1/2 inch	232 psi 232 PSI (-4°F to +113°F)/16 bar (-20°C to 45°C) up to 100 mm 188 PSI (-4° to +140°F)/13 bar (-20°C to 60°C) up to 168 mm 101 PSI (-4° to +185°F)/7 bar ( -20°C to 85°C) up to 168 mm For Canada, Please refer to https://www.parker.com/c	G 1/4 inch	Female BSPP	25	1	n/a	3 port Wall Bracket with Ball Valve
6638 25 22	Quote Required	151 In Stock	$208.17	EA	Parker	Fluid System Connectors Division	Low Pressure Connectors Europe Division	0.15 Hours	Straight	-4 °F	General Industrial	Fluid & Gas Handling	n/a	NBR	Compressed Air	Pipe to Port	ISO 8573 (Air Quality)	185 °F	Air	1	Female NPT	Technical Polymer	1,732 kg	Wall Brackets	25 mm	Pipe	NPT 1/2 inch	16 bar	NPT 1/4 inch	Female NPT	25	1	n/a	3 port Wall Bracket with Ball Valve
6639 17 21	Quote Required	Quote Required	TBD		Transair	Low Pressure Connectors Europe Division	Fluid System Connectors Division	0.15 Hours	Straight	-4 °F	General Industrial	Pneumatics	n/a	NBR	Compressed Air	Pipe to Port	TUV	85 °C	Industrial Gas	1	Female BSPP	Technical Polymer	1,168 lb	Wall Brackets	1/2 inch	Pipe	G 1/2 inch	16 bar	G 1/4 inch	Female BSPP	16.5	1/2	n/a	1 Port 45° Wall Bracket
6639 25 21	Quote Required	Quote Required	TBD		Parker	Low Pressure Connectors Europe Division	Low Pressure Connectors Europe Division	0.15 Hours	Straight	-20 °C	General Industrial	Pneumatics	n/a	NBR	Compressed Air	Pipe to Port	TUV	85 °C	Air	1	Female BSPP	Technical Polymer	1,179 lb	Wall Brackets	25 mm	Pipe	G 1/2 inch	16 bar	G 1/4 inch	Female BSPP	25	1	n/a	1 Port 45° Wall Bracket
6640 17 22	Quote Required	Quote Required	TBD		Parker	Fluid System Connectors Division	Fluid System Connectors Division	0.15 Hours	Straight	-20 °C	General Industrial	Fluid & Gas Handling	n/a	NBR	Inert Gases	Pipe to Port	ASME B31.1 - 31.9	85 °C	Air	1	Female NPT	Technical Polymer	0,526 kg	Wall Brackets	16.5 mm	Pipe	NPT 1/2 inch	232 psi 232 PSI (-4°F to +113°F)/16 bar (-20°C to 45°C) up to 100 mm 188 PSI (-4° to +140°F)/13 bar (-20°C to 60°C) up to 168 mm 101 PSI (-4° to +185°F)/7 bar ( -20°C to 85°C) up to 168 mm For Canada, Please refer to https://www.parker.com/c	NPT 1/4 inch	Female NPT	16.5	1/2	n/a	1 Port 45° Wall Bracket
6640 25 22	Quote Required	11 In Stock	$67.46	EA	Parker	Fluid System Connectors Division	Fluid System Connectors Division	0.15 Hours	Straight	-4 °F	General Industrial	Fluid & Gas Handling	n/a	NBR	Compressed Air	Pipe to Port	CE	85 °C	Industrial Gas	1	Female NPT	Treated Brass	0,526 kg	Wall Brackets	1 inch	Pipe	NPT 1/2 inch	16 bar	NPT 1/4 inch	Female NPT	25	1	n/a	1 Port 45° Wall Bracket
6642 22 22	Quote Required	Quote Required	TBD		Transair	Fluid System Connectors Division	Fluid System Connectors Division	0.15 Hours	Straight	-20 °C	General Industrial	Pneumatics	n/a	NBR	Inert Gases	Port to Port	CE	85 °C	Air	1	Female NPT	Treated Brass	1,060 lb	Wall Brackets	NPT 1/2 inch	Female NPT	NPT 1/2 inch	232 psi 232 PSI (-4°F to +113°F)/16 bar (-20°C to 45°C) up to 100 mm 188 PSI (-4° to +140°F)/13 bar (-20°C to 60°C) up to 168 mm 101 PSI (-4° to +185°F)/7 bar ( -20°C to 85°C) up to 168 mm For Canada, Please refer to https://www.parker.com/c	NPT 1/4 inch	Female NPT	N/A	N/A	1/2	Threaded 1 Port 45° Wall Bracket	Female Threaded NPT	25\|16/5 mm
6678 17 21	Quote Required	Quote Required	TBD		Transair	Low Pressure Connectors Europe Division	Low Pressure Connectors Europe Division	0.15 Hours	Straight	-20 °C	General Industrial	Pneumatics	n/a	NBR	Compressed Air	Pipe to Port	ISO 8573 (Air Quality)	85 °C	Industrial Gas	2	Female BSPP	Treated Brass	0,872 kg	Wall Brackets	1/2 inch	Pipe	G 1/2 inch	16 bar	G 1/4 inch	Female BSPP	16.5	1/2	n/a	1 Port 45° Wall Bracket with Ball Valve
6678 25 21	Quote Required	Quote Required	TBD		Transair	Low Pressure Connectors Europe Division	Low Pressure Connectors Europe Division	0.15 Hours	Straight	-20 °C	General Industrial	Pneumatics	n/a	NBR	Inert Gases	Pipe to Port	EN 755.2	85 °C	Industrial Gas	2	Female BSPP	Technical Polymer	1,529 kg	Wall Brackets	25 mm	Pipe	G 1/2 inch	16 bar	G 1/4 inch	Female BSPP	25	1	n/a	1 Port 45° Wall Bracket with Ball Valve
6679 17 22	Quote Required	Quote Required	TBD		Transair	Fluid System Connectors Division	Fluid System Connectors Division	0.15 Hours	Straight	-20 °C	General Industrial	Pneumatics	n/a	NBR	Industrial Gas	Pipe to Port	ISO 8573 (Air Quality)	185 °F	Air	1	Female NPT	Technical Polymer	1,920 lb	Wall Brackets	1/2 inch	Pipe	NPT 1/2 inch	232 psi 232 PSI (-4°F to +113°F)/16 bar (-20°C to 45°C) up to 100 mm 188 PSI (-4° to +140°F)/13 bar (-20°C to 60°C) up to 168 mm 101 PSI (-4° to +185°F)/7 bar ( -20°C to 85°C) up to 168 mm For Canada, Please refer to https://www.parker.com/c	NPT 1/4 inch	Female NPT	16.5	1/2	n/a	1 Port 45° Wall Bracket with Ball Valve
6679 25 22	Quote Required	6 In Stock	$217.21	EA	Parker	Fluid System Connectors Division	Low Pressure Connectors Europe Division	0.15 Hours	Straight	-4 °F	General Industrial	Fluid & Gas Handling	n/a	NBR	Inert Gases	Pipe to Port	EN 755.2	85 °C	Air	1	Female NPT	Technical Polymer	1,528 kg	Wall Brackets	25 mm	Pipe	NPT 1/2 inch	232 psi 232 PSI (-4°F to +113°F)/16 bar (-20°C to 45°C) up to 100 mm 188 PSI (-4° to +140°F)/13 bar (-20°C to 60°C) up to 168 mm 101 PSI (-4° to +185°F)/7 bar ( -20°C to 85°C) up to 168 mm For Canada, Please refer to https://www.parker.com/c	NPT 1/4 inch	Female NPT	25	1	n/a	1 Port 45° Wall Bracket with Ball Valve
6681 17 21	Quote Required	Quote Required	TBD		Parker	Low Pressure Connectors Europe Division	Low Pressure Connectors Europe Division	0.15 Hours	Straight	-20 °C	General Industrial	Fluid & Gas Handling	n/a	NBR	Inert Gases	Pipe to Port	ASME B31.1 - 31.9	185 °F	Air	1	Female BSPP	Treated Brass	0,930 lb	Wall Brackets	1/2 inch	Pipe	G 1/2 inch	16 bar	G 1/4 inch	Female BSPP	16.5	1/2	n/a	2 Port 90° Wall Bracket
6681 25 21	Quote Required	Quote Required	TBD		Transair	Low Pressure Connectors Europe Division	Low Pressure Connectors Europe Division	0.15 Hours	Straight	-4 °F	General Industrial	Pneumatics	n/a	NBR	Inert Gases	Pipe to Port	TUV	185 °F	Industrial Gas	1	Female BSPP	Treated Brass	1,014 lb	Wall Brackets	25 mm	Pipe	G 1/2 inch	16 bar	G 1/4 inch	Female BSPP	25	1	n/a	2 Port 90° Wall Bracket
6682 17 21	Quote Required	Quote Required	TBD		Transair	Low Pressure Connectors Europe Division	Low Pressure Connectors Europe Division	0.15 Hours	Straight	-4 °F	General Industrial	Pneumatics	n/a	NBR	Industrial Gas	Pipe to Port	EN 573.3	85 °C	Industrial Gas	1	Female BSPP	Technical Polymer	0,660 kg	Wall Brackets	16.5 mm	Pipe	G 1/2 inch	16 bar	G 1/4 inch	Female BSPP	16.5	1/2	n/a	2 Port 45° Wall Bracket
6682 25 21	Quote Required	Quote Required	TBD		Transair	Low Pressure Connectors Europe Division	Fluid System Connectors Division	0.15 Hours	Straight	-4 °F	General Industrial	Fluid & Gas Handling	n/a	NBR	Inert Gases	Pipe to Port	CE 2014/68/EU	85 °C	Air	1	Female BSPP	Technical Polymer	1,499 lb	Wall Brackets	25 mm	Pipe	G 1/2 inch	16 bar	G 1/4 inch	Female BSPP	25	1	n/a	2 Port 45° Wall Bracket
6684 17 22	Quote Required	39 In Stock	$69.50	EA	Parker	Fluid System Connectors Division	Fluid System Connectors Division	0.15 Hours	Straight	-20 °C	General Industrial	Pneumatics	n/a	NBR	Industrial Gas	Pipe to Port	ISO 8573 (Air Quality)	85 °C	Air	1	Female NPT	Treated Brass	0,453 kg	Wall Brackets	1/2 inch	Pipe	NPT 1/2 inch	232 psi 232 PSI (-4°F to +113°F)/16 bar (-20°C to 45°C) up to 100 mm 188 PSI (-4° to +140°F)/13 bar (-20°C to 60°C) up to 168 mm 101 PSI (-4° to +185°F)/7 bar ( -20°C to 85°C) up to 168 mm For Canada, Please refer to https://www.parker.com/c	NPT 1/4 inch	Female NPT	16.5	1/2	n/a	2 Port 90° Wall Bracket
6684 25 22	Quote Required	10 In Stock	$66.38	EA	Transair	Fluid System Connectors Division	Low Pressure Connectors Europe Division	0.15 Hours	Straight	-20 °C	General Industrial	Pneumatics	n/a	NBR	Inert Gases	Pipe to Port	EN 755.8	85 °C	Industrial Gas	1	Female NPT	Treated Brass	0,394 kg	Wall Brackets	25 mm	Pipe	NPT 1/2 inch	16 bar	NPT 1/4 inch	Female NPT	25	1	n/a	2 Port 90° Wall Bracket
6688 22 22	Quote Required	Quote Required	TBD		Parker	Fluid System Connectors Division	Low Pressure Connectors Europe Division	0.2 Hours	Straight	-20 °C	General Industrial	Fluid & Gas Handling	n/a	NBR	Compressed Air	Port to Port	CE	185 °F	Industrial Gas	1	Female NPT	Treated Brass	0,930 lb	Wall Brackets	NPT 1/2 inch	Female NPT	NPT 1/2 inch	16 bar	NPT 1/4 inch	Female NPT	N/A	N/A	1/2	Threaded 2 Port 90° Wall Bracket	Female Threaded NPT	1"\|1/2" inch
6689 17 22	Quote Required	Quote Required	TBD		Parker	Fluid System Connectors Division	Low Pressure Connectors Europe Division	0.15 Hours	Straight	-20 °C	General Industrial	Fluid & Gas Handling	n/a	NBR	Inert Gases	Pipe to Port	EN 755.2	85 °C	Air	1	Female NPT	Treated Brass	1,470 lb	Wall Brackets	16.5 mm	Pipe	NPT 1/2 inch	16 bar	NPT 1/4 inch	Female NPT	16.5	1/2	n/a	2 Port 45° Wall Bracket
