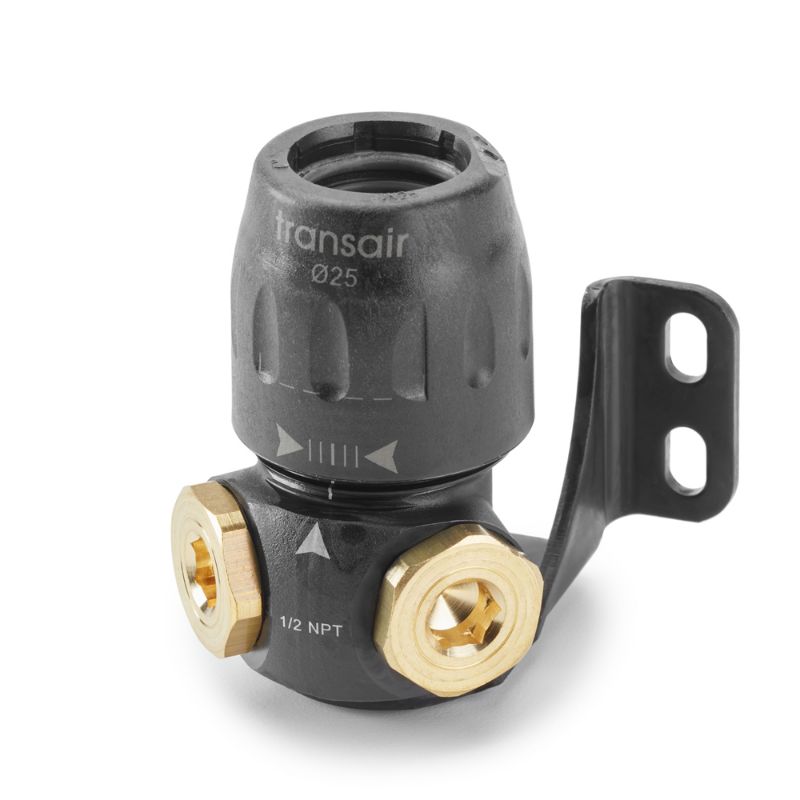

Parker 6684 17 22 - Transair® Wall Brackets for Aluminum Pipe

Transair® Wall Brackets are designed for quick connection of machinery or tools to compressed air piping systems or inert gas supply lines.

Availability:	Quote Required
Partner Available:	39 In Stock

Brand Parker

Part No. 6684 17 22

$69.50

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Brand	Parker
Division	Fluid System Connectors Division	Assembly Time	0.15 Hours
Shape	Straight	Maximum Operating Temperature	85 °C
Minimum Operating Temperature	-20 °C	Industry	General Industrial
Division	Fluid System Connectors Division	Assembly	n/a
Connection 2 Type	Female NPT	Seal Material	NBR
Application	Industrial Gas	Technology	Pneumatics
Specifications Met	ISO 8573 (Air Quality)	For Fluid Type	Air
Connection 1 Type	Pipe	Quantity per Box	1
Body Material	Treated Brass	Connection 1 Size	1/2 inch
Configuration	Pipe to Port	Product Type	Wall Brackets
Connection 2 Size	NPT 1/2 inch	Maximum Operating Pressure	232 psi 232 PSI (-4°F to +113°F)/16 bar (-20°C to 45°C) up to 100 mm 188 PSI (-4° to +140°F)/13 bar (-20°C to 60°C) up to 168 mm 101 PSI (-4° to +185°F)/7 bar ( -20°C to 85°C) up to 168 mm For Canada, Please refer to https://www.parker.com/c
Connection 3 Size	NPT 1/4 inch	Connection 3 Type	Female NPT
Weight	0,453 kg	Pipe O.D. (mm)	16.5
Pipe O.D. (inch)	1/2	Connection Thread Size (inch)	n/a
Shape	2 Port 90° Wall Bracket
