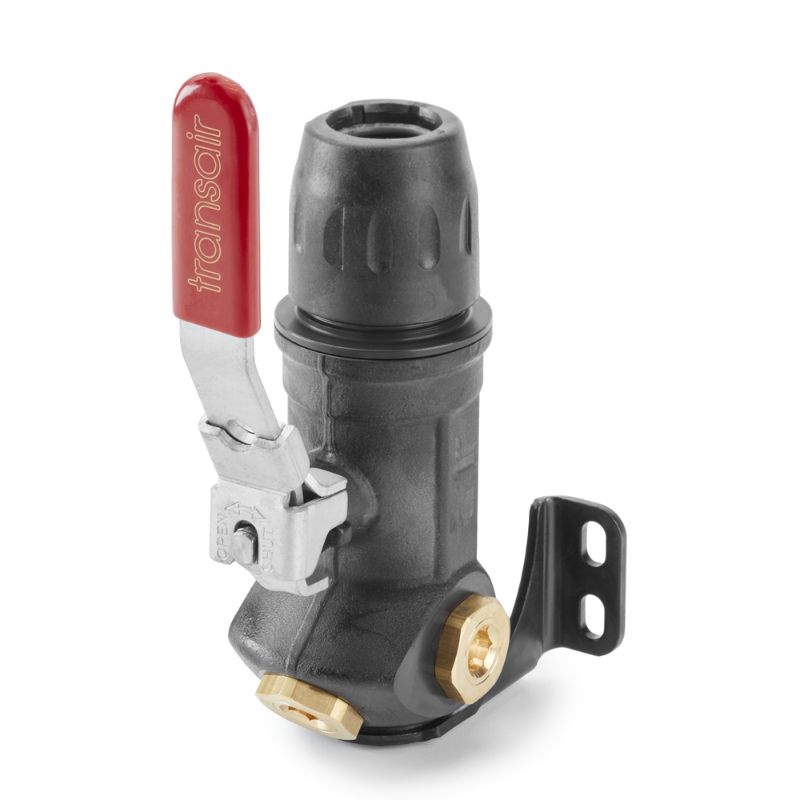

Parker 6638 25 22 - Transair® Wall Brackets for Aluminum Pipe

Transair® Wall Brackets are designed for quick connection of machinery or tools to compressed air piping systems or inert gas supply lines.

Availability:	Quote Required
Partner Available:	151 In Stock

Brand Parker

Part No. 6638 25 22

$208.17

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Brand	Parker
Assembly Time	0.15 Hours	Shape	Straight
Minimum Operating Temperature	-4 °F	Industry	General Industrial
Technology	Fluid & Gas Handling	Division	Fluid System Connectors Division
Assembly	n/a	Connection 2 Type	Female NPT
Division	Low Pressure Connectors Europe Division	Seal Material	NBR
Application	Compressed Air	Specifications Met	ISO 8573 (Air Quality)
Maximum Operating Temperature	185 °F	For Fluid Type	Air
Connection 1 Type	Pipe	Quantity per Box	1
Maximum Operating Pressure	16 bar	Body Material	Technical Polymer
Configuration	Pipe to Port	Connection 1 Size	25 mm
Weight	1,732 kg	Product Type	Wall Brackets
Connection 2 Size	NPT 1/2 inch	Connection 3 Size	NPT 1/4 inch
Connection 3 Type	Female NPT	Pipe O.D. (mm)	25
Pipe O.D. (inch)	1	Connection Thread Size (inch)	n/a
Shape	3 port Wall Bracket with Ball Valve
