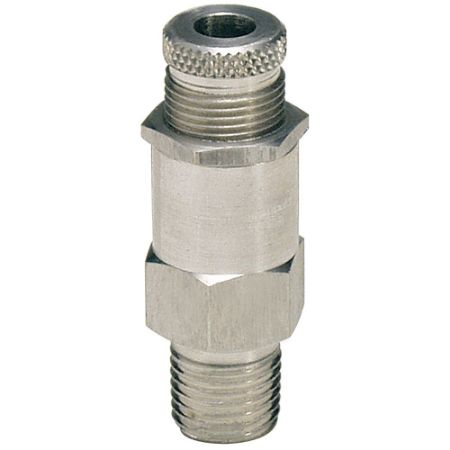

Relief Valves - RV Series
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
The RV01 series is a compact relief valve that relieves excess pressure, thus protecting the pneumatic circuit or system. It has a compact lightweight aluminum construction with high relief capacity (70.39 Cv @ 150 PSI). The adjustment range is called out within the part number and set at factory.
Markets
• General Industrial
• Factory Automation
• Automotive
Features/Benefits
• Compact and light weight construction
• High relief capacity
Applications
• General Assembly
• Packaging
• Conveyance
• General Pneumatics
Additional Information
• Connection: Male
• Relief Range: 10 to 200 psig (or 0.7 to 14 bar)
• Maximum Inlet Pressure: 300 psig (or 20.7 bar)
• Adjustment: Control Knurled Knob
• Material Aluminum Body, Steel Locking Nut and Spring, Plastic Poppet, Nitrile Seat
• Thread Size: 1/4"
• Thread Type: NPT
• Temperature Range: 32°F to 200°F (or 0°C to 93°C)
| Action | Part No. | Availability | Partner Available | Price | UOM | Maximum Inlet Pressure Rating | Adjustment Screw Material | Adjustment Mechanism | Pressure Relief Setting | Port Size | Port Type | Division | Body Material | Operating Temperature | Seal Material | Pressure Relief Setting (psig) | Pressure Range (psig) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| RV01A1N010 | Quote Required | $32.18 | EA | 20.7 barg | Steel Locking Nut and Spring | Knurled Knob | 10 psig | 1/4" | NPT | Pneumatic Division | Aluminum | +32° to +200° °F | Buna | 10 | 10-55 | ||
| RV01A1N015 | Quote Required | $32.18 | EA | 20.7 barg | Steel Locking Nut and Spring | Knurled Knob | 1.05 barg | 1/4" | NPT | Pneumatic Division | Aluminum | +32° to +200° °F | Buna | 15 | 10-55 | ||
| RV01A1N020 | Quote Required | $32.18 | EA | 20.7 barg | Steel Locking Nut and Spring | Knurled Knob | 1.4 barg | 1/4" | NPT | Pneumatic Division | Aluminum | +32° to +200° °F | Buna | 20 | 10-55 | ||
| RV01A1N025 | Quote Required | TBD | 300 psig | Steel Locking Nut and Spring | Knurled Knob | 1.75 barg | 1/4" | NPT | Pneumatic Division | Aluminum | 0° to +93° °C | Buna | 25 | 10-55 | |||
| RV01A1N030 | Quote Required | $32.18 | EA | 300 psig | Steel Locking Nut and Spring | Knurled Knob | 30 psig | 1/4" | NPT | Pneumatic Division | Aluminum | 0° to +93° °C | Buna | 30 | 10-55 | ||
| RV01A1N035 | Quote Required | $32.18 | EA | 20.7 barg | Steel Locking Nut and Spring | Knurled Knob | 35 psig | 1/4" | NPT | Pneumatic Division | Aluminum | 0° to +93° °C | Buna | 35 | 10-55 | ||
| RV01A1N040 | Quote Required | $32.18 | EA | 20.7 barg | Steel Locking Nut and Spring | Knurled Knob | 40 psig | 1/4" | NPT | Pneumatic Division | Aluminum | 0° to +93° °C | Buna | 40 | 10-55 | ||
| RV01A1N045 | Quote Required | $32.18 | EA | 20.7 barg | Steel Locking Nut and Spring | Knurled Knob | 45 psig | 1/4" | NPT | Pneumatic Division | Aluminum | +32° to +200° °F | Buna | 45 | 10-55 | ||
| RV01A1N050 | Quote Required | 3 In Stock | $32.18 | EA | 20.7 barg | Steel Locking Nut and Spring | Knurled Knob | 3.5 barg | 1/4" | NPT | Pneumatic Division | Aluminum | 0° to +93° °C | Buna | 50 | 10-55 | |
| RV01A1N055 | Quote Required | $32.18 | EA | 300 psig | Steel Locking Nut and Spring | Knurled Knob | 3.85 barg | 1/4" | NPT | Pneumatic Division | Aluminum | 0° to +93° °C | Buna | 55 | 10-55 | ||
| RV01A1N060 | Quote Required | TBD | 300 psig | Steel Locking Nut and Spring | Knurled Knob | 60 psig | 1/4" | NPT | Pneumatic Division | Aluminum | +32° to +200° °F | Buna | 60 | 60-100 | |||
| RV01A1N065 | Quote Required | 5 In Stock | $32.18 | EA | 300 psig | Steel Locking Nut and Spring | Knurled Knob | 65 psig | 1/4" | NPT | Pneumatic Division | Aluminum | +32° to +200° °F | Buna | 65 | 60-100 | |
| RV01A1N070 | Quote Required | $32.18 | EA | 300 psig | Steel Locking Nut and Spring | Knurled Knob | 70 psig | 1/4" | NPT | Pneumatic Division | Aluminum | 0° to +93° °C | Buna | 70 | 60-100 | ||
| RV01A1N075 | Quote Required | $32.18 | EA | 300 psig | Steel Locking Nut and Spring | Knurled Knob | 5.25 barg | 1/4" | NPT | Pneumatic Division | Aluminum | 0° to +93° °C | Buna | 75 | 60-100 | ||
| RV01A1N080 | Quote Required | $32.18 | EA | 20.7 barg | Steel Locking Nut and Spring | Knurled Knob | 5.6 barg | 1/4" | NPT | Pneumatic Division | Aluminum | +32° to +200° °F | Buna | 80 | 60-100 | ||
| RV01A1N085 | Quote Required | $32.18 | EA | 300 psig | Steel Locking Nut and Spring | Knurled Knob | 5.95 barg | 1/4" | NPT | Pneumatic Division | Aluminum | 0° to +93° °C | Buna | 85 | 60-100 | ||
| RV01A1N090 | Quote Required | $32.18 | EA | 300 psig | Steel Locking Nut and Spring | Knurled Knob | 6.3 barg | 1/4" | NPT | Pneumatic Division | Aluminum | +32° to +200° °F | Buna | 90 | 60-100 | ||
| RV01A1N095 | Quote Required | $32.18 | EA | 300 psig | Steel Locking Nut and Spring | Knurled Knob | 6.65 barg | 1/4" | NPT | Pneumatic Division | Aluminum | +32° to +200° °F | Buna | 95 | 60-100 | ||
| RV01A1N100 | Quote Required | 52 In Stock | $32.18 | EA | 300 psig | Steel Locking Nut and Spring | Knurled Knob | 7 barg | 1/4" | NPT | Pneumatic Division | Aluminum | +32° to +200° °F | Buna | 100 | 60-100 | |
| RV01A1N100V | Quote Required | $45.33 | EA | 300 psig | Steel Locking Nut and Spring | Knurled Knob | 7 barg | 1/4" | NPT | Pneumatic Division | Aluminum | +32° to +200° °F | Viton | 100 | 60-100 |
