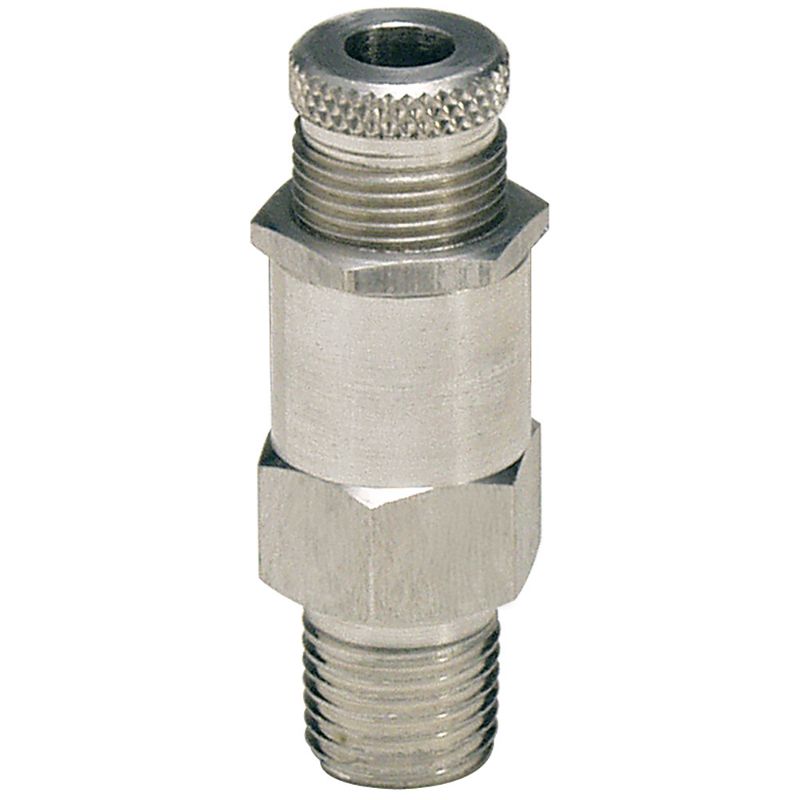

Parker RV01A1N010 - Relief Valves - RV Series

RV01 series is a compact relief valve that relieves excess pressure, thus protecting the pneumatic circuit or system.

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. RV01A1N010

$33.79/each

Products specifications

Attribute name	Attribute value
Port Size	1/4"	Operating Temperature	+32° to +200° °F
Body Material	Aluminum	Adjustment Screw Material	Steel Locking Nut and Spring
Port Type	NPT	Adjustment Mechanism	Knurled Knob
Maximum Inlet Pressure Rating	20.7 barg	Division	Pneumatic Division
Pressure Relief Setting	10 psig	Seal Material	Buna
Pressure Relief Setting (psig)	10	Pressure Range (psig)	10-55
