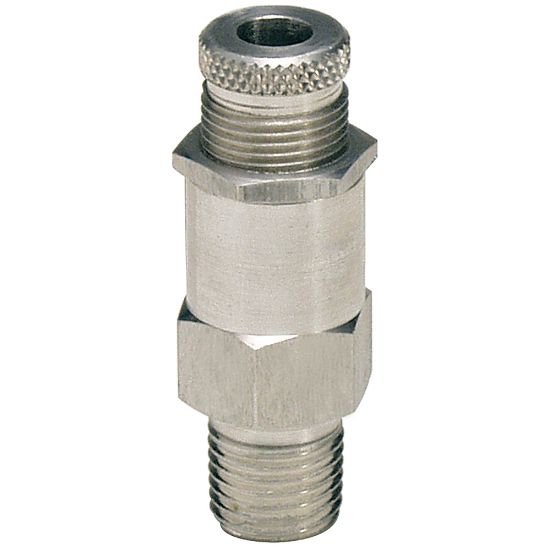

Parker RV01A1N080 - Relief Valves - RV Series

RV01 series is a compact relief valve that relieves excess pressure, thus protecting the pneumatic circuit or system.

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. RV01A1N080

$33.79/each

Products specifications

Attribute name	Attribute value
Pressure Relief Setting	5.6 barg	Port Size	1/4"
Body Material	Aluminum	Operating Temperature	+32° to +200° °F
Adjustment Screw Material	Steel Locking Nut and Spring	Port Type	NPT
Maximum Inlet Pressure Rating	20.7 barg	Adjustment Mechanism	Knurled Knob
Division	Pneumatic Division	Seal Material	Buna
Pressure Relief Setting (psig)	80	Pressure Range (psig)	60-100
