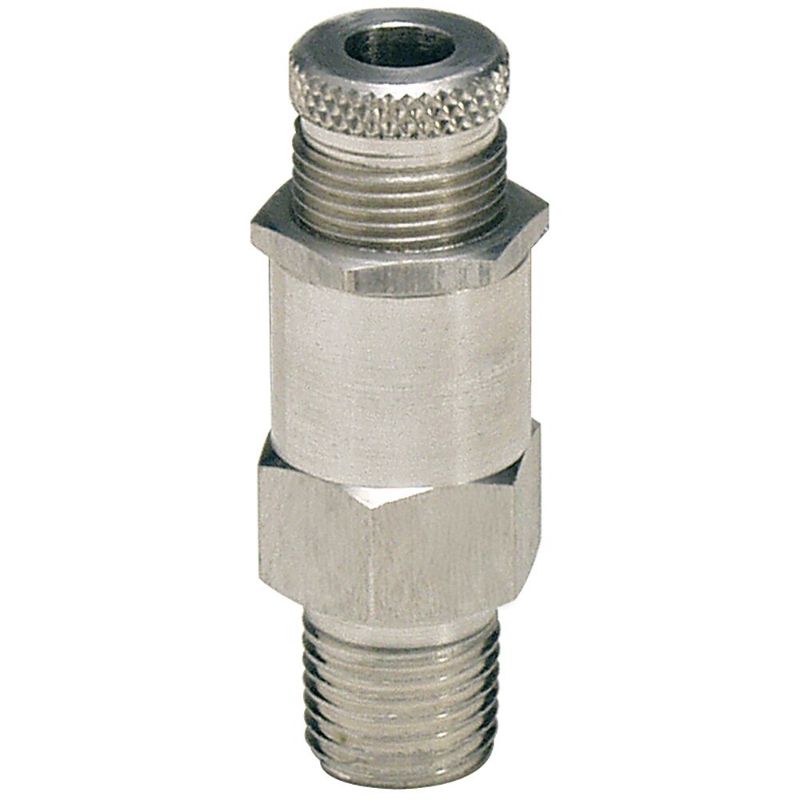

Parker RV01A1N055 - Relief Valves - RV Series

RV01 series is a compact relief valve that relieves excess pressure, thus protecting the pneumatic circuit or system.

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. RV01A1N055

$33.79/each

Products specifications

Attribute name	Attribute value
UOM	EA	Division	Pneumatic Division
Pressure Relief Setting	3.85 barg	Body Material	Aluminum
Port Size	1/4"	Operating Temperature	0° to +93° °C
Port Type	NPT	Adjustment Screw Material	Steel Locking Nut and Spring
Maximum Inlet Pressure Rating	300 psig	Adjustment Mechanism	Knurled Knob
Pressure Relief Setting (psig)	55	Pressure Range (psig)	10-55
Seal Material	Buna
