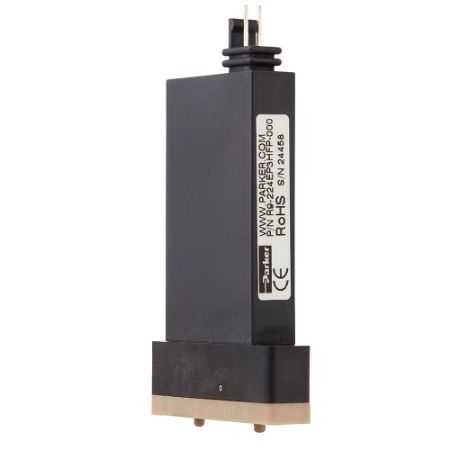

R9 Valve - 9 mm Miniature Diaphragm Isolation Valve

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

The Parker R9 valve delivers the liquid flow capabilities of a 16 mm valve in a 9 mm envelope. The R9 valve includes a 44% reduction in width with unrivaled flows and pressures up to 100 psi. Designed to offer low carryover performance with particulate and crystallization resistance, this valve is ideally suited for today’s demanding liquid handling applications. The R9 supports the performance requirements of current and future laboratory and portable instrumentation.

Markets:
• Clinical Diagnostics
• Analytical Chemistry
• Agent Detection
• Environmental Monitoring

Features/Benefits
• High pressure options available up to 100 PSI (6.9 bar)
• Easy mounting on 9 mm centers side to side, accommodating dispense over 96 well microplates
• Low unswept volume to minimize carryover
• Particulate and crystallization resistant
• 100% tested leak rate ensures a leak tight seal on every valve
• CE, REACH, and RoHS compliant

Applications:
• Sampling, Wash & Waste
• Reagent Addition
• Flow Control
• Clinical Diagnostics Instrumentation
• Hematology
• Automated Slide Stainers
• DNA/RNA Synthesis

View as Grid List

Sort by

Display per page

Part No.	Availability	Partner Available	Price	Seal Material	Maximum Operating Pressure	Configuration	Input Voltage	Maximum Operating Temperature	Actuation Type	Minimum Operating Temperature	Division	Operation Type	For Fluid Type	Standard Lead Time	Out of Stock Lead Time	Leak Rate	Body Material	Mounting Type	Cycles per Lifetime	Orifice Size	Max Order Quantity	Valve Type	Connection Type	Electrical Connection	Weight	Height	Shipping Weight	Width	Length	Function	Flow Rate	Response Time	Control Method	Connection Size	Maximum Flow Rate	Power Consumption	Industry Application	Valve Type	Elastomer	Orifice Size	Mounting Style	Electrical Connection	Maximum Operating Voltage	Application Pressure Requirement
R9-212EP3H4F-000	Quote Required	Quote Required	TBD	EPDM	100 psi	n/a	12 VDC	50 °C	Solenoid	32 °F	Precision Fluidics Division	Electronic	Liquids	20	40	Bubble Tight	PEEK	Mounting Screw	10 Million	0.030 inch	10	Diaphragm Rocker Isolation Valve	Threaded Port Connections	Wire Leads	1.35 oz	1.46 inch	0.35 oz	8.7 mm	68.8 mm	2-Way, Normally Closed (NC)	Up to 900 ml/min	< 18 ms max cycling	Hit and hold circuit	1/4-28 UNF threaded port connections	900 ml/min	1.8 W	Clinical Diagnostics, Analytical Chemistry, Agent Detection, Environmental Monitoring, Sampling, Reagent Addition, Flow Control,Wash, Waste	2-Way Normally Closed	EPDM	0.030 in (0.76 mm)	1/4-28	18 in(46 cm) Flying Leads	12 Volt	VAC to 100 psi (6.9 bar)
R9-212EP3H4P-000	Quote Required	Quote Required	TBD	EPDM	6.9 bar	n/a	12 VDC	122 °F	Solenoid	0 °C	Precision Fluidics Division	Electronic	Liquids	20	40	Bubble Tight	PEEK	Mounting Screw	10 Million	0.030 inch	10	Diaphragm Rocker Isolation Valve	Threaded Port Connections	2.54 mm pins	1.35 oz	37 mm	0.35 oz	8.7 mm	68.8 mm	2-Way, Normally Closed (NC)	Up to 900 ml/min	< 18 ms max cycling	Hit and hold circuit	1/4-28 UNF threaded port connections	900 ml/min	1.8 W	Clinical Diagnostics, Analytical Chemistry, Agent Detection, Environmental Monitoring, Sampling, Reagent Addition, Flow Control,Wash, Waste	2-Way Normally Closed	EPDM	0.030 in (0.76 mm)	1/4-28	2.54 mm Male Pins	12 Volt	VAC to 100 psi (6.9 bar)
R9-212EP3HFF-000	Quote Required	Quote Required	TBD	EPDM	100 psi	n/a	12 VDC	50 °C	Solenoid	32 °F	Precision Fluidics Division	Electronic	Liquids	20	40	Bubble Tight	PEEK	Mounting Screw	10 Million	0.030 inch	10	Diaphragm Rocker Isolation Valve	Manifold Face Seal	Wire Leads	38.4 g	37 mm	0.35 oz	0.34 inch	2.71 inch	2-Way, Normally Closed (NC)	Up to 900 ml/min	< 18 ms max cycling	Hit and hold circuit	Manifold face seal	900 ml/min	1.8 W	Clinical Diagnostics, Analytical Chemistry, Agent Detection, Environmental Monitoring, Sampling, Reagent Addition, Flow Control,Wash, Waste	2-Way Normally Closed	EPDM	0.030 in (0.76 mm)	Face Seal Manifold Mount	18 in(46 cm) Flying Leads	12 Volt	VAC to 100 psi (6.9 bar)
R9-212EP3HFP-000	Quote Required	Quote Required	TBD	EPDM	6.9 bar	n/a	12 VDC	50 °C	Solenoid	32 °F	Precision Fluidics Division	Electronic	Liquids	20	40	Bubble Tight	PEEK	Mounting Screw	10 Million	0.030 inch	10	Diaphragm Rocker Isolation Valve	Manifold Face Seal	2.54 mm pins	1.35 oz	37 mm	0.35 oz	0.34 inch	68.8 mm	2-Way, Normally Closed (NC)	Up to 900 ml/min	< 18 ms max cycling	Hit and hold circuit	Manifold face seal	900 ml/min	1.8 W	Clinical Diagnostics, Analytical Chemistry, Agent Detection, Environmental Monitoring, Sampling, Reagent Addition, Flow Control,Wash, Waste	2-Way Normally Closed	EPDM	0.030 in (0.76 mm)	Face Seal Manifold Mount	2.54 mm Male Pins	12 Volt	VAC to 100 psi (6.9 bar)
R9-212EP3HMF-000	Quote Required	Quote Required	TBD	EPDM	100 psi	n/a	12 VDC	122 °F	Solenoid	0 °C	Precision Fluidics Division	Electronic	Liquids	20	40	Bubble Tight	PEEK	Mounting Screw	10 Million	0.76 mm	10	Diaphragm Rocker Isolation Valve	Threaded Port Connections	Wire Leads	1.35 oz	1.46 inch	0.35 oz	8.7 mm	68.8 mm	2-Way, Normally Closed (NC)	Up to 900 ml/min	< 18 ms max cycling	Hit and hold circuit	M6 threaded port connections	900 ml/min	1.8 W	Clinical Diagnostics, Analytical Chemistry, Agent Detection, Environmental Monitoring, Sampling, Reagent Addition, Flow Control,Wash, Waste	2-Way Normally Closed	EPDM	0.030 in (0.76 mm)	M6	18 in(46 cm) Flying Leads	12 Volt	VAC to 100 psi (6.9 bar)
R9-212EP3HMP-000	Quote Required	Quote Required	TBD	EPDM	100 psi	n/a	12 VDC	122 °F	Solenoid	0 °C	Precision Fluidics Division	Electronic	Liquids	20	40	Bubble Tight	PEEK	Mounting Screw	10 Million	0.030 inch	10	Diaphragm Rocker Isolation Valve	Threaded Port Connections	2.54 mm pins	38.4 g	37 mm	0.35 oz	8.7 mm	68.8 mm	2-Way, Normally Closed (NC)	Up to 900 ml/min	< 18 ms max cycling	Hit and hold circuit	M6 threaded port connections	900 ml/min	1.8 W	Clinical Diagnostics, Analytical Chemistry, Agent Detection, Environmental Monitoring, Sampling, Reagent Addition, Flow Control,Wash, Waste	2-Way Normally Closed	EPDM	0.030 in (0.76 mm)	M6	2.54 mm Male Pins	12 Volt	VAC to 100 psi (6.9 bar)
R9-212EP3L4F-000	Quote Required	Quote Required	TBD	EPDM	60 psi	n/a	12 VDC	122 °F	Solenoid	32 °F	Precision Fluidics Division	Electronic	Liquids	20	40	Bubble Tight	PEEK	Mounting Screw	10 Million	0.76 mm	10	Diaphragm Rocker Isolation Valve	Threaded Port Connections	Wire Leads	38.4 g	37 mm	0.35 oz	0.34 inch	68.8 mm	2-Way, Normally Closed (NC)	Up to 600 ml/min	< 18 ms max cycling	Hit and hold circuit	1/4-28 UNF threaded port connections	600 ml/min	1.1 W	Clinical Diagnostics, Analytical Chemistry, Agent Detection, Environmental Monitoring, Sampling, Reagent Addition, Flow Control,Wash, Waste	2-Way Normally Closed	EPDM	0.030 in (0.76 mm)	1/4-28	18 in(46 cm) Flying Leads	12 Volt	VAC to 60 psi (4.1 bar)
R9-212EP3L4P-000	Quote Required	Quote Required	TBD	EPDM	60 psi	n/a	12 VDC	50 °C	Solenoid	0 °C	Precision Fluidics Division	Electronic	Liquids	20	40	Bubble Tight	PEEK	Mounting Screw	10 Million	0.030 inch	10	Diaphragm Rocker Isolation Valve	Threaded Port Connections	2.54 mm pins	1.35 oz	1.46 inch	0.35 oz	0.34 inch	68.8 mm	2-Way, Normally Closed (NC)	Up to 600 ml/min	< 18 ms max cycling	Hit and hold circuit	1/4-28 UNF threaded port connections	600 ml/min	1.1 W	Clinical Diagnostics, Analytical Chemistry, Agent Detection, Environmental Monitoring, Sampling, Reagent Addition, Flow Control,Wash, Waste	2-Way Normally Closed	EPDM	0.030 in (0.76 mm)	1/4-28	2.54 mm Male Pins	12 Volt	VAC to 60 psi (4.1 bar)
R9-212EP3LFF-000	Quote Required	Quote Required	TBD	EPDM	4.1 bar	n/a	12 VDC	122 °F	Solenoid	32 °F	Precision Fluidics Division	Electronic	Liquids	20	40	Bubble Tight	PEEK	Mounting Screw	10 Million	0.030 inch	10	Diaphragm Rocker Isolation Valve	Manifold Face Seal	Wire Leads	1.35 oz	37 mm	0.35 oz	0.34 inch	68.8 mm	2-Way, Normally Closed (NC)	Up to 600 ml/min	< 18 ms max cycling	Hit and hold circuit	Manifold face seal	600 ml/min	1.1 W	Clinical Diagnostics, Analytical Chemistry, Agent Detection, Environmental Monitoring, Sampling, Reagent Addition, Flow Control,Wash, Waste	2-Way Normally Closed	EPDM	0.030 in (0.76 mm)	Face Seal Manifold Mount	18 in(46 cm) Flying Leads	12 Volt	VAC to 60 psi (4.1 bar)
R9-212EP3LFP-000	Quote Required	Quote Required	TBD	EPDM	4.1 bar	n/a	12 VDC	50 °C	Solenoid	32 °F	Precision Fluidics Division	Electronic	Liquids	20	40	Bubble Tight	PEEK	Mounting Screw	10 Million	0.030 inch	10	Diaphragm Rocker Isolation Valve	Manifold Face Seal	2.54 mm pins	1.35 oz	1.46 inch	0.35 oz	8.7 mm	2.71 inch	2-Way, Normally Closed (NC)	Up to 600 ml/min	< 18 ms max cycling	Hit and hold circuit	Manifold face seal	600 ml/min	1.1 W	Clinical Diagnostics, Analytical Chemistry, Agent Detection, Environmental Monitoring, Sampling, Reagent Addition, Flow Control,Wash, Waste	2-Way Normally Closed	EPDM	0.030 in (0.76 mm)	Face Seal Manifold Mount	2.54 mm Male Pins	12 Volt	VAC to 60 psi (4.1 bar)
R9-212EP3LMF-000	Quote Required	Quote Required	TBD	EPDM	4.1 bar	n/a	12 VDC	122 °F	Solenoid	0 °C	Precision Fluidics Division	Electronic	Liquids	20	40	Bubble Tight	PEEK	Mounting Screw	10 Million	0.76 mm	10	Diaphragm Rocker Isolation Valve	Threaded Port Connections	Wire Leads	38.4 g	37 mm	0.35 oz	8.7 mm	2.71 inch	2-Way, Normally Closed (NC)	Up to 600 ml/min	< 18 ms max cycling	Hit and hold circuit	M6 threaded port connections	600 ml/min	1.1 W	Clinical Diagnostics, Analytical Chemistry, Agent Detection, Environmental Monitoring, Sampling, Reagent Addition, Flow Control,Wash, Waste	2-Way Normally Closed	EPDM	0.030 in (0.76 mm)	M6	18 in(46 cm) Flying Leads	12 Volt	VAC to 60 psi (4.1 bar)
R9-212EP3LMP-000	Quote Required	Quote Required	TBD	EPDM	60 psi	n/a	12 VDC	50 °C	Solenoid	32 °F	Precision Fluidics Division	Electronic	Liquids	20	40	Bubble Tight	PEEK	Mounting Screw	10 Million	0.76 mm	10	Diaphragm Rocker Isolation Valve	Threaded Port Connections	2.54 mm pins	38.4 g	1.46 inch	0.35 oz	8.7 mm	2.71 inch	2-Way, Normally Closed (NC)	Up to 600 ml/min	< 18 ms max cycling	Hit and hold circuit	M6 threaded port connections	600 ml/min	1.1 W	Clinical Diagnostics, Analytical Chemistry, Agent Detection, Environmental Monitoring, Sampling, Reagent Addition, Flow Control,Wash, Waste	2-Way Normally Closed	EPDM	0.030 in (0.76 mm)	M6	2.54 mm Male Pins	12 Volt	VAC to 60 psi (4.1 bar)
R9-212EP6H4F-000	Quote Required	Quote Required	TBD	EPDM	40 psi	n/a	12 VDC	122 °F	Solenoid	32 °F	Precision Fluidics Division	Electronic	Liquids	20	40	Bubble Tight	PEEK	Mounting Screw	10 Million	0.061 inch	10	Diaphragm Rocker Isolation Valve	Threaded Port Connections	Wire Leads	38.4 g	1.46 inch	0.35 oz	8.7 mm	2.71 inch	2-Way, Normally Closed (NC)	Up to 700 ml/min	< 18 ms max cycling	Hit and hold circuit	1/4-28 UNF threaded port connections	700 ml/min	1.8 W	Clinical Diagnostics, Analytical Chemistry, Agent Detection, Environmental Monitoring, Sampling, Reagent Addition, Flow Control,Wash, Waste	2-Way Normally Closed	EPDM	0.061 in (1.55 mm)	1/4-28	18 in(46 cm) Flying Leads	12 Volt	VAC to 40 psi (2.8 bar)
R9-212EP6H4P-000	Quote Required	Quote Required	TBD	EPDM	40 psi	n/a	12 VDC	122 °F	Solenoid	32 °F	Precision Fluidics Division	Electronic	Liquids	20	40	Bubble Tight	PEEK	Mounting Screw	10 Million	1.55 mm	10	Diaphragm Rocker Isolation Valve	Threaded Port Connections	2.54 mm pins	1.35 oz	37 mm	0.35 oz	0.34 inch	68.8 mm	2-Way, Normally Closed (NC)	Up to 700 ml/min	< 18 ms max cycling	Hit and hold circuit	1/4-28 UNF threaded port connections	700 ml/min	1.8 W	Clinical Diagnostics, Analytical Chemistry, Agent Detection, Environmental Monitoring, Sampling, Reagent Addition, Flow Control,Wash, Waste	2-Way Normally Closed	EPDM	0.061 in (1.55 mm)	1/4-28	2.54 mm Male Pins	12 Volt	VAC to 40 psi (2.8 bar)
R9-212EP6HFF-000	Quote Required	Quote Required	TBD	EPDM	2.8 bar	n/a	12 VDC	122 °F	Solenoid	0 °C	Precision Fluidics Division	Electronic	Liquids	20	40	Bubble Tight	PEEK	Mounting Screw	10 Million	0.061 inch	10	Diaphragm Rocker Isolation Valve	Manifold Face Seal	Wire Leads	1.35 oz	37 mm	0.35 oz	8.7 mm	68.8 mm	2-Way, Normally Closed (NC)	Up to 700 ml/min	< 18 ms max cycling	Hit and hold circuit	Manifold face seal	700 ml/min	1.8 W	Clinical Diagnostics, Analytical Chemistry, Agent Detection, Environmental Monitoring, Sampling, Reagent Addition, Flow Control,Wash, Waste	2-Way Normally Closed	EPDM	0.061 in (1.55 mm)	Face Seal Manifold Mount	18 in(46 cm) Flying Leads	12 Volt	VAC to 40 psi (2.8 bar)
R9-212EP6HFP-000	Quote Required	Quote Required	TBD	EPDM	2.8 bar	n/a	12 VDC	122 °F	Solenoid	32 °F	Precision Fluidics Division	Electronic	Liquids	20	40	Bubble Tight	PEEK	Mounting Screw	10 Million	1.55 mm	10	Diaphragm Rocker Isolation Valve	Manifold Face Seal	2.54 mm pins	38.4 g	1.46 inch	0.35 oz	0.34 inch	2.71 inch	2-Way, Normally Closed (NC)	Up to 700 ml/min	< 18 ms max cycling	Hit and hold circuit	Manifold face seal	700 ml/min	1.8 W	Clinical Diagnostics, Analytical Chemistry, Agent Detection, Environmental Monitoring, Sampling, Reagent Addition, Flow Control,Wash, Waste	2-Way Normally Closed	EPDM	0.061 in (1.55 mm)	Face Seal Manifold Mount	2.54 mm Male Pins	12 Volt	VAC to 40 psi (2.8 bar)
R9-212EP6HMF-000	Quote Required	Quote Required	TBD	EPDM	2.8 bar	n/a	12 VDC	50 °C	Solenoid	32 °F	Precision Fluidics Division	Electronic	Liquids	20	40	Bubble Tight	PEEK	Mounting Screw	10 Million	0.061 inch	10	Diaphragm Rocker Isolation Valve	Threaded Port Connections	Wire Leads	1.35 oz	1.46 inch	0.35 oz	8.7 mm	68.8 mm	2-Way, Normally Closed (NC)	Up to 700 ml/min	< 18 ms max cycling	Hit and hold circuit	M6 threaded port connections	700 ml/min	1.8 W	Clinical Diagnostics, Analytical Chemistry, Agent Detection, Environmental Monitoring, Sampling, Reagent Addition, Flow Control,Wash, Waste	2-Way Normally Closed	EPDM	0.061 in (1.55 mm)	M6	18 in(46 cm) Flying Leads	12 Volt	VAC to 40 psi (2.8 bar)
R9-212EP6HMP-000	Quote Required	Quote Required	TBD	EPDM	2.8 bar	n/a	12 VDC	50 °C	Solenoid	32 °F	Precision Fluidics Division	Electronic	Liquids	20	40	Bubble Tight	PEEK	Mounting Screw	10 Million	0.061 inch	10	Diaphragm Rocker Isolation Valve	Threaded Port Connections	2.54 mm pins	1.35 oz	1.46 inch	0.35 oz	8.7 mm	2.71 inch	2-Way, Normally Closed (NC)	Up to 700 ml/min	< 18 ms max cycling	Hit and hold circuit	M6 threaded port connections	700 ml/min	1.8 W	Clinical Diagnostics, Analytical Chemistry, Agent Detection, Environmental Monitoring, Sampling, Reagent Addition, Flow Control,Wash, Waste	2-Way Normally Closed	EPDM	0.061 in (1.55 mm)	M6	2.54 mm Male Pins	12 Volt	VAC to 40 psi (2.8 bar)
R9-212EP6L4F-000	Quote Required	Quote Required	TBD	EPDM	20 psi	n/a	12 VDC	122 °F	Solenoid	32 °F	Precision Fluidics Division	Electronic	Liquids	20	40	Bubble Tight	PEEK	Mounting Screw	10 Million	0.061 inch	10	Diaphragm Rocker Isolation Valve	Threaded Port Connections	Wire Leads	1.35 oz	1.46 inch	0.35 oz	8.7 mm	2.71 inch	2-Way, Normally Closed (NC)	Up to 580 ml/min	< 18 ms max cycling	Hit and hold circuit	1/4-28 UNF threaded port connections	580 ml/min	1.1 W	Clinical Diagnostics, Analytical Chemistry, Agent Detection, Environmental Monitoring, Sampling, Reagent Addition, Flow Control,Wash, Waste	2-Way Normally Closed	EPDM	0.061 in (1.55 mm)	1/4-28	18 in(46 cm) Flying Leads	12 Volt	VAC to 20 psi (1.36 bar)
R9-212EP6L4P-000	Quote Required	Quote Required	TBD	EPDM	1.4 bar	n/a	12 VDC	50 °C	Solenoid	32 °F	Precision Fluidics Division	Electronic	Liquids	20	40	Bubble Tight	PEEK	Mounting Screw	10 Million	1.55 mm	10	Diaphragm Rocker Isolation Valve	Threaded Port Connections	2.54 mm pins	1.35 oz	1.46 inch	0.35 oz	8.7 mm	68.8 mm	2-Way, Normally Closed (NC)	Up to 580 ml/min	< 18 ms max cycling	Hit and hold circuit	1/4-28 UNF threaded port connections	580 ml/min	1.1 W	Clinical Diagnostics, Analytical Chemistry, Agent Detection, Environmental Monitoring, Sampling, Reagent Addition, Flow Control,Wash, Waste	2-Way Normally Closed	EPDM	0.061 in (1.55 mm)	1/4-28	2.54 mm Male Pins	12 Volt	VAC to 20 psi (1.36 bar)
