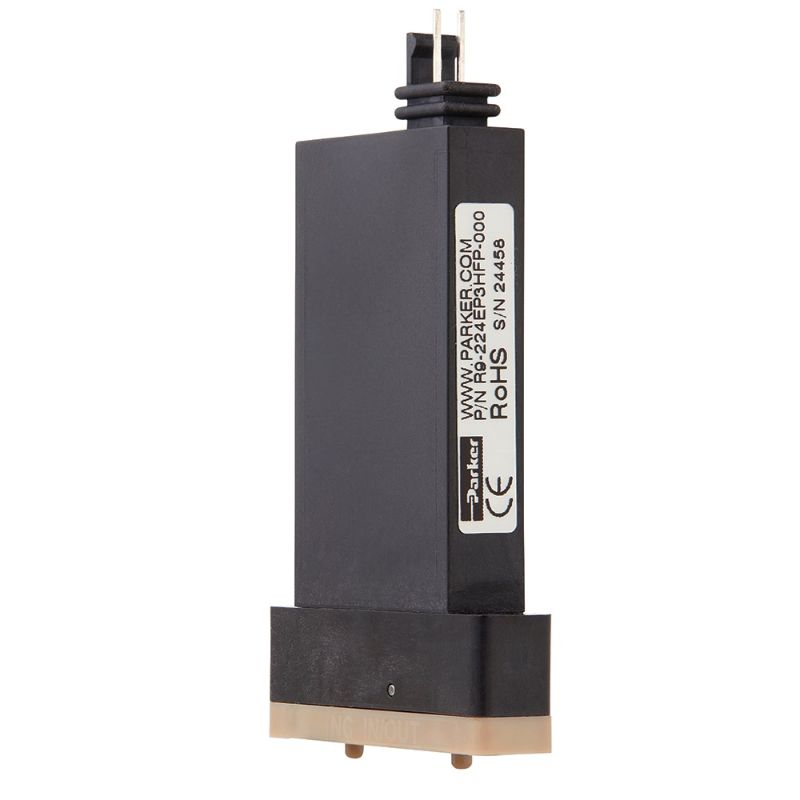

Parker R9-324FF3LFF-000 - R9 Valve - 9 mm Miniature Diaphragm Isolation Valve

The Parker R9 Miniature Diaphragm Compact family of 2 and 3-way 9 mm inert rocker isolation valves are designed to offer the flow of larger 16 mm valves in a much smaller space, while also offering the advantage of pressures up to 100 psi (6.9 bar).

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. R9-324FF3LFF-000

$148.00

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Operating Pressure	60 psi
Configuration	n/a	Input Voltage	24 VDC
Maximum Operating Temperature	122 °F	Actuation Type	Solenoid
Division	Precision Fluidics Division	Operation Type	Electronic
Minimum Operating Temperature	0 °C	Power Consumption	1.2 W
For Fluid Type	Liquids	Standard Lead Time	20
Out of Stock Lead Time	40	Leak Rate	Bubble Tight
Body Material	PEEK	Mounting Type	Mounting Screw
Cycles per Lifetime	10 Million	Orifice Size	0.030 inch
Seal Material	FFKM	Max Order Quantity	10
Connection Type	Manifold Face Seal	Valve Type	Diaphragm Rocker Isolation Valve
Electrical Connection	Wire Leads	Weight	38.4 g
Height	37 mm	Shipping Weight	0.35 oz
Width	8.7 mm	Length	68.8 mm
Flow Rate	Up to 600 ml/min	Response Time	< 18 ms max cycling
Control Method	Hit and hold circuit	Connection Size	Manifold face seal
Maximum Flow Rate	600 ml/min	Industry Application	Clinical Diagnostics, Analytical Chemistry, Agent Detection, Environmental Monitoring, Sampling, Reagent Addition, Flow Control,Wash, Waste
Function	3-Way, Universal	Valve Type	3-Way Universal
Elastomer	FFKM	Orifice Size	0.030 in (0.76 mm)
Mounting Style	Face Seal Manifold Mount	Electrical Connection	18 in(46 cm) Flying Leads
Maximum Operating Voltage	24 Volt	Application Pressure Requirement	VAC to 60 psi (4.1 bar)
