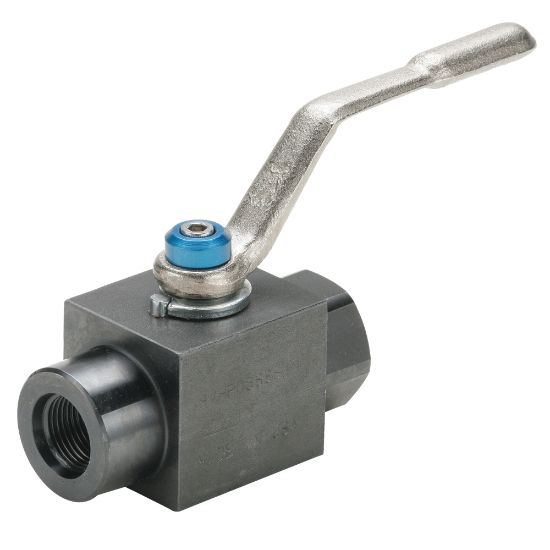

Parker V506HP-8 - Industrial Ball Valves - Carbon Steel

Name: Parker V506HP-8 - Industrial Ball Valves - Carbon Steel
SKU: V506HP-8
Price: 130.66 USD
Availability: LimitedAvailability

Parker's carbon steel ball valves were designed to offer superior performance for applications that require rugged and reliable performance.

Availability:

1 Limited Stock

Summerville, SC

Partner Available:

Quote Required

Brand Parker

Part No. V506HP-8

$130.66

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Division	Fluid System Connectors Division
Specifications Met	N/A	Seal Material	PTFE
Connection Size	1/2	Maximum Flow Rate	n/a
Shape	In-Line	Actuation Type	Manual
Product Type	Ball Valve	Function	Ball Valve
Handle Type	Lever	Minimum Operating Temperature	-10
Orifice Size	n/a	Operation Type	n/a
Ball Material	Steel	Configuration	In-line
Mounting Type	Panel	Body Material	Carbon Steel
Maximum Operating Pressure	413	Maximum Operating Temperature	210
Seat Material	Delrin Molybdenum Disulphide	Connection Type	NPT, Straight Thread, SAE J1926-1
Maximum Working Pressure (psi)	6000	Locking Mechanism	Non-Locking
Shape	In Line	Handle	Steel Lever
Style	Straight Thread Ends	Connection 1 Thread Style	SAE J1926-1
Connection 2 Thread Style	SAE J1926-1	Connection 1 Thread Size (inch)	3/4-16 UNF
Connection 2 Thread Size (inch)	3/4-16 UNF
