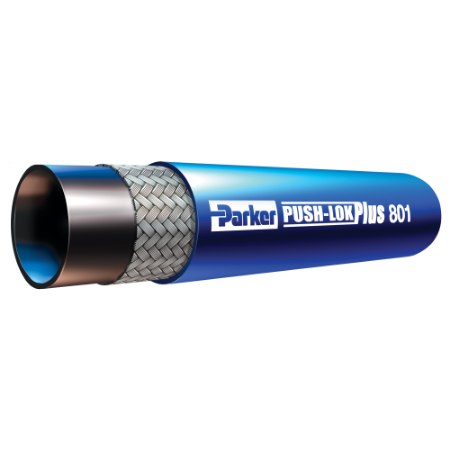

Push-Lok Plus Multipurpose Hose 200-350 PSI – 801 Hose
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
AFP Industries stocks this Parker series for quote or purchase, with interchange support and southeast warehouse availability.
Parker’s 801 general-purpose hose with Push-Lok Plus technology is a low-pressure, multipurpose synthetic rubber hose featuring Parker’s exclusive color-coding system. Suitable for use with a wide range of media, 801 hoses are compatible with petroleum-based hydraulic fluid and lubricating oils, pneumatic power, antifreeze, and, when coupled with HY Series fittings, diesel fuel. This versatile hose features the unique Push-Lok seal for easy assembly and to ensure reliable, durable, and leak-free service. Available in sizes ranging from ¼-inch to 1-inch in diameter, 801 hoses offer maximum working pressures ranging from 200 to 350 psi. The exclusive color-coding system enhances organization and assembly. Common uses include construction, utilities, machine tooling, ground support, industrial, and automotive applications.
Markets:
• Construction
• Utility Equipment
• Machine Tool
• Ground Support Equipment
• Industrial
• Automotive
Features/Benefits:
• 200-350 PSI working pressure in different sizes
• Easy assemblies that can be made in seconds, saving valuable time and cost
• In applications where a number of hoses lines carry different media, Push-Lok color-codes reduce timely "tracing" of lines, preventing disconnection of the wrong line and unnecessary, costly downtime
• Unique seal for a durable leak-free service
Applications:
• Petroleum base hydraulic fluid and lubricating oils
• Pneumatic
• Antifreeze solutions
• Diesel fuel – approved only when coupled with HY series fittings
Compatible Fittings:
• 82 series fittings
• HY series fittings
| Action | Part No. | Availability | Partner Available | Price | UOM | Weight | Maximum Operating Pressure | Outside Diameter | Inside Diameter | Nominal Hose Inside Diameter | Cover Material | Application | Minimum Operating Temperature | Minimum Bend Radius | Specifications Met | Hose Reinforcement Material | Hose Inner Tube Material | Media | Compatible Fitting | Size | Design Factor | Division | Vacuum Pressure Rating | Maximum Operating Temperature | Hose I.D. (size) | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 801-10-BLK-RL | 844 In Stock | 10942 In Stock | $5.97/foot | FT | 0.19 lb/ft | 2.1 MPa | 23 mm | 16 mm | 16 mm | MSHA Approved | Antifreeze Solutions | -40 °F (Oil) | 6 inch | n/a | 1 Braid of Fiber | Synthetic Rubber | Coolants | 82 Series | -10 | 4:1 | Hose Products Division | 15 Inch-Hg | 185 °F (Water) | -10 | Black | |
| 801-10-BLU-RL | 369 In Stock | 7086 In Stock | $5.97/foot | FT | 0.19 lb/ft | 300 psi | 23 mm | 16 mm | 16 mm | Synthetic Rubber | Petroleum Base Hydraulic Fluids | -40 °C (Oil) | 150 mm | n/a | 1 Braid of Fiber | Synthetic Rubber | Lubricants | 82 Series | -10 | 4:1 | Hose Products Division | 381 mm-Hg | 70 °C (Air) | -10 | Blue | |
| 801-10-GRA-RL | 484 In Stock | 3858 In Stock | $5.97/foot | FT | 0.28 kg/m | 300 psi | 23 mm | 5/8 inch | 16 mm | MSHA Approved | Lubricating Oils | -40 °C (Oil) | 150 mm | n/a | 1 Braid of Fiber | Synthetic Rubber | Lubricants | HY Series | -10 | 4:1 | Hose Products Division | 381 mm-Hg | 257 °F (Oil) | -10 | Gray | |
| 801-12-BLK-RL | 2239 In Stock | 14527 In Stock | $7.44/foot | FT | 0.24 lb/ft | 2.1 MPa | 26.2 mm | 19 mm | 19 mm | Synthetic Rubber | Petroleum Base Hydraulic Fluids | -40 °F (Oil) | 180 mm | n/a | 1 Braid of Fiber | Synthetic Rubber | Petroleum Hydraulic Fluids | 82 Series | -12 | 4:1 | Hose Products Division | 381 mm-Hg | 70 °C (Air) | -12 | Black | |
| 801-12-BLU-RL | 3826 In Stock | 12265 In Stock | $7.44/foot | FT | 0.36 kg/m | 2.1 MPa | 1.030 inch | 19 mm | 19 mm | MSHA Approved | Antifreeze Solutions | -40 °C (Oil) | 7 inch | n/a | 1 Braid of Fiber | Synthetic Rubber | Lubricants | 82 Series | -12 | 4:1 | Hose Products Division | 381 mm-Hg | 85 °C (Water) | -12 | Blue | |
| 801-12-GRA-RL | 1148 In Stock | 5738 In Stock | $7.44/foot | FT | 0.36 kg/m | 2.1 MPa | 26.2 mm | 3/4 inch | 19 mm | MSHA Approved | Lubricating Oils | -40 °F (Oil) | 180 mm | n/a | 1 Braid of Fiber | Synthetic Rubber | Air (Compressed Air with traces of Oil) | 82 Series | -12 | 4:1 | Hose Products Division | 381 mm-Hg | 85 °C (Water) | -12 | Gray | |
| 801-16-BLK-RL | 1260 In Stock | 4257 In Stock | $9.85/foot | FT | 0.55 kg/m | 200 psi | 1.280 inch | 1 inch | 25 mm | Synthetic Rubber | Antifreeze Solutions | -40 °C (Oil) | 250 mm | n/a | 1 Braid of Fiber | Synthetic Rubber | Lubricants | HY Series | -16 | 4:1 | Hose Products Division | 15 Inch-Hg | 158 °F (Air) | -16 | Black | |
| 801-16-BLU-RL | 628 In Stock | 2896 In Stock | $9.85/foot | FT | 0.37 lb/ft | 200 psi | 32.6 mm | 25 mm | 25 mm | MSHA Approved | Antifreeze Solutions | -40 °C (Oil) | 10 inch | n/a | 1 Braid of Fiber | Synthetic Rubber | Air (Compressed Air with traces of Oil) | HY Series | -16 | 4:1 | Hose Products Division | 15 Inch-Hg | 158 °F (Air) | -16 | Blue | |
| 801-16-GRA-RL | 100 In Stock | 2761 In Stock | $9.85/foot | FT | 0.37 lb/ft | 1.4 MPa | 32.6 mm | 25 mm | 25 mm | Synthetic Rubber | Antifreeze Solutions | -40 °F (Oil) | 10 inch | n/a | 1 Braid of Fiber | Synthetic Rubber | Petroleum Hydraulic Fluids | HY Series | -16 | 4:1 | Hose Products Division | 381 mm-Hg | 185 °F (Water) | -16 | Gray | |
| 801-4-BLK | Quote Required | 3037 In Stock | $2.32/each | EA | 0.13 kg/m | 2.4 MPa | 12.7 mm | 6.3 mm | 6 mm | MSHA Approved | Antifreeze Solutions | -40 °C (Oil) | 2-1/2 inch | n/a | 1 Braid of Fiber | Synthetic Rubber | Coolants | HY Series | -4 | 4:1 | Hose Products Division | 711 mm-Hg | 70 °C (Air) | -4 | Black | |
| 801-4-BLK-RL | 3585 In Stock | 40310 In Stock | $2.97/foot | FT | 0.13 kg/m | 2.4 MPa | 0.500 inch | 6.3 mm | 6 mm | MSHA Approved | Antifreeze Solutions | -40 °F (Oil) | 2-1/2 inch | n/a | 1 Braid of Fiber | Synthetic Rubber | Lubricants | 82 Series | -4 | 4:1 | Hose Products Division | 711 mm-Hg | 185 °F (Water) | -4 | Black | |
| 801-4-BLU-RL | 2910 In Stock | 24143 In Stock | $2.97/foot | FT | 0.13 kg/m | 350 psi | 12.7 mm | 6.3 mm | 6 mm | Synthetic Rubber | Antifreeze Solutions | -40 °C (Oil) | 65 mm | n/a | 1 Braid of Fiber | Synthetic Rubber | Petroleum Hydraulic Fluids | 82 Series | -4 | 4:1 | Hose Products Division | 711 mm-Hg | 185 °F (Water) | -4 | Blue | |
| 801-4-GRA-RL | 1379 In Stock | 15814 In Stock | $2.97/foot | FT | 0.09 lb/ft | 350 psi | 0.500 inch | 6.3 mm | 6 mm | Synthetic Rubber | Petroleum Base Hydraulic Fluids | -40 °C (Oil) | 65 mm | n/a | 1 Braid of Fiber | Synthetic Rubber | Coolants | 82 Series | -4 | 4:1 | Hose Products Division | 28 Inch-Hg | 158 °F (Air) | -4 | Gray | |
| 801-6-BLK-RL | 6114 In Stock | 24142 In Stock | $3.71/foot | FT | 0.11 lb/ft | 2.4 MPa | 15.9 mm | 3/8 inch | 10 mm | Synthetic Rubber | Petroleum Base Hydraulic Fluids | -40 °F (Oil) | 75 mm | n/a | 1 Braid of Fiber | Synthetic Rubber | Coolants | 82 Series | -6 | 4:1 | Hose Products Division | 28 Inch-Hg | 158 °F (Air) | -6 | Black | |
| 801-6-BLU-RL | 4924 In Stock | 30837 In Stock | $3.71/foot | FT | 0.11 lb/ft | 2.4 MPa | 0.630 inch | 10 mm | 10 mm | MSHA Approved | Antifreeze Solutions | -40 °F (Oil) | 75 mm | n/a | 1 Braid of Fiber | Synthetic Rubber | Lubricants | 82 Series | -6 | 4:1 | Hose Products Division | 711 mm-Hg | 257 °F (Oil) | -6 | Blue | |
| 801-6-GRA-RL | 3277 In Stock | 15175 In Stock | $3.71/foot | FT | 0.16 kg/m | 350 psi | 15.9 mm | 10 mm | 10 mm | MSHA Approved | Lubricating Oils | -40 °F (Oil) | 3 inch | n/a | 1 Braid of Fiber | Synthetic Rubber | Petroleum Hydraulic Fluids | HY Series | -6 | 4:1 | Hose Products Division | 711 mm-Hg | 70 °C (Air) | -6 | Gray | |
| 801-8-BLK-RL | 4295 In Stock | 27764 In Stock | $4.28/foot | FT | 0.18 lb/ft | 2.1 MPa | 19.8 mm | 12.5 mm | 12 mm | MSHA Approved | Antifreeze Solutions | -40 °F (Oil) | 125 mm | n/a | 1 Braid of Fiber | Synthetic Rubber | Air (Compressed Air with traces of Oil) | 82 Series | -8 | 4:1 | Hose Products Division | 28 Inch-Hg | 85 °C (Water) | -8 | Black | |
| 801-8-BLU | Quote Required | 5204 In Stock | $3.34/foot | FT | 0.27 kg/m | 2.1 MPa | 0.780 inch | 1/2 inch | 12 mm | Synthetic Rubber | Petroleum Base Hydraulic Fluids | -40 °F (Oil) | 125 mm | n/a | 1 Braid of Fiber | Synthetic Rubber | Air (Compressed Air with traces of Oil) | HY Series | -8 | 4:1 | Hose Products Division | 28 Inch-Hg | 185 °F (Water) | -8 | Blue | |
| 801-8-BLU-RL | 3489 In Stock | 20748 In Stock | $4.28/foot | FT | 0.18 lb/ft | 300 psi | 0.780 inch | 12.5 mm | 12 mm | Synthetic Rubber | Lubricating Oils | -40 °C (Oil) | 5 inch | n/a | 1 Braid of Fiber | Synthetic Rubber | Coolants | 82 Series | -8 | 4:1 | Hose Products Division | 28 Inch-Hg | 185 °F (Water) | -8 | Blue | |
| 801-8-GRA-RL | 302 In Stock | 9706 In Stock | $4.28/foot | FT | 0.18 lb/ft | 300 psi | 19.8 mm | 12.5 mm | 12 mm | Synthetic Rubber | Antifreeze Solutions | -40 °C (Oil) | 5 inch | n/a | 1 Braid of Fiber | Synthetic Rubber | Coolants | HY Series | -8 | 4:1 | Hose Products Division | 28 Inch-Hg | 158 °F (Air) | -8 | Gray |
