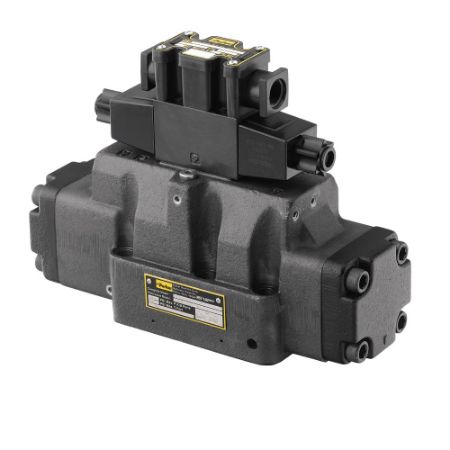

Pilot Operated Directional Control Valve - D81VW Series

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker’s D81VW directional control valves are available in 2 or 3-position. They are manifold or subplate mounted valves which conform to NFPA’s D08, CETOP 8 mounting patterns.

Markets:
• Entertainment Automation
• Factory Automation
• Lumber & Wood
• Machine Tools
• Marine
• Material Handling
• Miscellaneous Industrial
• Miscellaneous Manufacturing
• Miscellaneous Processing
• Molding
• Oil & Gas
• Other Natural Resources
• Packaging Machinery
• Plastic Packaging
• Power Generation
• Primary Metal Refining/Process
• Printing and Marking Equipment
• Rubber & Tire Processing
• Vehicle Assembly Facilities

Features/Benefits:
• Explosion proof available
• Low pressure drop design
• Fast response option available
• Hardened spools provide long life
• No tools required for coil removal
• Wide variety of voltages and electrical connections available

Applications:
• Suitable for general hydraulic applications

View as Grid List

Sort by

Display per page

Part No.	Availability	Partner Available	Price	Additional Options	Division	Valve Type	Maximum Operating Temperature	Power Supply Voltage	Connection Type	Spool Position	Size	Coil Specifications Met	Options	Pilot Inlet / Drain Locations	Body Material	Mounting Type	Maximum Flow Rate	Minimum Operating Temperature	Solenoid Option	Actuation Type	Spool Code	Weight	Maximum Operating Pressure	Seal Material	Maximum Operating Pressure	Maximum Flow Rate	Size	Mounting Type
D81VW001C1NJP	Quote Required	Quote Required	$1,916.25/each	Consult catalog for other available features	Hydraulic Valve Systems Division	Pilot Operated Directional Control Valve	+140	24 VDC	DIN with Plug	Double solenoid, 3 position, spring centered	NFPA D08, CETOP8, DIN NG25, Low Flow, D03 Pilot	Omit - Standard Valve	Omit - No Options	Internal Pilot, External Drain	Grey Iron	Subplate	160	-4	Omit - High Watt	Hydaulic Pressure	001 - 4-way, 3 position; All Ports Blocked	43.2	5000	Nitrile	5000 PSI	160 GPM	NFPA D08, CETOP8, DIN NG25, Low Flow, D03 Pilot	Subplate
D81VW001C1NJW	Quote Required	Quote Required	$1,842.75/each	Consult catalog for other available features	Hydraulic Valve Systems Division	Pilot Operated Directional Control Valve	+140	24 VDC	DIN w/o Plug	Double solenoid, 3 position, spring centered	NFPA D08, CETOP8, DIN NG25, Low Flow, D03 Pilot	Omit - Standard Valve	Omit - No Options	Internal Pilot, External Drain	Grey Iron	Subplate	160	-4	Omit - High Watt	Hydaulic Pressure	001 - 4-way, 3 position; All Ports Blocked	43.2	5000	Nitrile	5000 PSI	160 GPM	NFPA D08, CETOP8, DIN NG25, Low Flow, D03 Pilot	Subplate
D81VW001C2NYGF56	Quote Required	Quote Required	$2,002.50/each	Consult catalog for other available features	Hydraulic Valve Systems Division	Pilot Operated Directional Control Valve	+140	120/60 - 110/50 VAC	Plug-In Conduit Box	Double solenoid, 3 position, spring centered	NFPA D08, CETOP8, DIN NG25, Low Flow, D03 Pilot	Omit - Standard Valve	Manaplug (Mini) with Lights	Internal Pilot w/Check, External Drain	Grey Iron	Subplate	160	-4	Low Watt	Hydaulic Pressure	001 - 4-way, 3 position; All Ports Blocked	43.2	5000	Nitrile	5000 PSI	160 GPM	NFPA D08, CETOP8, DIN NG25, Low Flow, D03 Pilot	Subplate
D81VW001C4NJP1P	Quote Required	Quote Required	$2,042.25/each	Consult catalog for other available features	Hydraulic Valve Systems Division	Pilot Operated Directional Control Valve	+140	24 VDC	DIN with Plug	Double solenoid, 3 position, spring centered	NFPA D08, CETOP8, DIN NG25, Low Flow, D03 Pilot	Omit - Standard Valve	Painted Body	Internal Pilot, Internal Drain	Grey Iron	Subplate	160	-4	Omit - High Watt	Hydaulic Pressure	001 - 4-way, 3 position; All Ports Blocked	43.2	5000	Nitrile	5000 PSI	160 GPM	NFPA D08, CETOP8, DIN NG25, Low Flow, D03 Pilot	Subplate
D81VW001C4NJW	Quote Required	Quote Required	$1,842.75/each	Consult catalog for other available features	Hydraulic Valve Systems Division	Pilot Operated Directional Control Valve	+140	24 VDC	DIN w/o Plug	Double solenoid, 3 position, spring centered	NFPA D08, CETOP8, DIN NG25, Low Flow, D03 Pilot	Omit - Standard Valve	Omit - No Options	Internal Pilot, Internal Drain	Grey Iron	Subplate	160	-4	Omit - High Watt	Hydaulic Pressure	001 - 4-way, 3 position; All Ports Blocked	43.2	5000	Nitrile	5000 PSI	160 GPM	NFPA D08, CETOP8, DIN NG25, Low Flow, D03 Pilot	Subplate
D81VW001C4NYC	Quote Required	Quote Required	$1,871.25/each	Consult catalog for other available features	Hydraulic Valve Systems Division	Pilot Operated Directional Control Valve	+140	120/60 - 110/50 VAC	Leadwire Conduit Box	Double solenoid, 3 position, spring centered	NFPA D08, CETOP8, DIN NG25, Low Flow, D03 Pilot	Omit - Standard Valve	Omit - No Options	Internal Pilot, Internal Drain	Grey Iron	Subplate	160	-4	Omit - High Watt	Hydaulic Pressure	001 - 4-way, 3 position; All Ports Blocked	43.2	5000	Nitrile	5000 PSI	160 GPM	NFPA D08, CETOP8, DIN NG25, Low Flow, D03 Pilot	Subplate
D81VW001C4NYCF	Quote Required	Quote Required	$1,871.25/each	Consult catalog for other available features	Hydraulic Valve Systems Division	Pilot Operated Directional Control Valve	+140	120/60 - 110/50 VAC	Leadwire Conduit Box	Double solenoid, 3 position, spring centered	NFPA D08, CETOP8, DIN NG25, Low Flow, D03 Pilot	Omit - Standard Valve	Omit - No Options	Internal Pilot, Internal Drain	Grey Iron	Subplate	160	-4	Low Watt	Hydaulic Pressure	001 - 4-way, 3 position; All Ports Blocked	43.2	5000	Nitrile	5000 PSI	160 GPM	NFPA D08, CETOP8, DIN NG25, Low Flow, D03 Pilot	Subplate
D81VW001C4NYW	Quote Required	Quote Required	$1,842.75/each	Consult catalog for other available features	Hydraulic Valve Systems Division	Pilot Operated Directional Control Valve	+140	120/60 - 110/50 VAC	DIN w/o Plug	Double solenoid, 3 position, spring centered	NFPA D08, CETOP8, DIN NG25, Low Flow, D03 Pilot	Omit - Standard Valve	Omit - No Options	Internal Pilot, Internal Drain	Grey Iron	Subplate	160	-4	Omit - High Watt	Hydaulic Pressure	001 - 4-way, 3 position; All Ports Blocked	43.2	5000	Nitrile	5000 PSI	160 GPM	NFPA D08, CETOP8, DIN NG25, Low Flow, D03 Pilot	Subplate
D81VW002C1NYCF	Quote Required	Quote Required	$1,871.25/each	Consult catalog for other available features	Hydraulic Valve Systems Division	Pilot Operated Directional Control Valve	+140	120/60 - 110/50 VAC	Leadwire Conduit Box	Double solenoid, 3 position, spring centered	NFPA D08, CETOP8, DIN NG25, Low Flow, D03 Pilot	Omit - Standard Valve	Omit - No Options	External Pilot, External Drain	Grey Iron	Subplate	160	-4	Low Watt	Hydaulic Pressure	002 - 4-way, 3 position; All Ports Open	43.2	5000	Nitrile	5000 PSI	160 GPM	NFPA D08, CETOP8, DIN NG25, Low Flow, D03 Pilot	Subplate
D81VW002C2NYCF	Quote Required	Quote Required	$1,871.25/each	Consult catalog for other available features	Hydraulic Valve Systems Division	Pilot Operated Directional Control Valve	+140	120/60 - 110/50 VAC	Leadwire Conduit Box	Double solenoid, 3 position, spring centered	NFPA D08, CETOP8, DIN NG25, Low Flow, D03 Pilot	Omit - Standard Valve	Omit - No Options	Internal Pilot w/Check, External Drain	Grey Iron	Subplate	160	-4	Low Watt	Hydaulic Pressure	002 - 4-way, 3 position; All Ports Open	43.2	5000	Nitrile	5000 PSI	160 GPM	NFPA D08, CETOP8, DIN NG25, Low Flow, D03 Pilot	Subplate
D81VW002C5NYGF56	Quote Required	Quote Required	$1,963.50/each	Consult catalog for other available features	Hydraulic Valve Systems Division	Pilot Operated Directional Control Valve	+140	120/60 - 110/50 VAC	Plug-In Conduit Box	Double solenoid, 3 position, spring centered	NFPA D08, CETOP8, DIN NG25, Low Flow, D03 Pilot	Omit - Standard Valve	Manaplug (Mini) with Lights	Internal Pilot w/Check, Internal Drain	Grey Iron	Subplate	160	-4	Low Watt	Hydaulic Pressure	002 - 4-way, 3 position; All Ports Open	43.2	5000	Nitrile	5000 PSI	160 GPM	NFPA D08, CETOP8, DIN NG25, Low Flow, D03 Pilot	Subplate
D81VW004C1NJG5	Quote Required	Quote Required	$1,916.25/each	Consult catalog for other available features	Hydraulic Valve Systems Division	Pilot Operated Directional Control Valve	+140	24 VDC	Plug-In Conduit Box	Double solenoid, 3 position, spring centered	NFPA D08, CETOP8, DIN NG25, Low Flow, D03 Pilot	Omit - Standard Valve	Signal Lights	Internal Pilot, External Drain	Grey Iron	Subplate	160	-4	Omit - High Watt	Hydaulic Pressure	004 - 04-way, 3 position; P Port Blocked	43.2	5000	Nitrile	5000 PSI	160 GPM	NFPA D08, CETOP8, DIN NG25, Low Flow, D03 Pilot	Subplate
D81VW004C1NYCF	Quote Required	Quote Required	$1,871.25/each	Consult catalog for other available features	Hydraulic Valve Systems Division	Pilot Operated Directional Control Valve	+140	120/60 - 110/50 VAC	Leadwire Conduit Box	Double solenoid, 3 position, spring centered	NFPA D08, CETOP8, DIN NG25, Low Flow, D03 Pilot	Omit - Standard Valve	Omit - No Options	Internal Pilot, External Drain	Grey Iron	Subplate	160	-4	Low Watt	Hydaulic Pressure	004 - 04-way, 3 position; P Port Blocked	43.2	5000	Nitrile	5000 PSI	160 GPM	NFPA D08, CETOP8, DIN NG25, Low Flow, D03 Pilot	Subplate
D81VW004C1NYWF	Quote Required	Quote Required	$1,842.75/each	Consult catalog for other available features	Hydraulic Valve Systems Division	Pilot Operated Directional Control Valve	+140	120/60 - 110/50 VAC	DIN w/o Plug	Double solenoid, 3 position, spring centered	NFPA D08, CETOP8, DIN NG25, Low Flow, D03 Pilot	Omit - Standard Valve	Omit - No Options	External Pilot, External Drain	Grey Iron	Subplate	160	-4	Low Watt	Hydaulic Pressure	004 - 04-way, 3 position; P Port Blocked	43.2	5000	Nitrile	5000 PSI	160 GPM	NFPA D08, CETOP8, DIN NG25, Low Flow, D03 Pilot	Subplate
D81VW004C1VYCF	Quote Required	Quote Required	$1,953.00/each	Consult catalog for other available features	Hydraulic Valve Systems Division	Pilot Operated Directional Control Valve	+140	120/60 - 110/50 VAC	Leadwire Conduit Box	Double solenoid, 3 position, spring centered	NFPA D08, CETOP8, DIN NG25, Low Flow, D03 Pilot	Omit - Standard Valve	Omit - No Options	External Pilot, External Drain	Grey Iron	Subplate	160	-4	Low Watt	Hydaulic Pressure	004 - 04-way, 3 position; P Port Blocked	43.2	5000	Fluorocarbon	5000 PSI	160 GPM	NFPA D08, CETOP8, DIN NG25, Low Flow, D03 Pilot	Subplate
D81VW004C2NYGF56	Quote Required	Quote Required	$1,949.25/each	Consult catalog for other available features	Hydraulic Valve Systems Division	Pilot Operated Directional Control Valve	+140	120/60 - 110/50 VAC	Plug-In Conduit Box	Double solenoid, 3 position, spring centered	NFPA D08, CETOP8, DIN NG25, Low Flow, D03 Pilot	Omit - Standard Valve	Manaplug (Mini) with Lights	Internal Pilot w/Check, External Drain	Grey Iron	Subplate	160	-4	Low Watt	Hydaulic Pressure	004 - 04-way, 3 position; P Port Blocked	43.2	5000	Nitrile	5000 PSI	160 GPM	NFPA D08, CETOP8, DIN NG25, Low Flow, D03 Pilot	Subplate
D81VW004C4NJP	Quote Required	Quote Required	$1,916.25/each	Consult catalog for other available features	Hydraulic Valve Systems Division	Pilot Operated Directional Control Valve	+140	24 VDC	DIN with Plug	Double solenoid, 3 position, spring centered	NFPA D08, CETOP8, DIN NG25, Low Flow, D03 Pilot	Omit - Standard Valve	Omit - No Options	Internal Pilot, Internal Drain	Grey Iron	Subplate	160	-4	Omit - High Watt	Hydaulic Pressure	004 - 04-way, 3 position; P Port Blocked	43.2	5000	Nitrile	5000 PSI	160 GPM	NFPA D08, CETOP8, DIN NG25, Low Flow, D03 Pilot	Subplate
D81VW004C4NJW	Quote Required	2 Limited Stock	$1,842.75/each	Consult catalog for other available features	Hydraulic Valve Systems Division	Pilot Operated Directional Control Valve	+140	24 VDC	DIN w/o Plug	Double solenoid, 3 position, spring centered	NFPA D08, CETOP8, DIN NG25, Low Flow, D03 Pilot	Omit - Standard Valve	Omit - No Options	Internal Pilot, Internal Drain	Grey Iron	Subplate	160	-4	Omit - High Watt	Hydaulic Pressure	004 - 04-way, 3 position; P Port Blocked	43.2	5000	Nitrile	5000 PSI	160 GPM	NFPA D08, CETOP8, DIN NG25, Low Flow, D03 Pilot	Subplate
D81VW004C4NYGF56	Quote Required	Quote Required	$1,949.25/each	Consult catalog for other available features	Hydraulic Valve Systems Division	Pilot Operated Directional Control Valve	+140	120/60 - 110/50 VAC	Plug-In Conduit Box	Double solenoid, 3 position, spring centered	NFPA D08, CETOP8, DIN NG25, Low Flow, D03 Pilot	Omit - Standard Valve	Manaplug (Mini) with Lights	Internal Pilot, Internal Drain	Grey Iron	Subplate	160	-4	Low Watt	Hydaulic Pressure	004 - 04-way, 3 position; P Port Blocked	43.2	5000	Nitrile	5000 PSI	160 GPM	NFPA D08, CETOP8, DIN NG25, Low Flow, D03 Pilot	Subplate
D81VW004C4VYCF3A	Quote Required	Quote Required	$2,358.00/each	Consult catalog for other available features	Hydraulic Valve Systems Division	Pilot Operated Directional Control Valve	+140	120/60 - 110/50 VAC	Leadwire Conduit Box	Double solenoid, 3 position, spring centered	NFPA D08, CETOP8, DIN NG25, Low Flow, D03 Pilot	Omit - Standard Valve	Pilot Choke Meter Out	Internal Pilot, Internal Drain	Grey Iron	Subplate	160	-4	Low Watt	Hydaulic Pressure	004 - 04-way, 3 position; P Port Blocked	43.2	5000	Fluorocarbon	5000 PSI	160 GPM	NFPA D08, CETOP8, DIN NG25, Low Flow, D03 Pilot	Subplate
