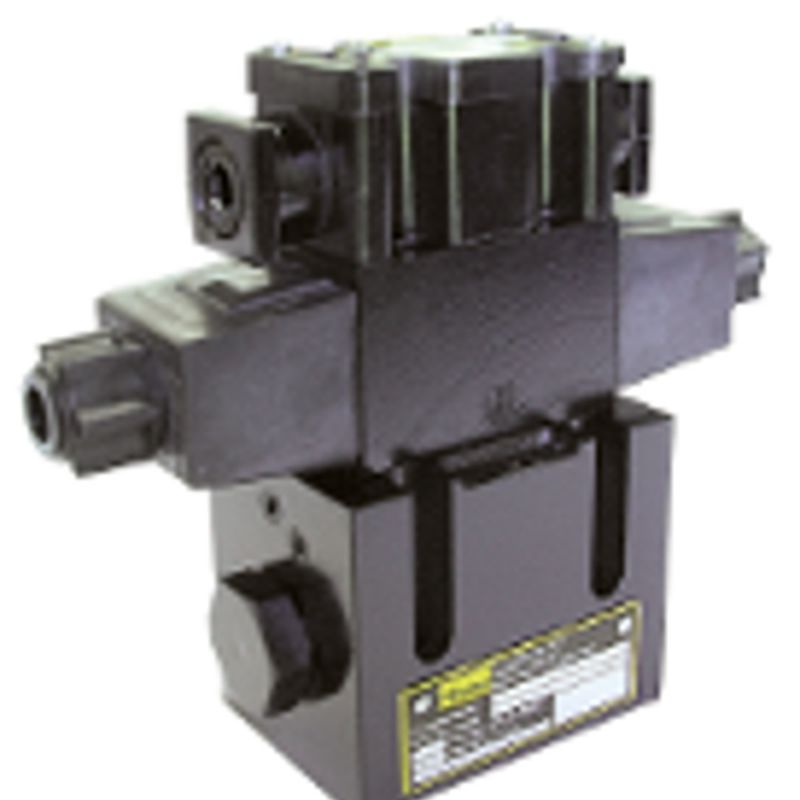

Parker D81VW001C1NJP. - Pilot Operated Directional Control Valve - D81VW Series

Parker’s D81VW directional control valves are 5-chamber, pilot operated, solenoid controlled valves.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. D81VW001C1NJP.

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Seal Material	Nitrile	Maximum Operating Pressure	5000
Division	Hydraulic Valve Systems Division	Power Supply Voltage	24 VDC
Minimum Operating Temperature	-4	Maximum Flow Rate	160
Mounting Type	Subplate	Maximum Operating Temperature	+140
Valve Type	Pilot Operated Directional Control Valve	Connection Type	DIN with Plug
Solenoid Option	Omit - High Watt	Options	Omit - No Options
Additional Options	Consult catalog for other available features	Body Material	Grey Iron
Weight	43.2	Size	NFPA D08, CETOP8, DIN NG25, Low Flow, D03 Pilot
Spool Code	001 - 4-way, 3 position; All Ports Blocked	Actuation Type	Hydaulic Pressure
Spool Position	Double solenoid, 3 position, spring centered	Pilot Inlet / Drain Locations	Internal Pilot, External Drain
Coil Specifications Met	Omit - Standard Valve	Mounting Type	Subplate
Maximum Operating Pressure	5000 PSI	Size	NFPA D08, CETOP8, DIN NG25, Low Flow, D03 Pilot
Maximum Flow Rate	160 GPM
