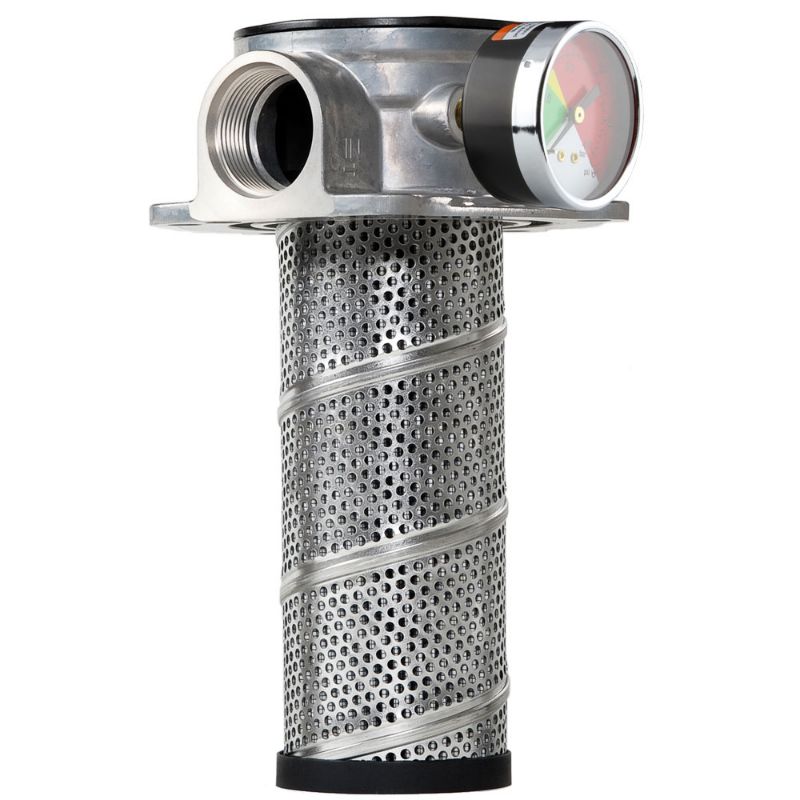

Parker PT4210QBGGS161 - Low Pressure Tank Top Filters PT Series

Parker’s PT Series Return Line Filters combine high efficiency Microglass filtration with low cost installation in a patented design. Allowable operating pressure of 150 PSI/10.3 Bar and capable of flows up to 50 GPM/180 LPM depending on viscosity.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. PT4210QBGGS161

$206.25

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Operating Temperature	107.0 °C
Compatible Element	936748	Pressure Rating	10.3 bar
Division	Engine Mobile Hydraulic and Fuel Filtration Division	Seal Material	Nitrile
Options	Tank Mounted	Flow Rate	189.3 L/min
Bypass Valve Pressure Rating	25.0 psid	Mounting Style	Tank Mounted
Indicator Pressure Setting	No Indicator	Filter Element Type	10Q Microglass
Indicator Type	Pressure gauge, 25 psi	Weight	0.98 kg
Housing Material	Aluminum	For Fluid Type	Mineral, Petroleum and Polyalphaolefin (PAO) based fluids
Port Connection Type	SAE-16	Bypass Valve Pressure Rating	25 psid (1.7 bar)
Options	None	Flow Rate	50 gpm (189.3 lpm)
Filter Element Type	10Q Microglass	Seal Material	Nitrile
Indicator Type	Pressure gauge, 25 psi
