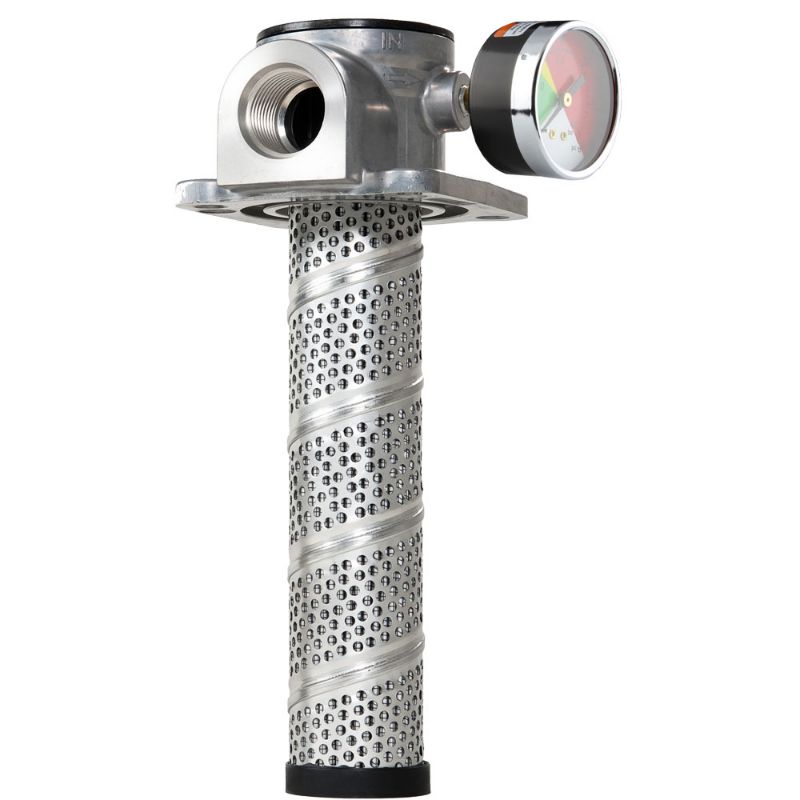

Parker PT2205QBGGS161 - Low Pressure Tank Top Filters PT Series

Parker’s PT Series Return Line Filters combine high efficiency Microglass filtration with low cost installation in a patented design. Allowable operating pressure of 150 PSI/10.3 Bar and capable of flows up to 50 GPM/180 LPM depending on viscosity.

Availability:	Quote Required
Partner Available:	1 Limited Stock

Brand Parker

Part No. PT2205QBGGS161

$184.44

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Pressure Rating	15 psi
Weight	0.49 kg	Seal Material	Nitrile
Division	Engine Mobile Hydraulic and Fuel Filtration Division	Maximum Operating Temperature	107.0 °C
Options	Tank Mounted	Filter Element Type	05Q Microglass
Flow Rate	94.6 L/min	Mounting Style	Tank Mounted
Bypass Valve Pressure Rating	25.0 psid	Indicator Pressure Setting	No Indicator
Indicator Type	Pressure gauge, 25 psi	Housing Material	Aluminum
Compatible Element	936755	For Fluid Type	Mineral, Petroleum and Polyalphaolefin (PAO) based fluids
Flow Rate	25 gpm (94.6 lpm)	Port Connection Type	SAE-16
Options	None	Bypass Valve Pressure Rating	25 psid (1.7 bar)
Filter Element Type	05Q Microglass	Seal Material	Nitrile
Indicator Type	Pressure gauge, 25 psi
