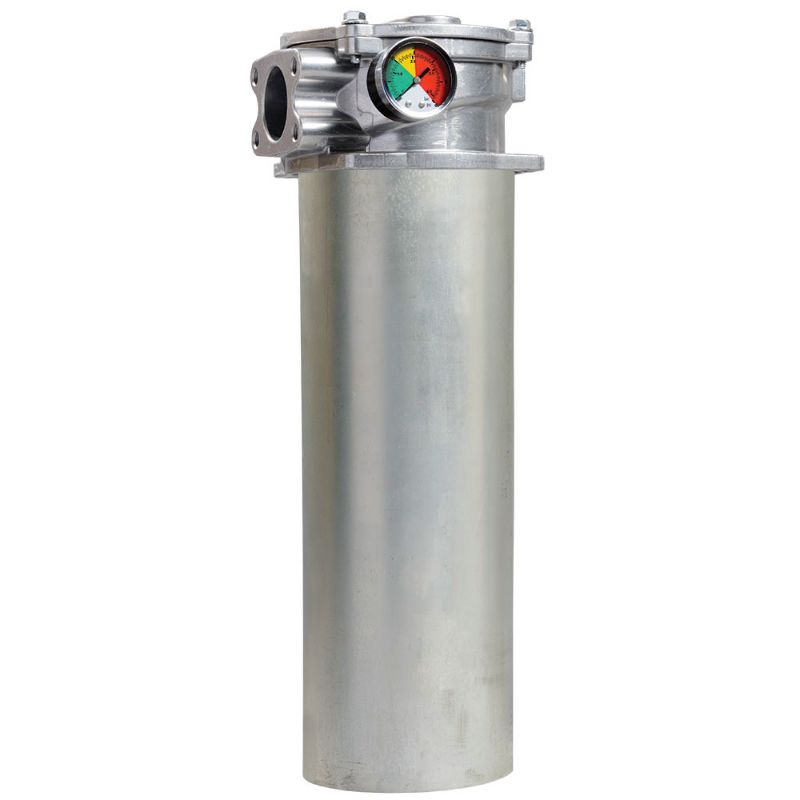

Parker GLF3210QBGI2S24D - Low Pressure Tank Top Filters GLF Series

Parker's GLF Series Return Line Filters combine high efficiency Microglass filtration with low cost installation in a patented design. Allowable operating pressure of 150 PSI/10.3 Bar and capable of flows up to 230 GPM/871 LPM depending on viscosity.

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. GLF3210QBGI2S24D

$683.08/each

Products specifications

Attribute name	Attribute value
UOM	EA	Weight	3.63 kg
Maximum Operating Temperature	107 °C	Options	Drop Tube
Indicator Pressure Setting	28 psi	For Fluid Type	Mineral, Petroleum and Polyalphaolefin (PAO) based fluids
Pressure Rating	10 bar	Filter Element Type	10Q Microglass
Division	Engine Mobile Hydraulic and Fuel Filtration Division	Mounting Type	Tank Mounted
Indicator Type	Tri-color Pressure Gauge	Port Type	Dual SAE-24
Seal Material	Nitrile	Compatible Element	945900Q
Bypass Valve Pressure Rating	2.4 bar	Housing Material	Cast Aluminum Alloy
Flow Rate	225 Gal/min	Seal Material	Nitrile
Filter Element	10Q Microglass	Bypass Valve (psi)	35
Options	Drop Tube	Indicator Type	Tri-color Pressure Gauge
Port Connection Type	Dual SAE-24	Flow Rate (gpm)	225
