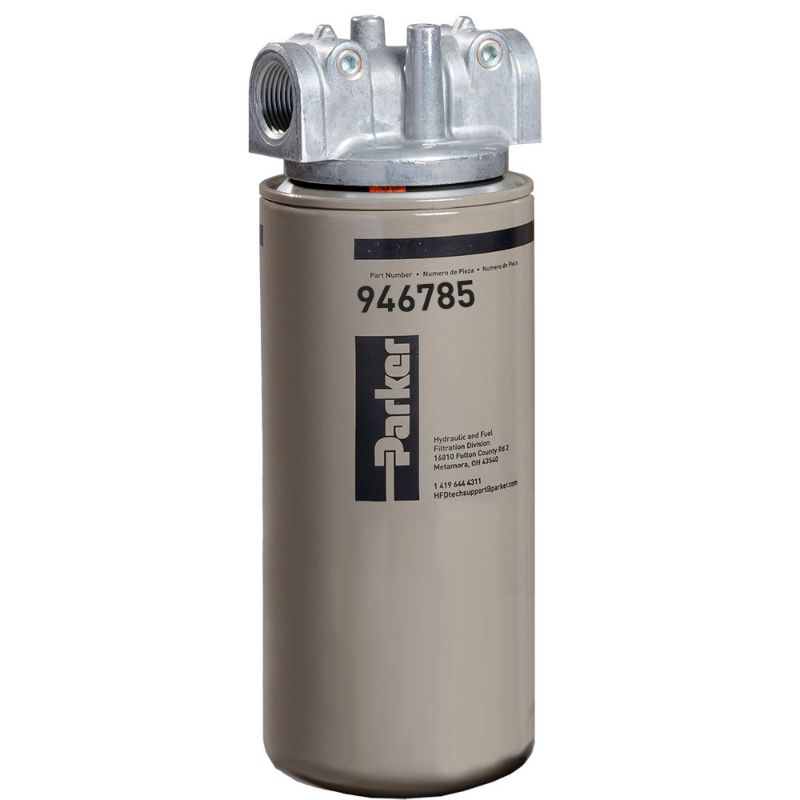

Parker 12AT210CBPGN12H - Low Pressure Spin-On Filters 12AT/50AT Series

Name: Parker 12AT210CBPGN12H - Low Pressure Spin-On Filters 12AT/50AT Series
SKU: 12AT210CBPGN12H
Price: 60.94 USD
Availability: LimitedAvailability

Our rebranded Spin-On Low Pressure Filter Series are cost effective yet uncompromising in performance and quality. Max allowable operating pressure of 150 PSI/10.3 Bar and capable of flows up to 50 GPM/190 LPM depending on viscosity.

Availability:

2 Limited Stock

Richmond, VA

Partner Available:

1 Limited Stock

Brand Parker

Part No. 12AT210CBPGN12H

$60.94

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Mounting Type	Inline
Seal Material	Nitrile	Division	Engine Mobile Hydraulic and Fuel Filtration Division
Maximum Operating Temperature	107	Options	Inlet & Outlet, both sides (all ports drilled & tapped)
Port Type	3/4" NPT ports	For Fluid Type	Suitable for use with mineral and vegetable oils, and some synthetic oils. For other fluids, please e-mail Technical Support at [email protected] or call 800-253-1258.
Indicator Type	Sold separately	Pressure Rating	10.3
Housing Material	Low Carbon Steel	Filter Element Type	Canister
Indicator Pressure Setting	1.4	Bypass Valve Pressure Rating	25
Weight	1.22	Flow Rate	94
Compatible Element	946785	Seal Material	Nitrile
Options	Inlet & Outlet, both sides (all ports drilled & tapped)	Filter Element	10 micron cellulose
Indicator Type	Sold separately	Bypass Valve (psi)	25
Port Connection Type	3/4" NPT ports	Flow Rate (gpm)	25
