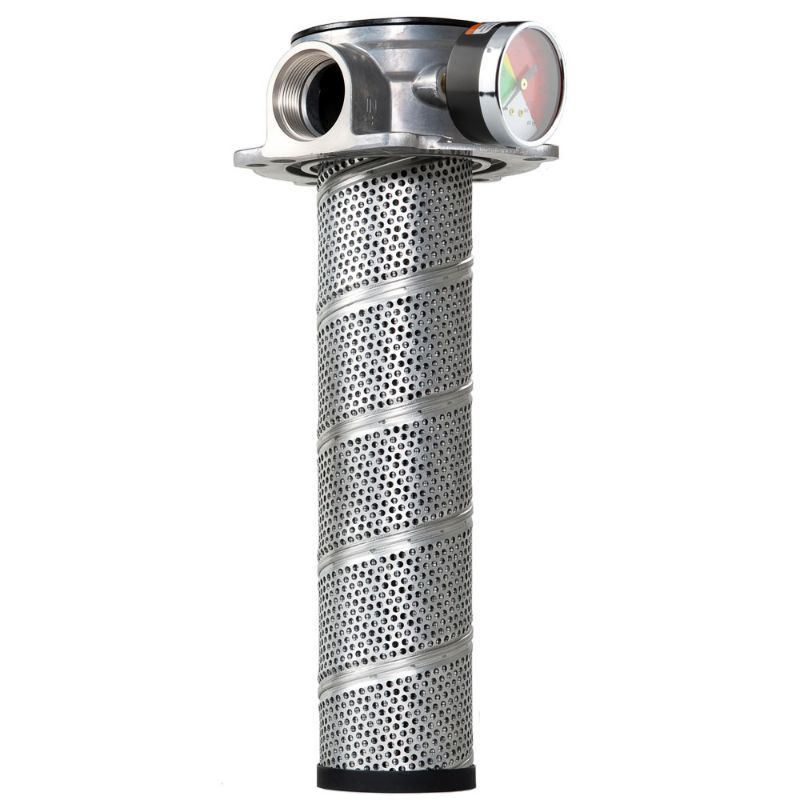

Parker PT4310QBGGS201 - Low Pressure Tank Top Filters PT Series

Parker’s PT Series Return Line Filters combine high efficiency Microglass filtration with low cost installation in a patented design. Allowable operating pressure of 150 PSI/10.3 Bar and capable of flows up to 50 GPM/180 LPM depending on viscosity.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. PT4310QBGGS201

$223.78

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Filter Element Type	10Q Microglass
Indicator Type	Pressure gauge, 25 psi	Flow Rate	55.0 Gal/min
For Fluid Type	Mineral, Petroleum and Polyalphaolefin (PAO) based fluids	Housing Material	Aluminum
Pressure Rating	15 psi	Bypass Valve Pressure Rating	1.7 bar
Division	Engine Mobile Hydraulic and Fuel Filtration Division	Maximum Operating Temperature	107.0 °C
Seal Material	Nitrile	Weight	1.21 kg
Options	Tank Mounted	Mounting Style	Tank Mounted
Indicator Pressure Setting	No Indicator	Compatible Element	936878
Seal Material	Nitrile	Indicator Type	Pressure gauge, 25 psi
Flow Rate	55 gpm (208.2 lpm)	Bypass Valve Pressure Rating	25 psid (1.7 bar)
Options	None	Port Connection Type	SAE-20
Filter Element Type	10Q Microglass
