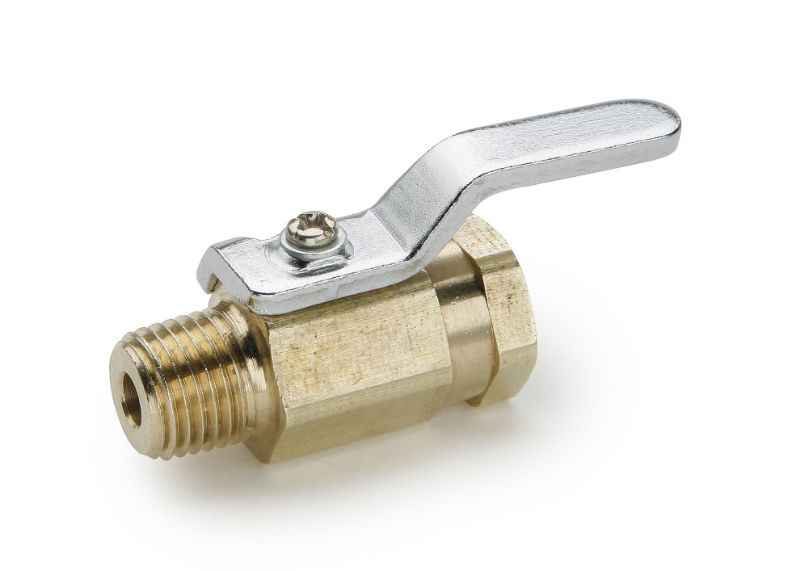

Parker MV708-2 - Industrial Brass Ball Valves

Parker's brass ball valves are designed to provide years of service at an economical price and are available in various end configurations and options.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. MV708-2

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Fluid System Connectors Division	Body Material	Brass
Seal Material	PTFE	Maximum Operating Temperature	300 °F
Connection Type	NPT	Maximum Operating Pressure	34 bar
Minimum Operating Temperature	-35 °F	Connection Size	1/8 inch
Maximum Flow Rate	n/a	Shape	In-Line
Actuation Type	Manual	Seat Material	PTFE
Handle Type	Lever	Operation Type	n/a
Product Type	Mini Ball Valve	Ball Material	Chrome Plated Brass
Function	2-Way, Normally Closed, Normally Open	Configuration	Male-Female Ports
Orifice Size	.18 inch	Mounting Type	Panel, In-Line
Connection 2 Thread Size (inch)	1/8	Vented	No
Connection 2 Solder O.D. (inch)	na	Maximum Working Pressure (psi)	500
Locking Mechanism	Non-Locking	Connection 1 Thread Size (inch)	1/8
Connection 2 Thread Style	Female Pipe	Style	Female/Male
Handle	Chrome Plated Steel	Connection 1 Thread Style	Male Pipe
Shape	In Line	Connection 1 Solder O.D. (inch)	na
