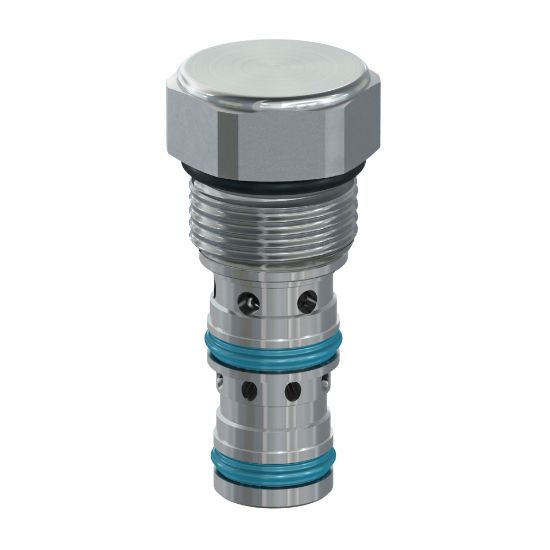

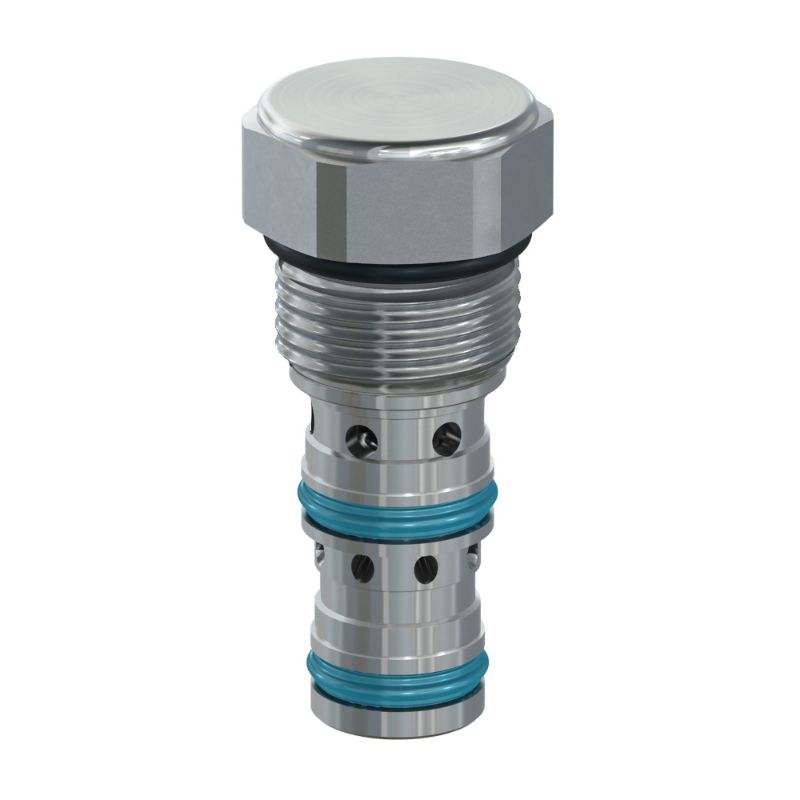

Parker CPH104P - Single Pilot Operated, Pilot to Open Check Valves

Name: Parker CPH104P - Single Pilot Operated, Pilot to Open Check Valves
SKU: CPH104P
Price: 55.00 USD
Availability: InStock

Parker’s P.O. check valve assemblies allow flow up to 150 lpm (40 gpm) with pressures up to 420 bar (6,000 psi). Return flow can be enable by an external pilot supply, which shifts the internal poppet into an open position.

AFP Availability:

3 In Stock

Richmond, VA

Partner Available:

65 In Stock

Quantities sourced from Partner Network may incur an upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

Brand Parker

Part No. CPH104P

$55.00/each

Qty:

Products specifications

Attribute name	Attribute value
For Fluid Type	Synthetic Hydraulic Fluids	Division	Hydraulic Cartridge Systems Division
Cavity Size	C10-3	Maximum Operating Temperature	93 °C
Minimum Operating Temperature	-37 °C	Installation Torque	65 Nm
Operating Temperature	-35 to 200 °F	Division	Hydraulic Systems Division
Pilot Location	1	Maximum Flow Rate	30 L/min
Leak Rate	2	Body Material	n/a
Actuation Type	Pilot Operated	Seal Material	D-Ring (Standard)
Weight	0.2 lb	Flow Rate	n/a
Function	Single Pilot to Open Check	Pilot Pressure Ratio	4:1
Maximum Inlet Pressure Rating	5000 psi	Cracking Pressure	1.4 bar
Maximum Operating Pressure	5000 psi	Filter Efficiency Rating	ISO 4406 18/16/13
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Valve Material	Steel
Flow Direction	2-3 Free Flow	Cracking Pressure	20 PSI, 1.4 BAR
Seal Material	D-Ring (Standard)	Maximum Flow Rate	8 GAL/MIN, 30 L/MIN
