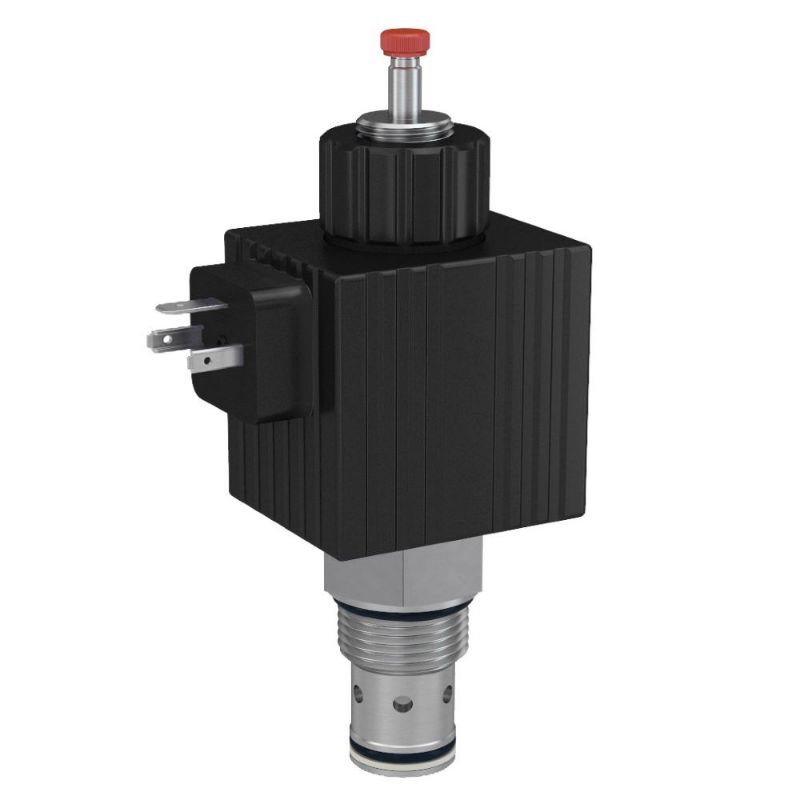

Parker DF122C14 - 2 Way Flow Control Proportional Valves

Parker offers an extensive range of 2-way flow control proportional valves through the use of Current Controlled Pulse Width Modulation (PWM) valve drivers with flow capabilities up to 227 lpm (60 gpm) and pressures as high as 210 bar (3000 psi).

Availability:	Quote Required
Partner Available:	10 In Stock

Brand Parker

Part No. DF122C14

$240.75

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Weight	0.7 lb
Coil Nut Tightening Torque	Finger Tight	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Flow Rate	53 L/min	Actuation Type	Electrical, Manual
Minimum Operating Temperature	-34 °C	Flow Rate Accuracy	N/A
Connection Size	n/a	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Frequency	100-400 Hz	Maximum Operating Temperature	+250 °F
Operating Temperature	-30 to +250 °F	Maximum Operating Pressure	3000 psi
Configuration	Normally Closed	Variation of Closing Point	N/A
Flow Direction	Side to Nose (2 - 1)	Minimum Pressure Differential	N/A psi
Hysteresis	4%	Override Functionality	Push Type w/Extended Rod
Function	Proportional Flow Control/Regulator	Operation Type	Solenoid operated, Manually operated
Installation Torque	21 lb-ft	Leak Rate	250 @ 3000 PSI (210 BAR) cm3/min
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Maximum Flow Rate	14.0 Gal/min
Power Consumption	42 W	Coil Type	1" DS Coil High Watt
Current	Max: 3.53 @ 12 VDC, 1.79 @ 24 VDC A	Variation of Opening Point	20%-30% of Input Signal
Body Material	n/a	Connection Type	n/a
Cavity Size	C12-2	Valve Material	All parts steel. All operating parts hardened steel
Maximum Inlet Pressure Rating	210 bar	Division	Hydraulic Systems Division
Division	Hydraulic Cartridge Systems Division	Seal Material	Nitrile
Wire Mesh Screen Included	No	Seal Material	Nitrile
Actuation Type	Electrical, Manual	Configuration	Normally Closed
Flow Rate	14 GAL/MIN, 53 L/MIN
