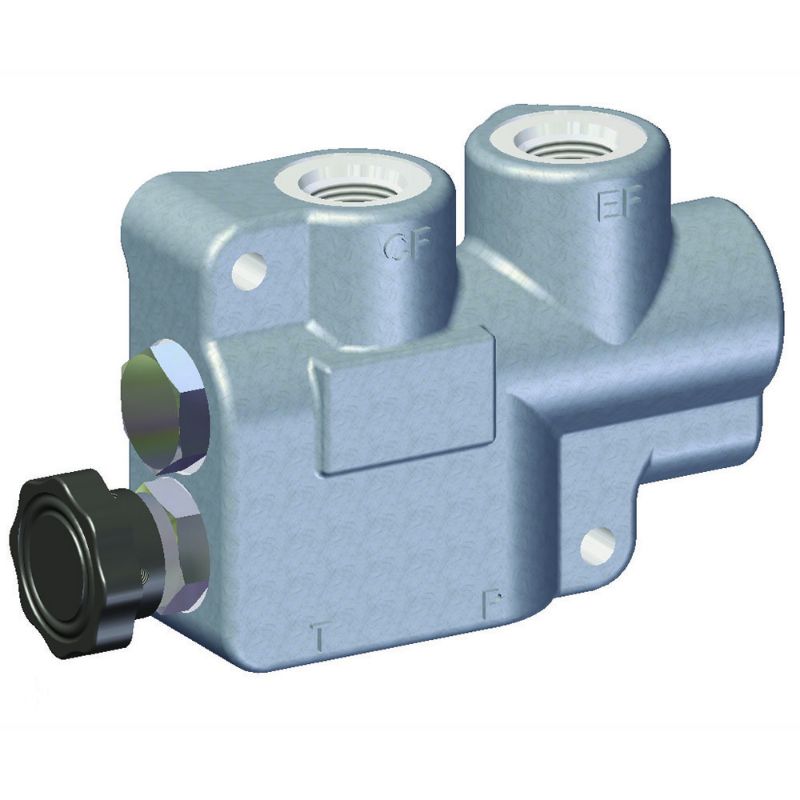

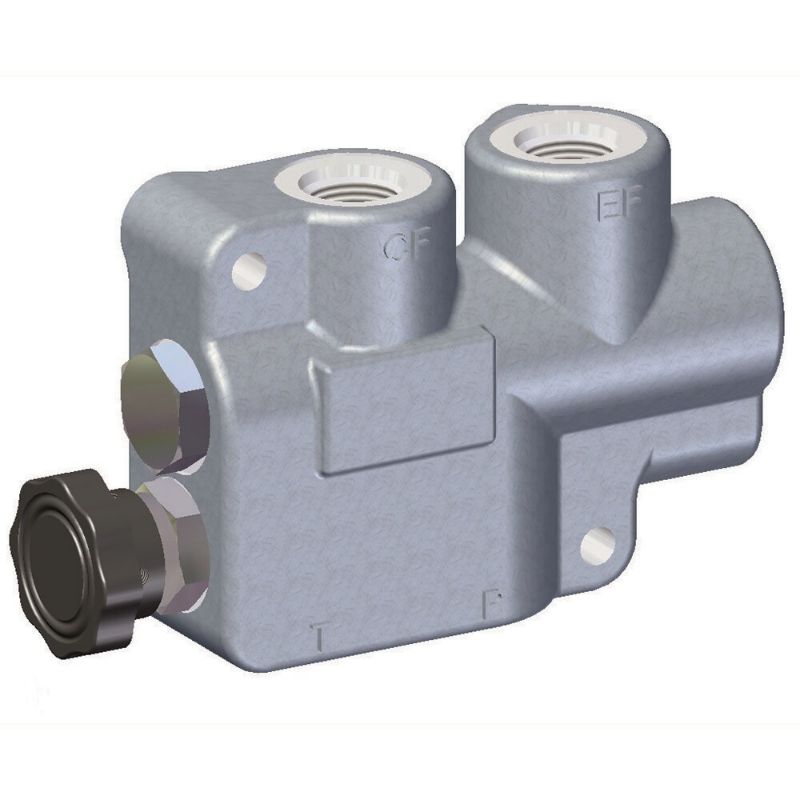

Parker CFDA-10 - Pressure Compensated By-Pass Type Flow Control Valve - CFDA Series

Parker’s CFDA Adjustable Flow Divider is designed for providing a 0-15 GPM controlled flow source. It is typically applied for applications where frequent adjustments to the controlled flow rate are required.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. CFDA-10

$585.75

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Body Material	High Strength Cast Iron
Division	Hydraulic Valve Systems Division	Connection Type	SAE
Minimum Operating Temperature	-40 °F	Maximum Flow Rate	n/a
Maximum Operating Temperature	200 °F	Weight	8 lb
Maximum Operating Pressure	2500 psi	Configuration	Inline
Connection Size	10.0 mm	Function	Flow Control
Flow Rate	Adjustable	Actuation Type	Manual
Seal Material	Nitrile	Maximum Operating Pressure	2500
Port Size	SAE-10 (3/4-16 UNF)
