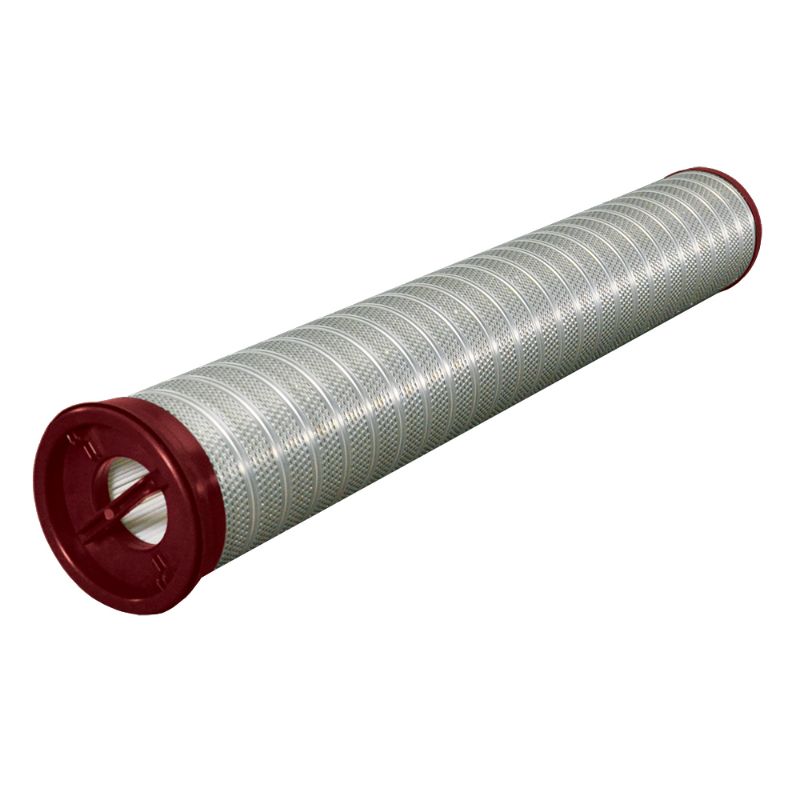

Parker 13728 - XTREAMPURE® XP Liquid Filter Cartridge

XtreamPure® Series XP high flow rate filter cartridge for contaminant removal used in a variety of liquid filtration applications. Several styles to handle any temperature, compatibility & cleanliness.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 13728

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Industrial Process Filtration Division	Brand	PECO
Division	Industrial Process Filtration Division	Industry	Oil and Gas
Technology	Filtration	Product Type	Filter Cartridge
Flow Direction	Inside-to-Outside	Quantity per Box	1
Nominal Inside Diameter	3 inch	Maximum Pressure Differential	50
Changeout Pressure Differential	35 psid	Nominal Outside Diameter	6.3 inch
Flow Direction	Inside-to-Outside	Product Series	XP-E
Body Material	Tin-Plated Steel	Model Number	ELMT XP-E-4200B
Core Material	N/A	Micron Rating	20
Seal Material	Buna-N	Filter Material	Polyester
Cartridge Length	40.5"	End Cap Material	Nylon
End Cap Configuration	SOE - Open top w/ handle outer chevron-style seal, closed bottom	Nominal Outside Diameter	6.3"
Maximum Operating Temperature	240 F	pH Range	3-9
Filter Construction	Pleated	Nominal Inside Diameter	3"
Maximum Pressure Differential	50 psid	Changeout Pressure Differential	35 PSID
