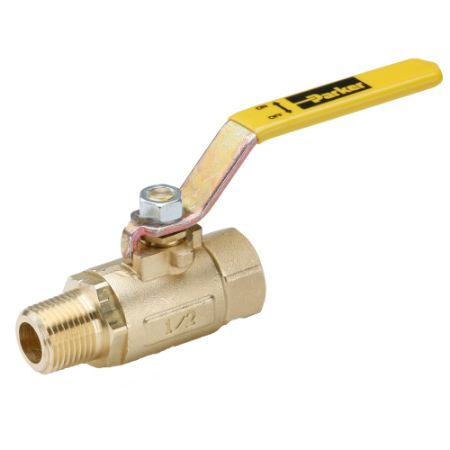

Industrial Brass Ball Valves
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
AFP Industries stocks this Parker series for quote or purchase, with interchange support and southeast warehouse availability.
Parker's industrial brass ball valves are designed to provide years of service at an economical price. Manufactured for commercial and general industrial applications these valves offer increased performance over lightweight throwaway valves. These ball valves are intended for use in the fully open or closed positions. Throttling of the valve may result in premature seal failure and/or inability to turn the valve handle.
Parker's brass ball valves are available in a range of styles including:
• Female x Female
• Female x Male
• Panel Mount
• Female Straight Thread x Female Straight Thread
• Solder ends
• Female Straight Thread x Male Straight Thread
• 3 and 4 Way Diversion
• 90? Valves
• Beaded Hose Barb End
• 6 Port Valve
Options for the brass ball valves include:
• Nickel Plating
• Venting
• Padlocking Handles
• Stainless Steel Ball & Stem
• Stainless Steel Handle & Nut
• Tee Handle
• Oval Handle
• Plain Yellow Vinyl Handle Cover
• Actuator Kit
Markets:
• Heavy Duty Truck
• Mobile
• Agriculture
• Construction
• Industrial
Features/Benefits:
• Forged Body for Added Strength
• Chrome Plated Brass Ball
• PTFE Seats and Seals
• Wide Range of Styles
• Quarter Turn Handle Provides Positive Stop Action for Full Shutoff
Applications:
• Fuel Line Shutoffs for Gasoline and Diesel Equipment
• Air Service lines
• Water Service Lines on Capital Equipment
• Plant Design Plumbing Requiring Total Shutoff Capability
Custom configurations and sizes are available upon request. Contact us for additional information.
| Action | Part No. | Availability | Partner Available | Price | UOM | Seat Material | Configuration | Handle Type | Function | Actuation Type | Orifice Size | Maximum Operating Pressure | Seal Material | Connection Size | Maximum Flow Rate | Operation Type | Body Material | Mounting Type | Shape | Minimum Operating Temperature | Product Type | Connection Type | Division | Maximum Operating Temperature | Ball Material | Connection 2 Thread Size (inch) | Vented | Connection 2 Solder O.D. (inch) | Maximum Working Pressure (psi) | Locking Mechanism | Connection 1 Thread Size (inch) | Connection 2 Thread Style | Style | Handle | Connection 1 Thread Style | Shape | Connection 1 Solder O.D. (inch) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MV708-4 | 30 In Stock | 223 In Stock | $18.62/each | EA | PTFE | Male-Female Ports | Lever | 2-Way, Normally Closed, Normally Open | Manual | .21 inch | 34 bar | PTFE | 1/4 inch | n/a | n/a | Brass | Panel, In-Line | In-Line | -37 °C | Mini Ball Valve | NPT | Fluid System Connectors Division | 148 °C | Chrome Plated Brass | 1/4 | No | na | 500 | Non-Locking | 1/4 | Female Pipe | Female/Male | Chrome Plated Steel | Male Pipe | In Line | na | |
| MV709-4 | 7 In Stock | 25 In Stock | $20.12/each | EA | PTFE | Male-Female Ports | Lever | 2-Way, Normally Closed, Normally Open | Manual | .21 inch | 34 bar | PTFE | 1/4 inch | n/a | n/a | Brass | Panel, In-Line | In-Line | -35 °F | Mini Ball Valve | NPT | Fluid System Connectors Division | 300 °F | Chrome Plated Brass | 1/4 | No | na | 500 | Non-Locking | 1/4 | Female Pipe | Female to Female | Chrome Plated Steel | Female Pipe | In Line | na | |
| V500P-12 | 104 In Stock | 338 In Stock | $48.35/each | EA | PTFE | Female-Female PTF Ports | Lever | 2-Way, Normally Closed, Normally Open | Manual | .69 | 41 | PTFE | 3/4 | 25 | n/a | Brass | Panel, In-Line | In-Line | 0 | Brass Series 500 Ball Valve | NPT, Straight Thread Solder | Fluid System Connectors Division | 350 | Chrome Plated Brass | 3/4 | No | na | 600 | Non-Locking | 3/4 | Female Pipe | Female to Female | Steel Lever | Female Pipe | In Line | na | |
| V500P-16 | 54 In Stock | 328 In Stock | $61.17/each | EA | PTFE | Female-Female PTF Ports | Lever | 2-Way, Normally Closed, Normally Open | Manual | .88 | 41 | PTFE | 1 | 35 | n/a | Brass | Panel, In-Line | In-Line | 0 | Brass Series 500 Ball Valve | NPT, Straight Thread Solder | Fluid System Connectors Division | 350 | Chrome Plated Brass | 1 | No | na | 600 | Non-Locking | 1 | Female Pipe | Female to Female | Steel Lever | Female Pipe | In Line | na | |
| V500P-20 | 34 In Stock | 122 In Stock | $103.92/each | EA | PTFE | Female-Female PTF Ports | Lever | 2-Way, Normally Closed, Normally Open | Manual | 1.18 | 41 | PTFE | 1 1/4 | 57 | n/a | Brass | Panel, In-Line | In-Line | 0 | Brass Series 500 Ball Valve | NPT, Straight Thread Solder | Fluid System Connectors Division | 350 | Chrome Plated Brass | 1 1/4 | No | na | 600 | Non-Locking | 1 1/4 | Female Pipe | Female to Female | Steel Lever | Female Pipe | In Line | na | |
| V500P-24 | 23 In Stock | 63 In Stock | $136.97/each | EA | PTFE | Female-Female PTF Ports | Lever | 2-Way, Normally Closed, Normally Open | Manual | 1.50 | 41 | PTFE | 1 1/2 | 92 | n/a | Brass | Panel, In-Line | In-Line | 0 | Brass Series 500 Ball Valve | NPT, Straight Thread Solder | Fluid System Connectors Division | 350 | Chrome Plated Brass | 1 1/2 | No | na | 600 | Non-Locking | 1 1/2 | Female Pipe | Female to Female | Steel Lever | Female Pipe | In Line | na | |
| V500P-32 | 24 In Stock | 66 In Stock | $203.46/each | EA | PTFE | Female-Female PTF Ports | Lever | 2-Way, Normally Closed, Normally Open | Manual | 1.89 | 41 | PTFE | 2 | 224 | n/a | Brass | Panel, In-Line | In-Line | 0 | Brass Series 500 Ball Valve | NPT, Straight Thread Solder | Fluid System Connectors Division | 350 | Chrome Plated Brass | 2 | No | na | 600 | Non-Locking | 2 | Female Pipe | Female to Female | Steel Lever | Female Pipe | In Line | na | |
| V500P-4 | 85 In Stock | 474 In Stock | $29.27/each | EA | PTFE | Female-Female PTF Ports | Lever | 2-Way, Normally Closed, Normally Open | Manual | .38 | 41 | PTFE | 1/4 | 4 | n/a | Brass | Panel, In-Line | In-Line | 0 | Brass Series 500 Ball Valve | NPT, Straight Thread Solder | Fluid System Connectors Division | 350 | Chrome Plated Brass | 1/4 | No | na | 600 | Non-Locking | 1/4 | Female Pipe | Female to Female | Steel Lever | Female Pipe | In Line | na | |
| V500P-6 | 78 In Stock | 729 In Stock | $29.27/each | EA | PTFE | Female-Female PTF Ports | Lever | 2-Way, Normally Closed, Normally Open | Manual | .38 | 41 | PTFE | 3/8 | 5.8 | n/a | Brass | Panel, In-Line | In-Line | 0 | Brass Series 500 Ball Valve | NPT, Straight Thread Solder | Fluid System Connectors Division | 350 | Chrome Plated Brass | 3/8 | No | na | 600 | Non-Locking | 3/8 | Female Pipe | Female to Female | Steel Lever | Female Pipe | In Line | na | |
| V500P-8 | 107 In Stock | 335 In Stock | $29.28/each | EA | PTFE | Female-Female PTF Ports | Lever | 2-Way, Normally Closed, Normally Open | Manual | .50 | 41 | PTFE | 1/2 | 12 | n/a | Brass | Panel, In-Line | In-Line | 0 | Brass Series 500 Ball Valve | NPT, Straight Thread Solder | Fluid System Connectors Division | 350 | Chrome Plated Brass | 3/8 | No | na | 600 | Non-Locking | 3/8 | Female Pipe | Female to Female | Steel Lever | Female Pipe | In Line | na | |
| V500P-8-02 | Quote Required | 82 In Stock | $38.79/each | EA | PTFE | Female-Female PTF Ports | Stainless Steel Handle & Nut | 2-Way, Normally Closed, Normally Open | Manual | .50 | 41 | PTFE | 1/2 | 12 | n/a | Brass | Panel, In-Line | In-Line | 0 | Brass Series 500 Ball Valve | NPT, Straight Thread Solder | Fluid System Connectors Division | 350 | Chrome Plated Brass | 1/2 | No | na | 600 | Non-Locking | 1/2 | Female Pipe | Female to Female | Stainless Steel Handle | Female Pipe | In Line | na | |
| V500P-8-04 | Quote Required | 26 In Stock | $33.83/each | EA | PTFE | Female-Female PTF Ports | Tee | 2-Way, Normally Closed, Normally Open | Manual | .50 | 41 | PTFE | 1/2 | 12 | n/a | Brass | Panel, In-Line | In-Line | 0 | Brass Series 500 Ball Valve | NPT, Straight Thread Solder | Fluid System Connectors Division | 350 | Chrome Plated Brass | 1/2 | No | na | 600 | Non-Locking | 1/2 | Female Pipe | Female to Female | Tee Handle | Female Pipe | In Line | na | |
| V501P-12 | 16 In Stock | 57 In Stock | $57.46/each | EA | PTFE | Male-Female PTF Ports | Lever | 2-Way, Normally Closed, Normally Open | Manual | .68 inch | 41 bar | PTFE | 3/4 inch | 25 Cv | n/a | Brass | Panel, In-Line | In-Line | 0 °F | Brass Series 501 Ball Valve | NPT, Straight Thread Solder | Fluid System Connectors Division | 176 °C | Chrome Plated Brass | 3/4 | No | na | 600 | Non-Locking | 3/4 | Female Pipe | Female/Male | Steel Lever | Male Pipe | In Line | na | |
| V501P-12-04 | Quote Required | $77.04/each | EA | PTFE | Male-Female PTF Ports | Tee | 2-Way, Normally Closed, Normally Open | Manual | .68 | 41 | PTFE | 3/4 | 25 | n/a | Brass | Panel, In-Line | In-Line | 0 | Brass Series 501 Ball Valve | NPT, Straight Thread Solder | Fluid System Connectors Division | 350 | Chrome Plated Brass | 3/4 | No | na | 600 | Non-Locking | 3/4 | Female Pipe | Female/Male | Steel Tee | Male Pipe | In Line | na | ||
| V501P-12-21 | Quote Required | $74.98/each | EA | PTFE | Male-Female PTF Ports | Oval | 2-Way, Normally Closed, Normally Open | Manual | .68 | 41 | PTFE | 3/4 | 25 | n/a | Brass | Panel, In-Line | In-Line | 0 | Brass Series 501 Ball Valve | NPT, Straight Thread Solder | Fluid System Connectors Division | 350 | Chrome Plated Brass | 3/4 | No | na | 600 | Non-Locking | 3/4 | Female Pipe | Female/Male | Steel Oval | Male Pipe | In Line | na | ||
| V501P-16 | Quote Required | 14 In Stock | $84.42/each | EA | PTFE | Male-Female PTF Ports | Lever | 2-Way, Normally Closed, Normally Open | Manual | .88 | 41 | PTFE | 1 | 35 | n/a | Brass | Panel, In-Line | In-Line | 0 | Brass Series 501 Ball Valve | NPT, Straight Thread Solder | Fluid System Connectors Division | 350 | Chrome Plated Brass | 1 | No | na | 600 | Non-Locking | 1 | Female Pipe | Female/Male | Steel Lever | Male Pipe | In Line | na | |
| V501P-4 | 11 In Stock | 63 In Stock | $39.39/each | EA | PTFE | Male-Female PTF Ports | Lever | 2-Way, Normally Closed, Normally Open | Manual | .34 | 41 | PTFE | 1/4 | 6.3 | n/a | Brass | Panel, In-Line | In-Line | 0 | Brass Series 501 Ball Valve | NPT, Straight Thread Solder | Fluid System Connectors Division | 350 | Chrome Plated Brass | 1/4 | No | na | 600 | Non-Locking | 1/4 | Female Pipe | Female/Male | Steel Lever | Male Pipe | In Line | na | |
| V501P-6 | 7 In Stock | 16 In Stock | $37.76/each | EA | PTFE | Male-Female PTF Ports | Lever | 2-Way, Normally Closed, Normally Open | Manual | .38 | 41 | PTFE | 3/8 | 5.7 | n/a | Brass | Panel, In-Line | In-Line | 0 | Brass Series 501 Ball Valve | NPT, Straight Thread Solder | Fluid System Connectors Division | 350 | Chrome Plated Brass | 3/8 | No | na | 600 | Non-Locking | 3/8 | Female Pipe | Female/Male | Steel Lever | Male Pipe | In Line | na | |
| V501P-8 | 10 In Stock | 350 In Stock | $35.94/each | EA | PTFE | 41 | Brass | 0 | NPT, Straight Thread Solder | Fluid System Connectors Division | 350 | Chrome Plated Brass | 1/2 | No | na | 600 | Non-Locking | 1/2 | Female Pipe | Female/Male | Steel Lever | Male Pipe | In Line | na | |||||||||||||
| V501P-8-04 | Quote Required | 63 In Stock | $35.20/each | EA | PTFE | 41 | Brass | 0 | NPT, Straight Thread Solder | Fluid System Connectors Division | 350 | Chrome Plated Brass | 1/2 | No | na | 600 | Non-Locking | 1/2 | Female Pipe | Female/Male | Steel Tee | Male Pipe | In Line | na |
